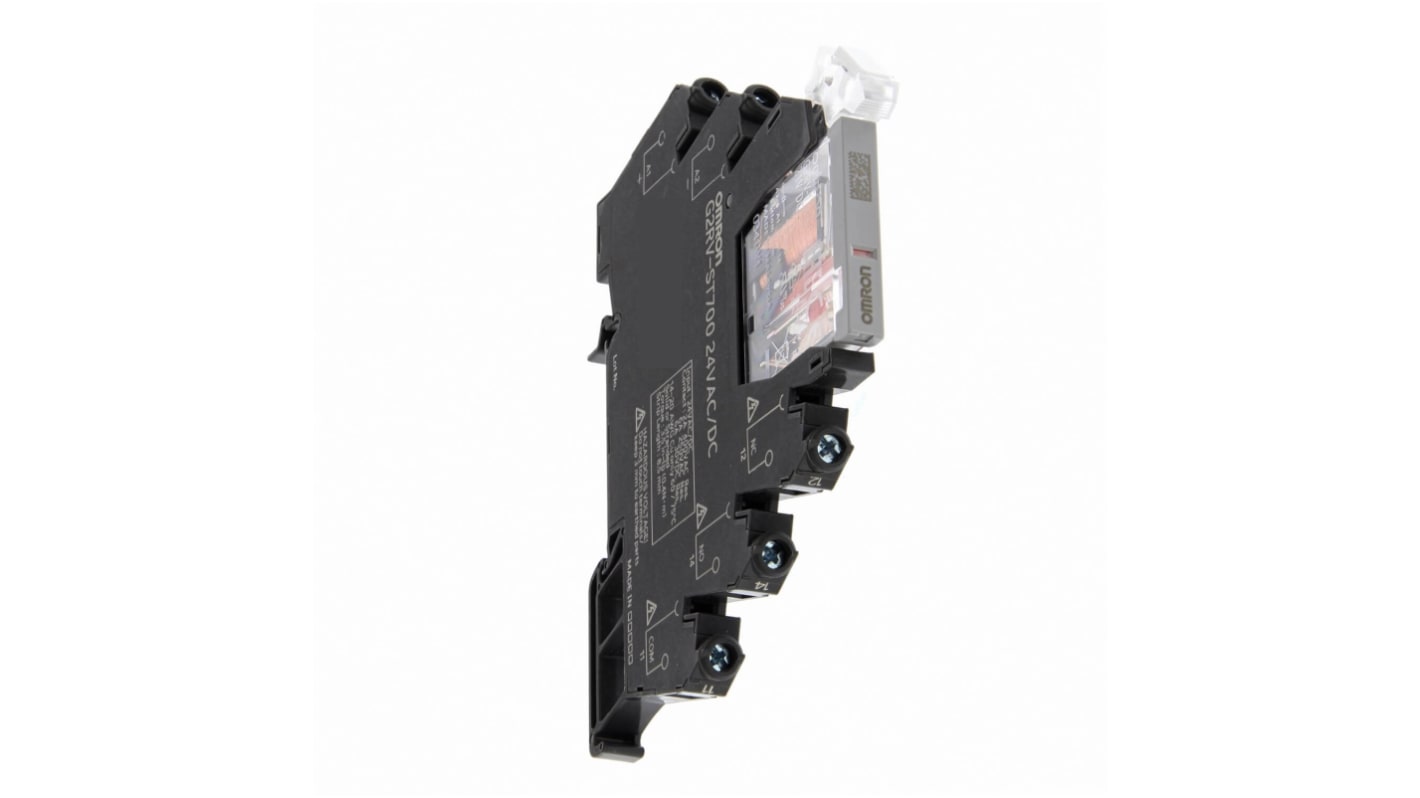

Omron G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 50mA Load

RS Stock No.:: 271-1860
Mfr. Part No.:: G2RV-ST700-AP DC24
Brand:: Omron

Omron G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 50mA Load

Price Each**

£12.74

(exc. VAT)

£15.29

(inc. VAT)

Available to back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£12.74

**price indicative

RS Stock No.:: 271-1860
Mfr. Part No.:: G2RV-ST700-AP DC24
Brand:: Omron

Datasheet - G2RV-ST700-AP 24VDC
Brochure - Industrial Relays

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Number of Poles	1
Load Current Rating	50mA
Maximum Input Voltage	26.4V
Load Voltage Rating	30V
Minimum Input Voltage	21.6V
Switching Voltage	400V ac
Terminal Type	Screw
Depth	6.2mm
Height	90mm
Length	88mm
Series	G2RV-ST
Contact Material	Ag Alloy
Input Current	13.5mA
Relay Type	Electro Mechanical
Relay Switching Classification	Electromechanical Relay
Standards Met	CE, CULus
Input Voltage Range	21.6-26.4V
Special Features	LED, Mechanical Indicator, Transparent Case
Input Resistance	1.8kΩ
Dimensions	88 x 90 x 6.2mm
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-40°C
Accessory Type	Relay Module
For Use With	Industrial Control Equipment
Operating Temperature Range	-40 → 55°C
Turn On Time	20ms
Life	5000000 cycles
Turn Off Time	20 (For DC)/40(For AC)ms
Control Resistance	100MΩ

Omron G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 50mA Load

FREE delivery for orders over £50.00

Omron G2RV-ST Series Electromechanical Interface Relay, 100 MΩ Control Resistance, 13.5 mA Input Current - G2RV-ST700-AP DC24

Features & Benefits

Applications

What is the coil voltage of this relay?

Can I use this relay for motor control applications?

What load current can this relay handle?
