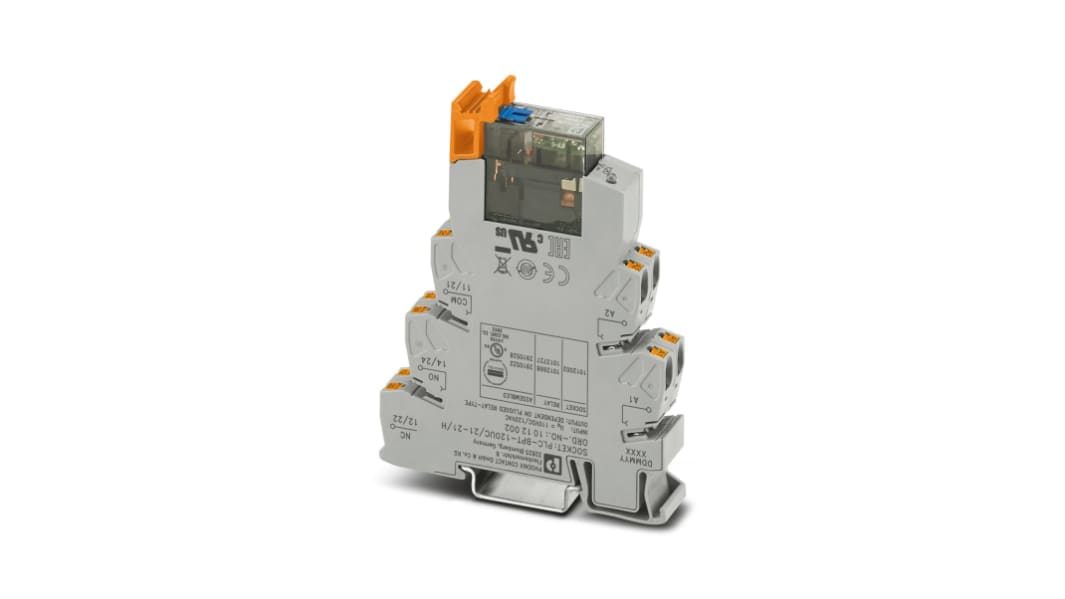

Phoenix Contact PLC-INTERFACE Series Relay Module, DIN Rail, 110V ac/dc, 120 V ac/dc Coil, DPDT, 5mA
- RS Stock No.:
- 270-9484
- Mfr. Part No.:
- 2910522
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£245.43
(exc. VAT)
£294.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £24.543 | £245.43 |
*price indicative
- RS Stock No.:
- 270-9484
- Mfr. Part No.:
- 2910522
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 110, 120V ac/dc | |
| Product Type | Relay Module | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | PLC-INTERFACE | |
| Terminal Type | Push-in | |
| Switching Current | 10mA | |
| Switching DC Voltage | 250V dc | |
| Coil Type | Monostable | |
| Coil Current | 5mA | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 250V ac | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | 55°C | |
| Length | 104mm | |
| Width | 14mm | |
| Standards/Approvals | EN 60068-2-60, UL 508, EN 50178 | |
| Height | 80mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 110, 120V ac/dc | ||
Product Type Relay Module | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series PLC-INTERFACE | ||
Terminal Type Push-in | ||
Switching Current 10mA | ||
Switching DC Voltage 250V dc | ||
Coil Type Monostable | ||
Coil Current 5mA | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 250V ac | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature 55°C | ||
Length 104mm | ||
Width 14mm | ||
Standards/Approvals EN 60068-2-60, UL 508, EN 50178 | ||
Height 80mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Phoenix Contact preassembled relay module with screw connection consist of relay base, power contact relay, plug in display or interference suppression module and retaining bracket. It has easy wiring due to push in connection technology.
Monostable drive and function
