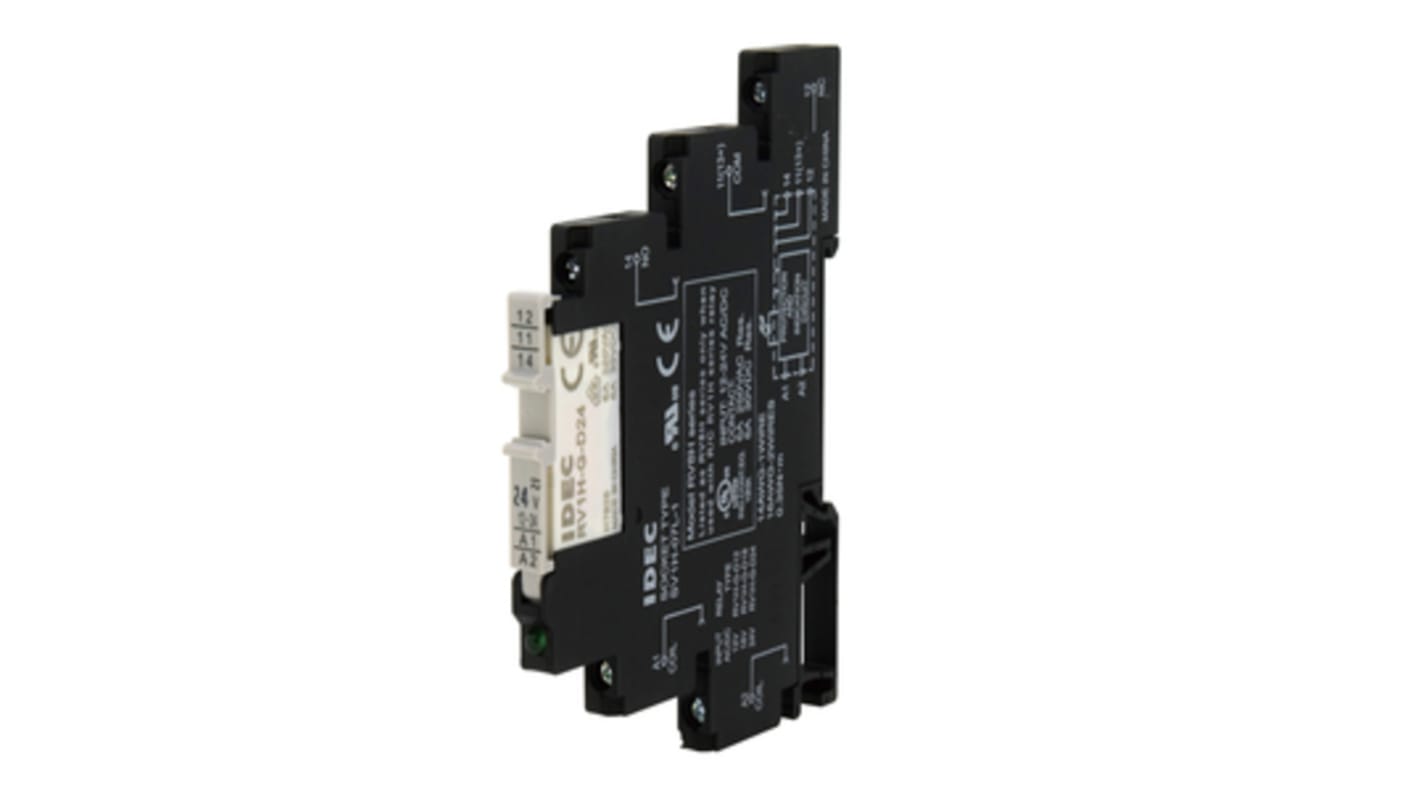

Idec RV8 Series Interface Relay, DIN Rail, 24V dc Coil, SPDT
- RS Stock No.:
- 212-2500
- Mfr. Part No.:
- RV8H-L-D24
- Brand:
- Idec
Bulk discount available
Subtotal (1 box of 10 units)*
£93.55
(exc. VAT)
£112.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 20 April 2026
- Plus 25 unit(s) shipping from 08 May 2026
- Plus 3 unit(s) shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 - 4 | £93.55 | £9.355 |
| 5 - 9 | £88.88 | £8.888 |
| 10 + | £84.45 | £8.445 |
*price indicative
- RS Stock No.:
- 212-2500
- Mfr. Part No.:
- RV8H-L-D24
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Coil Voltage | 24V dc | |
| Product Type | Interface Relay | |
| Coil Resistance | 2270Ω | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | RV8 | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 125V dc | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Nickel Alloy | |
| Height | 75mm | |
| Length | 88mm | |
| Width | 6.1mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Coil Voltage 24V dc | ||
Product Type Interface Relay | ||
Coil Resistance 2270Ω | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series RV8 | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 125V dc | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Nickel Alloy | ||
Height 75mm | ||
Length 88mm | ||
Width 6.1mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- TW
The Idec RV8 Series of 6mm interface relays provide a compact solution for general purpose relay requirements. Now available with solid state models, the RV8 series Interface relays are ideal for PLC and electronic systems, industrial automation, panel builders, assembly machine applications and other applications that require a high switching capability in a compact space.
Class I, Division 2 and Class I, Zone 2 hazardous location options
Solid state relay versions available
RoHS compliant
UL/c-UL Listed
