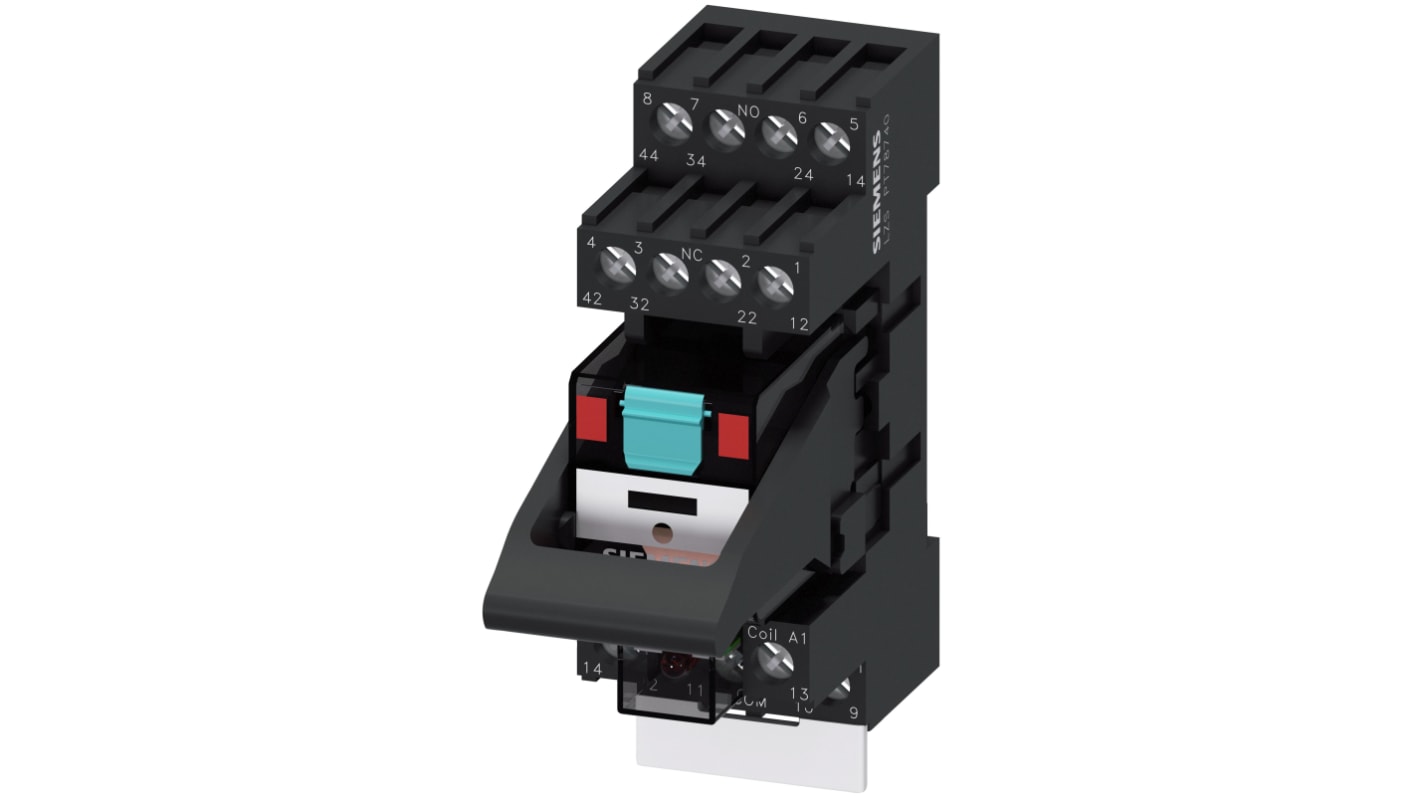

Siemens LZS Series Coupling Relay, Snap-On, 24V ac Coil, 6A
- RS Stock No.:
- 203-8698
- Mfr. Part No.:
- LZS:PT5A5R24
- Brand:
- Siemens
Subtotal (1 pack of 5 units)*
£102.67
(exc. VAT)
£123.205
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £20.534 | £102.67 |
*price indicative
- RS Stock No.:
- 203-8698
- Mfr. Part No.:
- LZS:PT5A5R24
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24V ac | |
| Product Type | Coupling Relay | |
| Mount Type | Snap-On | |
| Series | LZS | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 6A | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | 70°C | |
| Height | 72mm | |
| Length | 74mm | |
| Standards/Approvals | RoHS | |
| Width | 28mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24V ac | ||
Product Type Coupling Relay | ||
Mount Type Snap-On | ||
Series LZS | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Current 6A | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature 70°C | ||
Height 72mm | ||
Length 74mm | ||
Standards/Approvals RoHS | ||
Width 28mm | ||
- COO (Country of Origin):
- DE
The Siemens plug-in relay is a complete unit 4 W, 24 V AC LED module red. It is a standard plug-in socket screw terminal with 3.5 mm pinning.
Protection class IP IP20
Switching behaviour monostable
