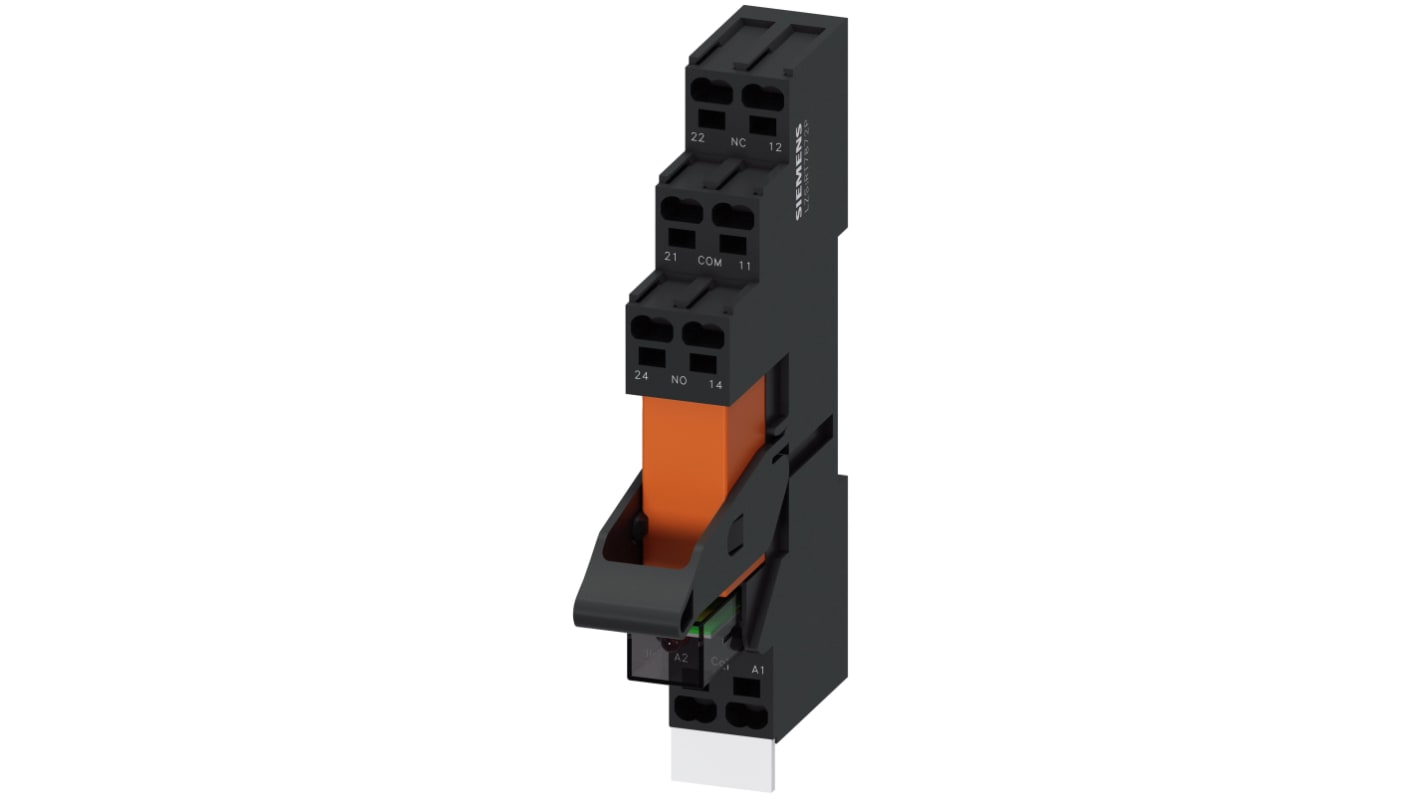

Siemens LZS Series Coupling Relay, Plug-in, 24 V ac Coil, SPDT
- RS Stock No.:
- 255-0892
- Mfr. Part No.:
- LZS:RT3D4R24
- Brand:
- Siemens
Subtotal (1 pack of 5 units)*
£106.61
(exc. VAT)
£127.93
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 17 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £21.322 | £106.61 |
*price indicative
- RS Stock No.:
- 255-0892
- Mfr. Part No.:
- LZS:RT3D4R24
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Coupling Relay | |
| Contact Configuration | SPDT | |
| Mount Type | Plug-in | |
| Series | LZS | |
| Terminal Type | Screw | |
| Coil Type | Non-Latching | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 50mm | |
| Height | 15mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Coupling Relay | ||
Contact Configuration SPDT | ||
Mount Type Plug-in | ||
Series LZS | ||
Terminal Type Screw | ||
Coil Type Non-Latching | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 50mm | ||
Height 15mm | ||
- COO (Country of Origin):
- DE
The Siemens Plug-in relay are available with screw terminals or with spring-loaded terminals. Push-in terminals are a form of spring-loaded terminals allowing fast wiring without tools for rigid conductors or conductors equipped with end sleeves. Status display by red LED. The advantages of the push-in terminals are found, as with all spring-loaded terminals, in speed of assembly and disassembly and vibration-proof connection. There is no need for the checking and tightening required with screw terminals.
Monostable switching behaviour
Design of the switching function
Design of the relay operating mechanism
Display version as status display by LED
