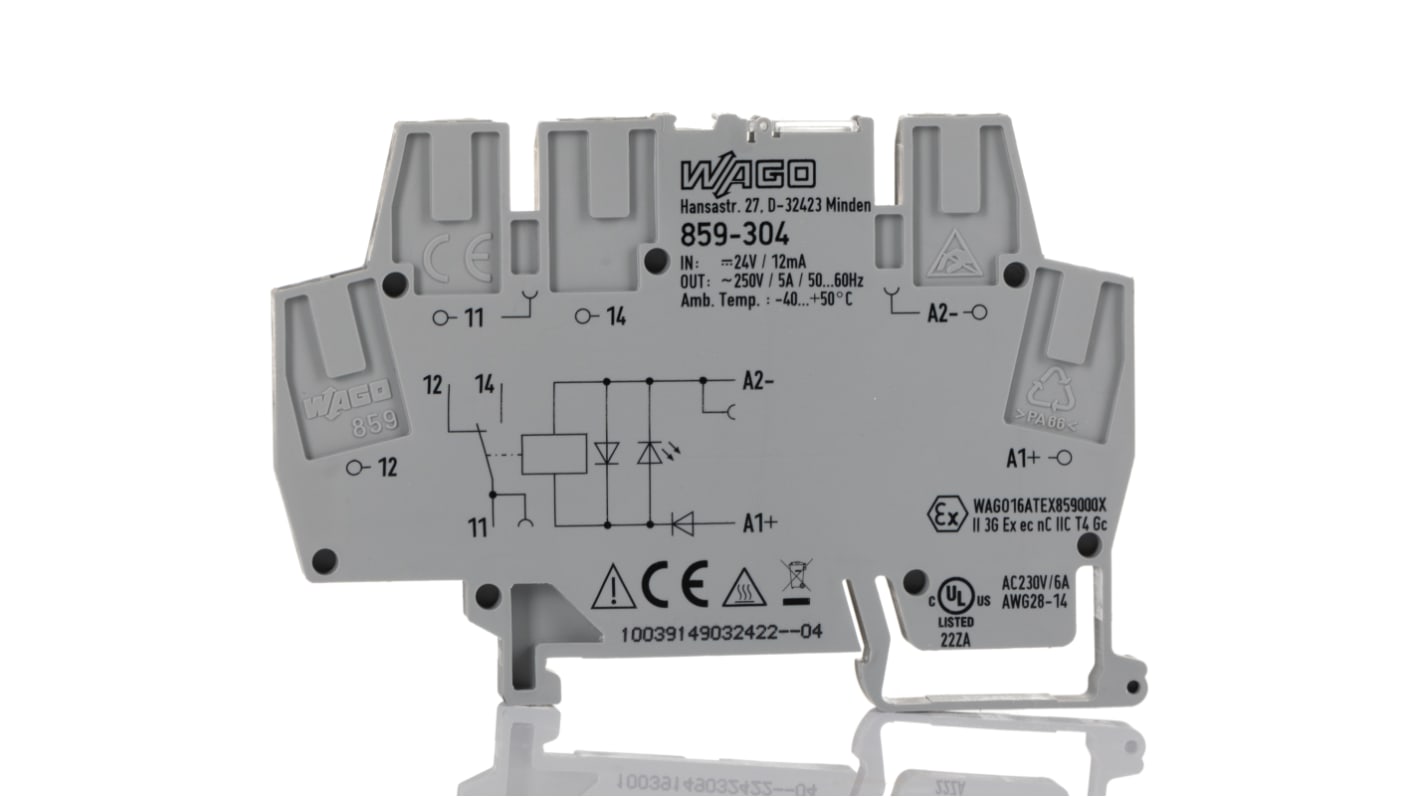

WAGO 859 Series Interface Relay, DIN Rail Mount, 24V dc Coil, 1-Pole
- RS Stock No.:
- 135-7384
- Distrelec Article No.:
- 303-97-256
- Mfr. Part No.:
- 859-304
- Brand:
- WAGO
Subtotal (1 unit)*
£14.33
(exc. VAT)
£17.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 246 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.33 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£7.608
(exc. VAT)
£9.13
(inc. VAT)
- RS Stock No.:
- 135-7384
- Distrelec Article No.:
- 303-97-256
- Mfr. Part No.:
- 859-304
- Brand:
- WAGO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Coil Voltage | 24V dc | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Series | 859 | |
| Terminal Type | Plug In | |
| Switching Voltage | 250V ac | |
| Depth | 56mm | |
| Height | 91mm | |
| Length | 6mm | |
| Contact Material | Silver Nickel | |
| Input Current | 10mA | |
| Special Features | Spring Pressure Connection Technology | |
| Standards Met | EN 60664-1, GL, UL 508 | |
| Relay Switching Classification | Miniature Relay | |
| Minimum Operating Temperature | -25°C | |
| Accessory Type | Relay Module | |
| Life | 50000 (Electrical) operations, 5000000 (Mechanical) operations | |
| Dimensions | 6 x 56 x 91mm | |
| Operating Temperature Range | -40 → +50°C | |
| Maximum Operating Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Coil Voltage 24V dc | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Series 859 | ||
Terminal Type Plug In | ||
Switching Voltage 250V ac | ||
Depth 56mm | ||
Height 91mm | ||
Length 6mm | ||
Contact Material Silver Nickel | ||
Input Current 10mA | ||
Special Features Spring Pressure Connection Technology | ||
Standards Met EN 60664-1, GL, UL 508 | ||
Relay Switching Classification Miniature Relay | ||
Minimum Operating Temperature -25°C | ||
Accessory Type Relay Module | ||
Life 50000 (Electrical) operations, 5000000 (Mechanical) operations | ||
Dimensions 6 x 56 x 91mm | ||
Operating Temperature Range -40 → +50°C | ||
Maximum Operating Temperature +50°C | ||
