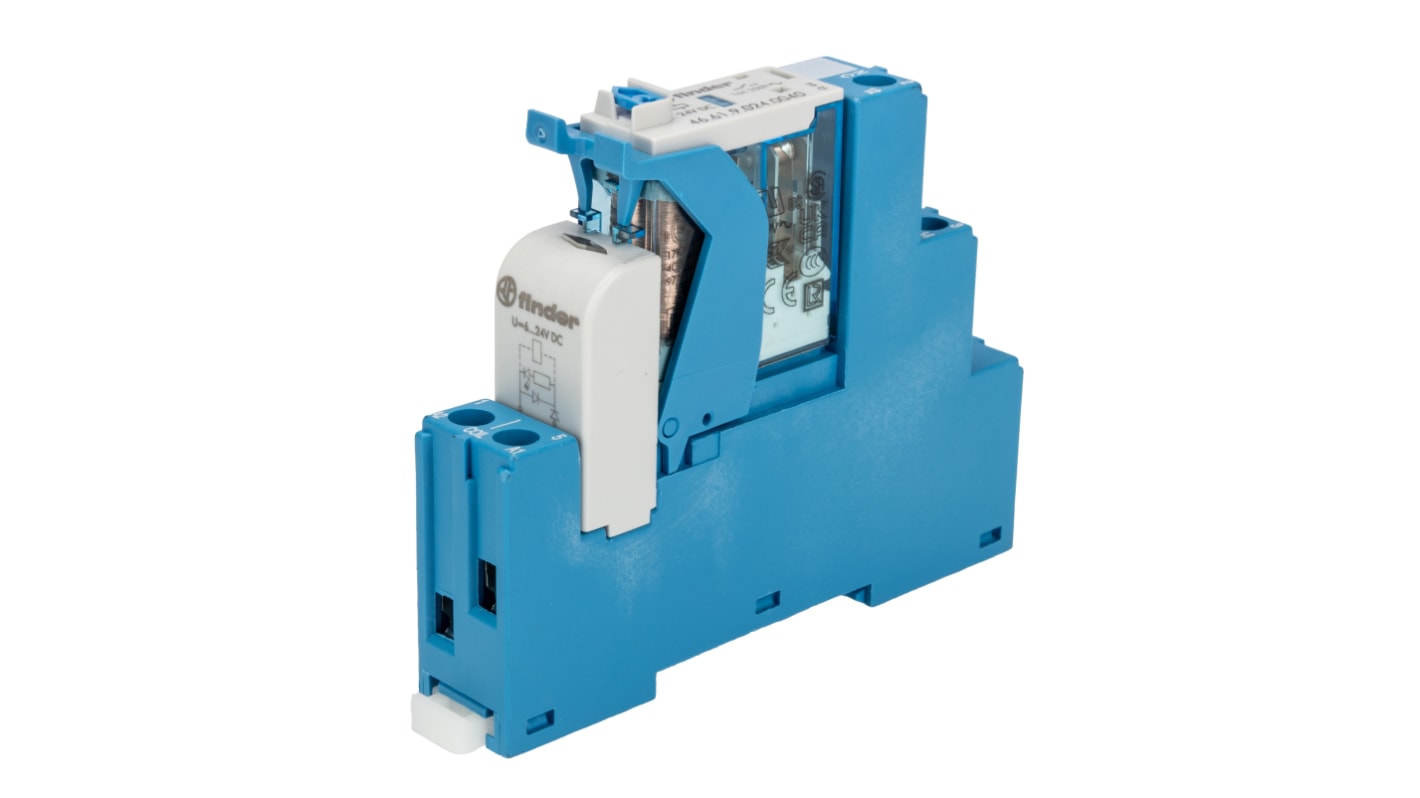

Finder 4C Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole
- RS Stock No.:
- 154-334
- Mfr. Part No.:
- 4C.01.9.024.0050SPA
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£18.86
(exc. VAT)
£22.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 47 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £18.86 |
5 - 9 | £18.27 |
10 + | £17.49 |
*price indicative
- RS Stock No.:
- 154-334
- Mfr. Part No.:
- 4C.01.9.024.0050SPA
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Number of Poles | 1 | |
Series | 4C Series | |
Terminal Type | Screw | |
Switching Voltage | 250 → 440V ac | |
Depth | 64.6mm | |
Height | 82.9mm | |
Length | 15.8mm | |
Contact Material | Silver Alloy | |
Input Current | 20mA | |
Standards Met | CE, EAC | |
Accessory Type | Interface Relay | |
Dimensions | 81 x 15.8 x 64.6mm | |
Turn Off Time | 12ms | |
Operating Temperature Range | -40 → +70°C | |
Life | 10000000 Cycles | |
Turn On Time | 15ms | |
Input Resistance | 1200Ω | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Series 4C Series | ||
Terminal Type Screw | ||
Switching Voltage 250 → 440V ac | ||
Depth 64.6mm | ||
Height 82.9mm | ||
Length 15.8mm | ||
Contact Material Silver Alloy | ||
Input Current 20mA | ||
Standards Met CE, EAC | ||
Accessory Type Interface Relay | ||
Dimensions 81 x 15.8 x 64.6mm | ||
Turn Off Time 12ms | ||
Operating Temperature Range -40 → +70°C | ||
Life 10000000 Cycles | ||
Turn On Time 15ms | ||
Input Resistance 1200Ω | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- IT
Finder Series 4C Interface Relay, 24V DC Coil Voltage, SPDT Contact Configuration - 4C.01.9.024.0050SPA
This interface relay is designed for automation and control systems, enabling efficient circuit switching. With a coil voltage of 24V DC, it is compatible with both AC and DC systems, providing operational versatility.
Features & Benefits
• SPDT configuration allows flexible circuit management
• Screw terminals simplify installation and connections
• Supports high switching voltages up to 440V AC
• Silver alloy contacts enhance durability
• Screw terminals simplify installation and connections
• Supports high switching voltages up to 440V AC
• Silver alloy contacts enhance durability
Applications
• Used in industrial control panels for power management
• Applied in escalators for automated operations
• Incorporated into road and tunnel lighting systems
• Utilised in hoists and cranes for safe lifting
• Implemented in carousel warehouses for efficient item movement
• Applied in escalators for automated operations
• Incorporated into road and tunnel lighting systems
• Utilised in hoists and cranes for safe lifting
• Implemented in carousel warehouses for efficient item movement
How does this device manage different voltage types?
It effectively switches between AC and DC loads for various applications.
What is the installation process for this relay?
Connect the screw terminals as required by the circuit for a secure fit.
Can it be used in high-temperature environments?
Yes, it operates efficiently in temperatures ranging from -40°C to +70°C.
What is the expected lifespan of this component?
It has a mechanical life of up to 10 million cycles.
Is any specific maintenance required for optimal performance?
Regular inspections of connections and terminals are advisable to ensure reliability.
