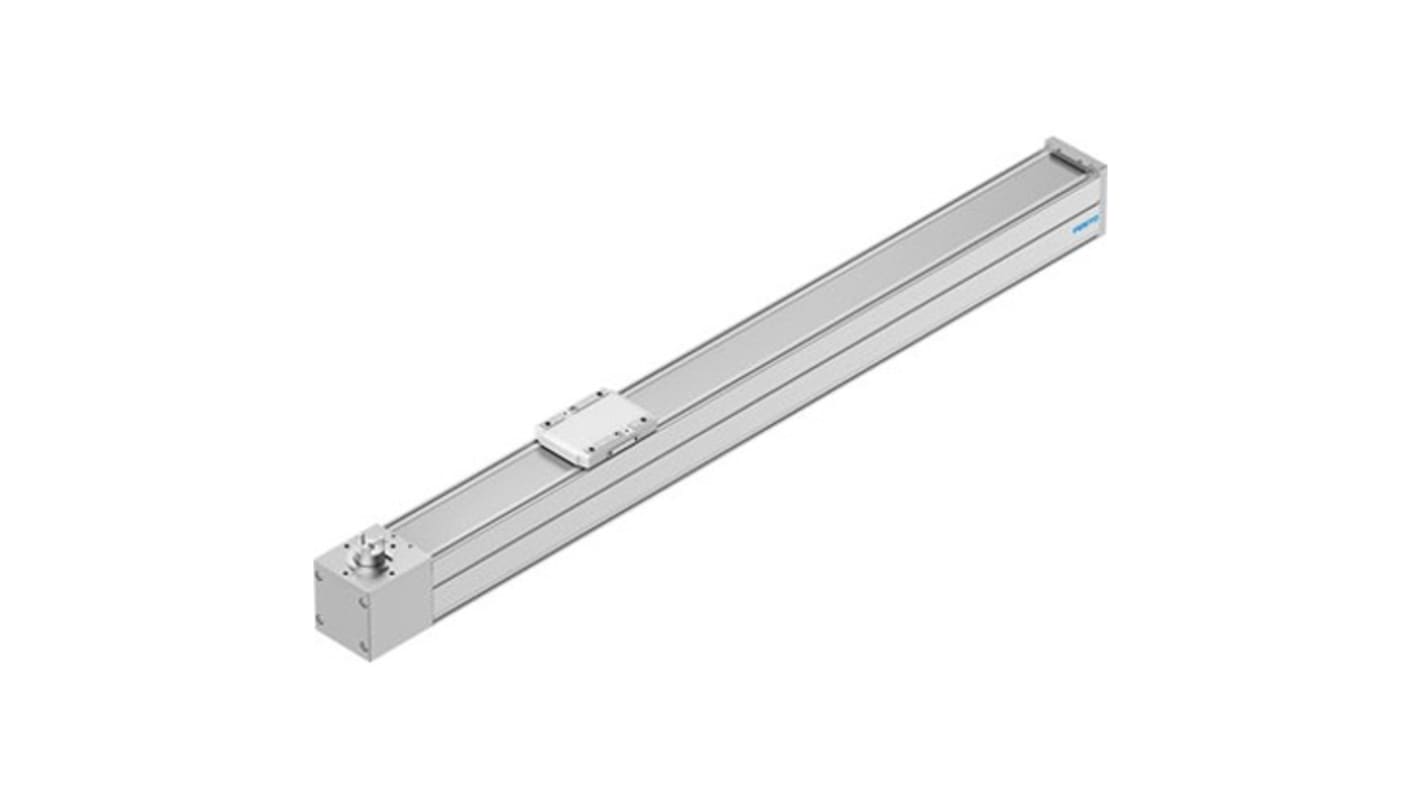

Festo Belt Driven Linear Actuator, 1800mm, 2700N, 1500mm/s, 8062794
- RS Stock No.:
- 281-1086
- Mfr. Part No.:
- ELGC-TB-KF-80-1800
- Brand:
- Festo
Subtotal (1 unit)*
£918.01
(exc. VAT)
£1,101.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £918.01 |
*price indicative
- RS Stock No.:
- 281-1086
- Mfr. Part No.:
- ELGC-TB-KF-80-1800
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Belt Driven Linear Actuator | |
Maximum Stroke Length | 1800mm | |
Maximum Load | 2700N | |
Series | ELGC | |
Maximum Speed No Load | 1500mm/s | |
Model Number | 8062794 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Belt Driven Linear Actuator | ||
Maximum Stroke Length 1800mm | ||
Maximum Load 2700N | ||
Series ELGC | ||
Maximum Speed No Load 1500mm/s | ||
Model Number 8062794 | ||
- COO (Country of Origin):
- CN
The Festo Toothed belt axes with recirculating ball bearing is integrated with simple position sensing with proximity switch SMT-8M and integrated positioning magnet. The cover strip and optional vacuum connection protect against particle emissions and at
Unique assembly system
Compact
Integrated coupling
Easy to service
Compact
Integrated coupling
Easy to service
