Actuonix 20 mm, 45N 12 V 15mm/s
- RS Stock No.:
- 202-0769
- Mfr. Part No.:
- PQ12-63-12-S
- Brand:
- Actuonix
Bulk discount available
Subtotal (1 unit)*
£101.60
(exc. VAT)
£121.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 4 unit(s) shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £101.60 |
| 5 - 9 | £97.54 |
| 10 + | £93.47 |
*price indicative
- RS Stock No.:
- 202-0769
- Mfr. Part No.:
- PQ12-63-12-S
- Brand:
- Actuonix
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Actuonix | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 20mm | |
| Maximum Load | 45N | |
| Maximum Speed | 15mm/s | |
| Series | PQ12 | |
| Maximum Force | 45N | |
| Duty Cycle | 20% | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS | |
| Weight | 21g | |
| Select all | ||
|---|---|---|
Brand Actuonix | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 20mm | ||
Maximum Load 45N | ||
Maximum Speed 15mm/s | ||
Series PQ12 | ||
Maximum Force 45N | ||
Duty Cycle 20% | ||
IP Rating IP54 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS | ||
Weight 21g | ||
- COO (Country of Origin):
- CN

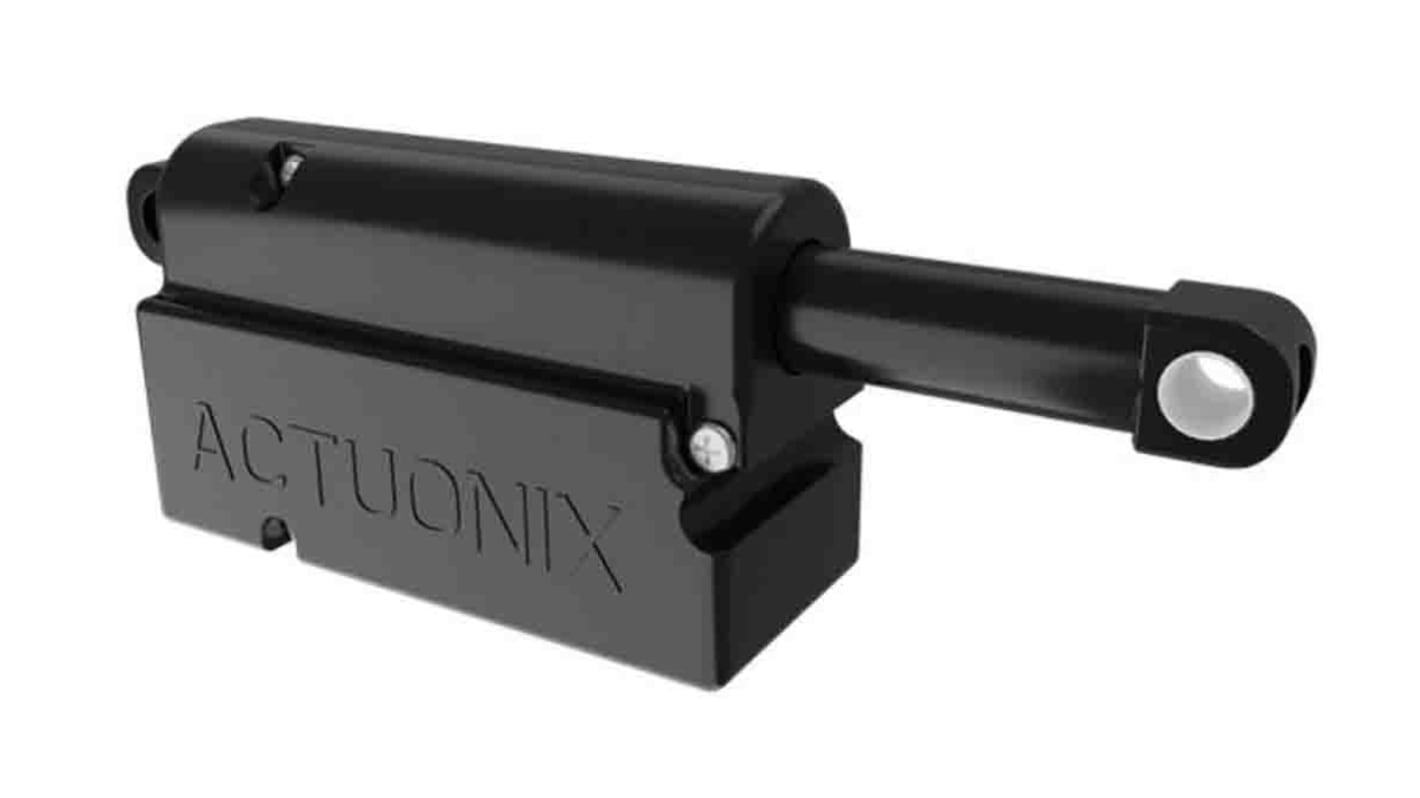

The Actuonix PQ12 series micro feedback actuator is designed to push or pull a load along its full stroke length. It features an internal potentiometer that can be used to provide position feedback. It comes with limit switches that will turn off power to
Can run with a DPDT switch, relay or brushed DC motor controller
Available in both 6v and 12v models.
