Actuonix 300 mm 12 V dc 46mm/s

View all Electric Linear Actuators
Bulk discount available

Subtotal (1 unit)*

£132.89

(exc. VAT)

£159.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 4 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£132.89
5 - 9£127.58
10 +£122.26

*price indicative

RS Stock No.:
180-8416
Mfr. Part No.:
T16-100-22-12-S
Brand:
Actuonix
Find similar products by selecting one or more attributes.
Select all

Brand

Actuonix

Product Type

Electrical Linear Actuator

Stroke Length

300mm

Maximum Speed

46mm/s

Series

T16

Voltage

12 V dc

Maximum Force

300N

Duty Cycle

20%

Spindle Type

Stainless Steel Lead Screw

Piston Rod Thread

M8 x 1.25

Overall Length Closed

209mm

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

50°C

Standards/Approvals

No

Weight

116g

COO (Country of Origin):
CN

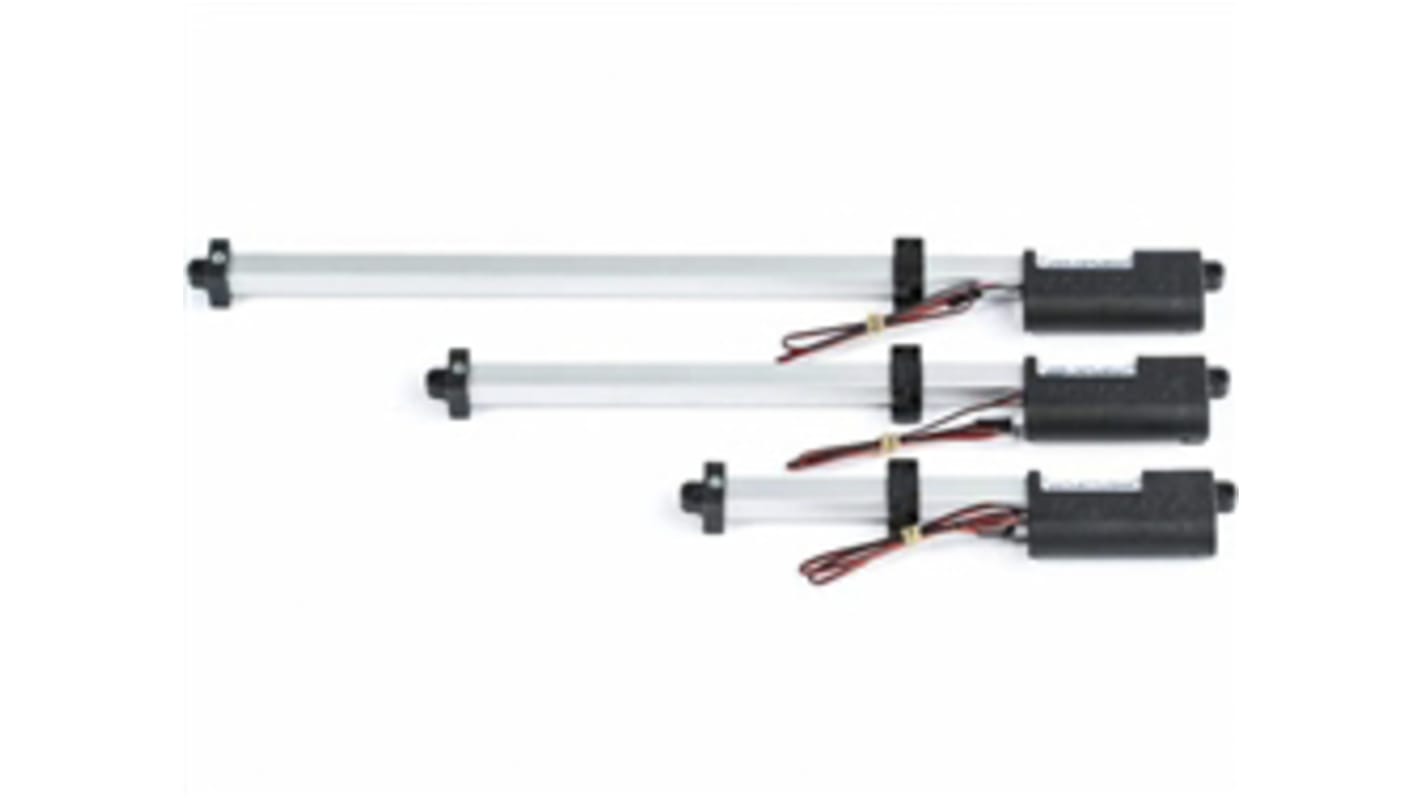

Miniature Linear Motion Series · T16


Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear track actuators are a superior alternative to designing your own push/pull mechanisms.

The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.

Actuonix's unique line of Micro Linear Track Actuators enables a new generation of motion enabled product designs, with capabilities that have never before been combined in a device of this size. These linear track actuators are a superior alternative to designing your own push/pull mechanisms.Built on the same platform as the proven P16, the T16-S tracktuators are complete, self-contained linear motion devices with end of stroke limit switches for simple two position automation. The track design makes the T16 significantly shorter than the same stroke length P16, since instead of an extending shaft, a sliding mount is provided.

Optional stroke lengths of 100mm, 200mm or 300mm

3 gearing options for maximum forces between 50N (11lbs) and 300N (67lbs) and speeds between 4.8mm/s and 46mm/s

Only available as a 12V unit

Compact Side by Side Design

Longer available strokes (300mm)

Higher forces

Faster speeds

Premium components: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.
