Festo 25 mm, 6300N, 562761 790mm/s
- RS Stock No.:
- 651-109
- Mfr. Part No.:
- EGSK-20-25-6P
- Brand:
- Festo
Subtotal (1 unit)*
£854.06
(exc. VAT)
£1,024.87
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £854.06 |
*price indicative
- RS Stock No.:
- 651-109
- Mfr. Part No.:
- EGSK-20-25-6P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Miniature Electric Actuator - Rod | |
| Stroke Length | 25mm | |
| Maximum Load | 6300N | |
| Maximum Speed | 790mm/s | |
| Series | EGSK | |
| Maximum Force | 764N | |
| IP Rating | IP10 | |
| Spindle Type | Ball Screw | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Weight | 448g | |
| Standards/Approvals | RoHS, VDMA24364 zone III | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Miniature Electric Actuator - Rod | ||
Stroke Length 25mm | ||
Maximum Load 6300N | ||
Maximum Speed 790mm/s | ||
Series EGSK | ||
Maximum Force 764N | ||
IP Rating IP10 | ||
Spindle Type Ball Screw | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Weight 448g | ||
Standards/Approvals RoHS, VDMA24364 zone III | ||
- COO (Country of Origin):
- JP

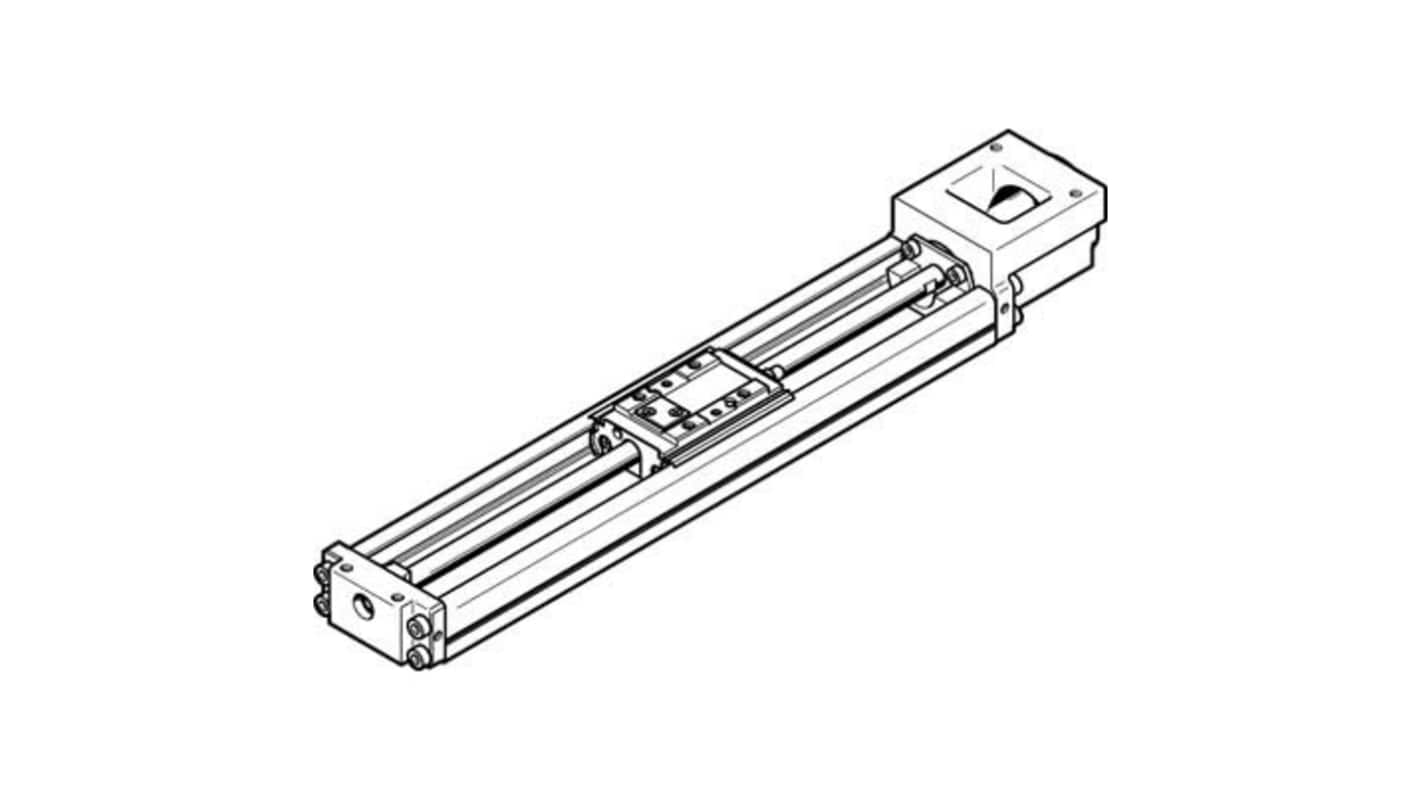

The Festo Electrical slide is designed to provide precise control and movement in applications requiring electromechanical linear motion. With a robust ball screw drive, this linear axis excels in delivering high accuracy and reliability across various operating conditions. Its compact size and optional mounting positions offer versatility in installation, ensuring optimal performance in constrained spaces. Built with high-quality materials such as high-alloy stainless steel and die-cast aluminium, this product promises durability and long service life, making it an ideal choice for automation tasks in industrial settings.
Working stroke of 25 mm enables efficient linear movement
Reversing backlash is theoretically valued at ≤20 μm for enhanced precision
Dynamic basic load ratings support robust applications with a fixed bearing rated at 1000 N
Integrated reference switch simplifies machine referencing in automated setups
The mass moment of inertia ensures smooth and stable motion during operation
Lightweight design with a total product weight of only 448 g facilitates easy installation
RoHS-compliant materials contribute to eco-friendly manufacturing processes
