Festo Electromechanical, 300mm, 1050mm/s, 562791
- RS Stock No.:
- 650-673
- Mfr. Part No.:
- EGSK-46-300-20P
- Brand:
- Festo
Subtotal (1 unit)*
£1,573.25
(exc. VAT)
£1,887.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,573.25 |
*price indicative
- RS Stock No.:
- 650-673
- Mfr. Part No.:
- EGSK-46-300-20P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Electromechanical | |
Maximum Stroke Length | 300mm | |
Series | EGSK | |
Maximum Speed No Load | 1050mm/s | |
Model Number | 562791 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Electromechanical | ||
Maximum Stroke Length 300mm | ||
Series EGSK | ||
Maximum Speed No Load 1050mm/s | ||
Model Number 562791 | ||
- COO (Country of Origin):
- JP

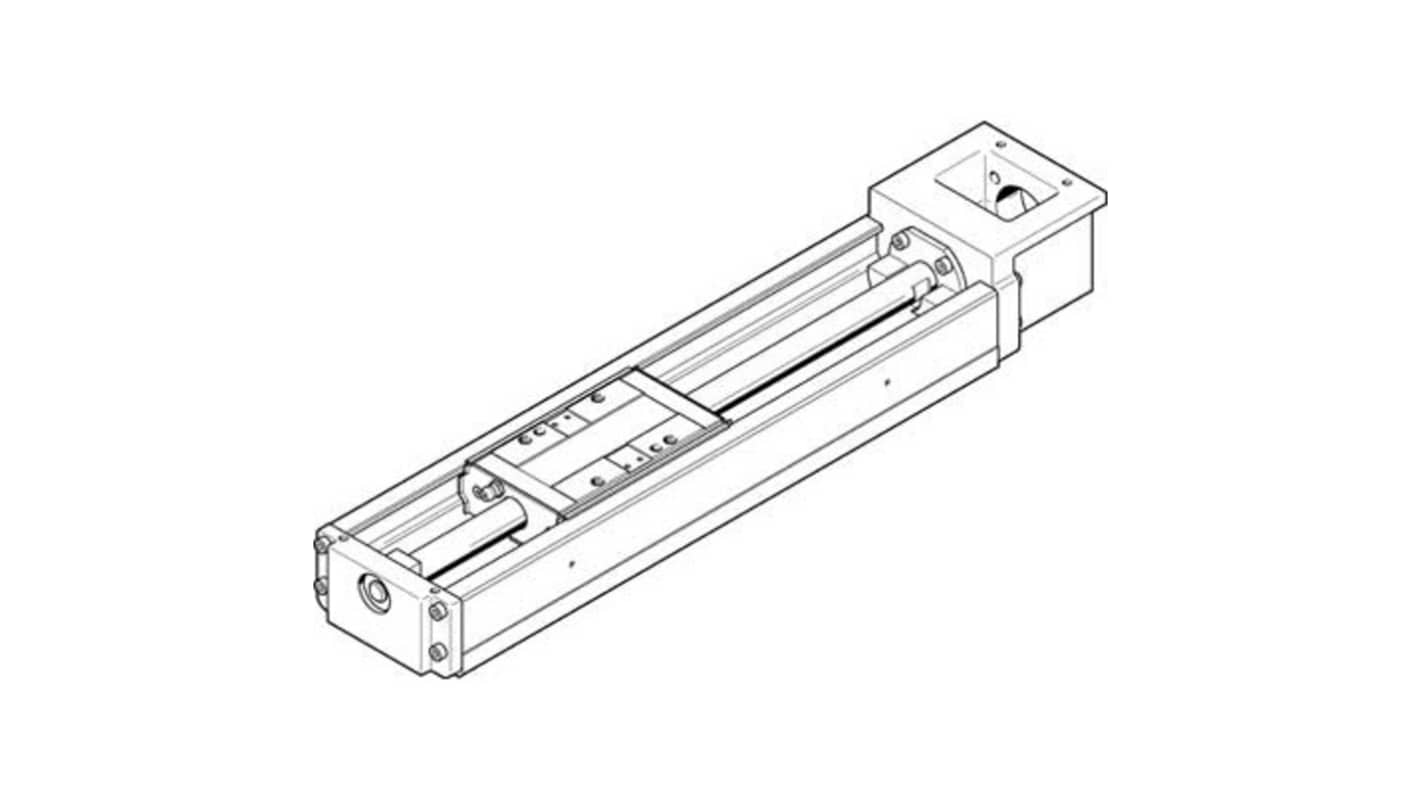

The Festo Electromechanical linear axis is engineered for precision and versatility in motion control applications. Designed with a robust ball screw drive, this product effectively manages demanding tasks, offering a working stroke of 300 mm and supporting optional mounting positions. Its high-performance capabilities are underlined by impressive specifications, such as a maximum speed of 1.05 m/s and dynamic load ratings of up to 6600 N for fixed bearing and 21747 N for linear guides. Built to withstand diverse operating conditions, the device features a corrosion resistance class CRC 0 and maintains functionality within ambient temperatures from 0 °C to 40 °C. This product is ideal for a range of applications requiring reliable and accurate linear movement.
Incorporates recirculating ball bearing guide for smooth operation
Constructed with materials compliant with RoHS which ensuring environmental safety
Features optional mounting positions for enhanced installation flexibility
Static load ratings include 7150 N for the ball screw and 45500 N for the linear guide providing robustness
Lightweight design with a total product weight of 8980 g optimising assembly and transport
Constructed with materials compliant with RoHS which ensuring environmental safety
Features optional mounting positions for enhanced installation flexibility
Static load ratings include 7150 N for the ball screw and 45500 N for the linear guide providing robustness
Lightweight design with a total product weight of 8980 g optimising assembly and transport
