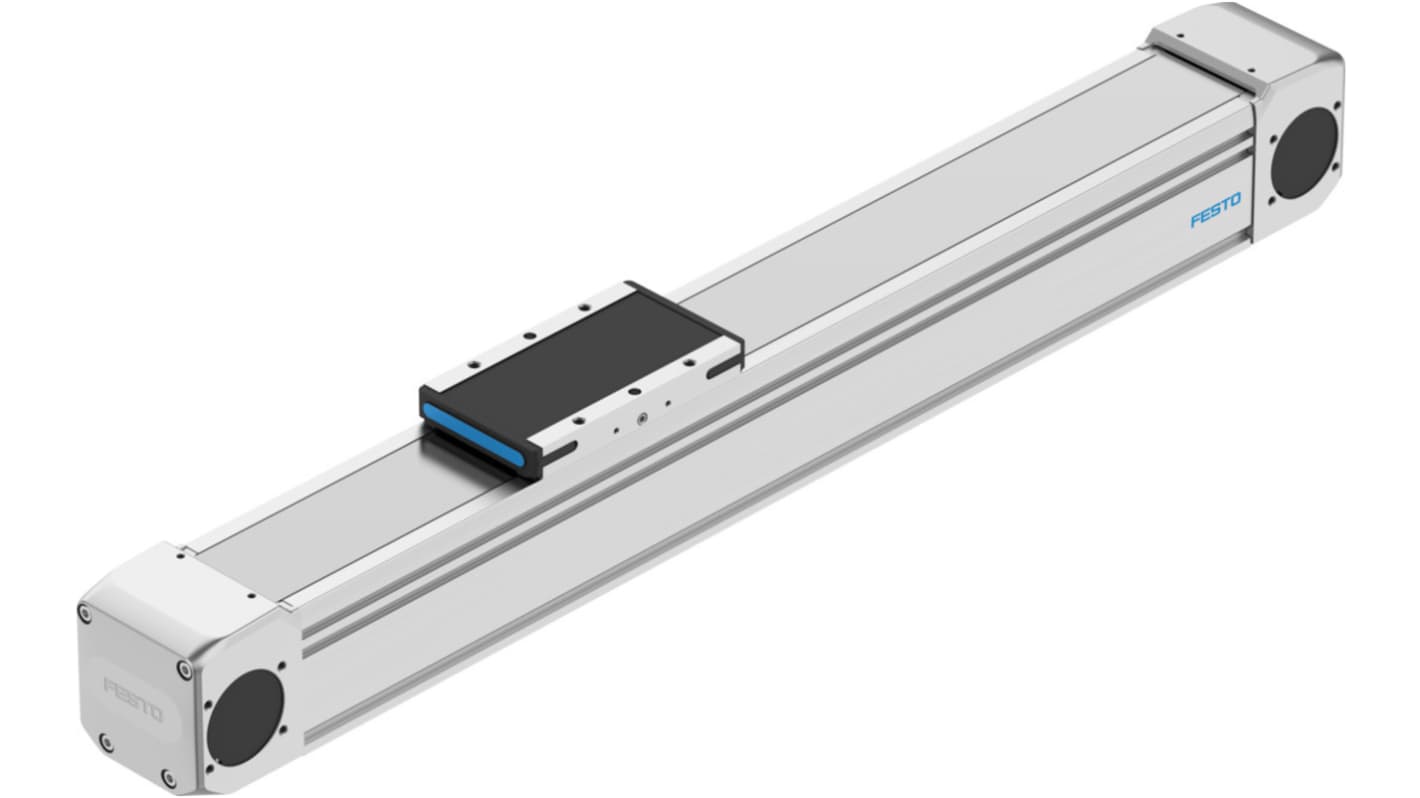

Festo Electromechanical, 1200mm, 800N, 3000mm/s, ELGD-TB-KF-80-1200-0H-PU2

View all Electric Linear Actuators

Subtotal (1 unit)*

£1,154.73

(exc. VAT)

£1,385.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,154.73

*price indicative

RS Stock No.:
343-697
Mfr. Part No.:
ELGD-TB-KF-80-1200-0H-PU2
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Actuator Type

Electromechanical

Maximum Stroke Length

1200mm

Maximum Load

800N

Series

ELGD

Maximum Speed No Load

3000mm/s

Maximum Force Lifting

4200N

Motor Technology

Servo Motor, Stepper Motor

Duty Cycle

100%

IP Rating

IP40

Model Number

ELGD-TB-KF-80-1200-0H-PU2

COO (Country of Origin):
DE

Festo ELGD Series Electric Linear Actuator, 1200mm Maximum Stroke Length, 800N Maximum Load - ELGD-TB-KF-80-1200-0H-PU2, Numeric Part Number:8192360


This electric linear actuator is an efficient and versatile electromechanical solution designed for a range of applications in automation. With a maximum stroke length of 1200mm and capable of handling loads of up to 800N, it operates smoothly using both servo and stepper motors. Built for reliability, this actuator offers an IP40 rating for dust protection, making it suitable for various industrial environments.

Features & Benefits


• Delivers high-speed operation at up to 3000mm/s under no load
• Maintains a 100% duty cycle for continuous, demanding tasks
• Utilises a precision recirculating ball bearing guide for enhanced accuracy
• Achieves a maximum lifting force of 4200N for heavy-duty applications
• Integrates position detection through inductive sensors for reliable feedback
• Constructed with RoHS-compliant materials for safety and environmental standards

Applications


• Ideal for use in industrial automation equipment
• Employed in the production of Li-ion batteries
• Utilised in robotic assembly and handling systems
• Suitable for requiring precise linear movement
• Compatible with systems needing motion control in electronics

What maximum load capacity should be considered when using this actuator?


This actuator can support loads of up to 800N, ensuring efficient performance under demanding conditions.

How does the actuator ensure precision in movement?


Precision is achieved through its incremental measuring system and position detection via inductive sensors.

What are the operational temperature ranges for effective use?


It operates effectively within ambient temperatures of 0°C to 60°C and can withstand storage temperatures from -20°C to 60°C.

How does the actuator perform in terms of acceleration?


The maximum acceleration can reach 50m/s², allowing for swift and dynamic movement in applications.

What maintenance is required for optimal performance?


The actuator features lifetime lubrication, necessitating minimal maintenance for ongoing efficiency and reliability.
