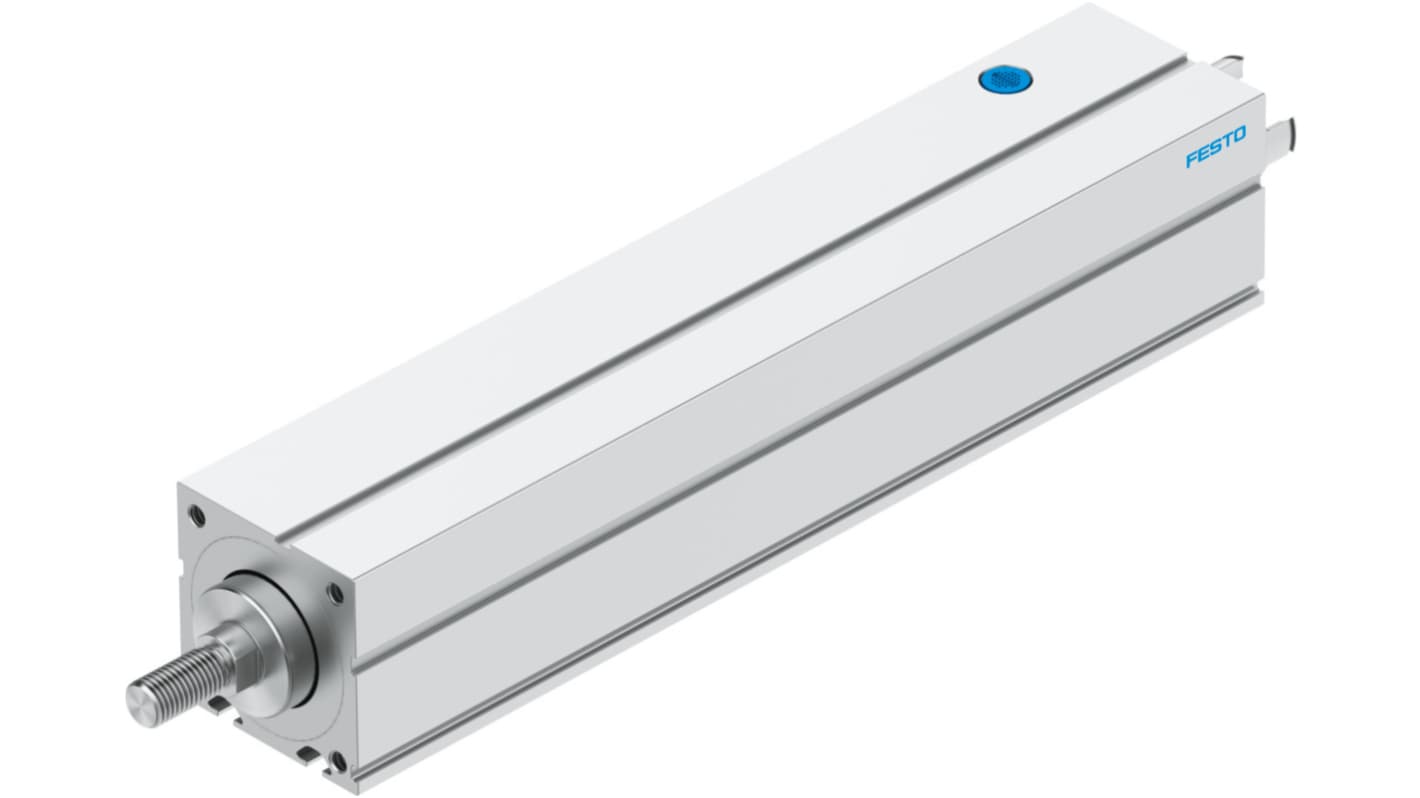

Festo Stepper Motor Linear Actuator, 500mm, 60kg, 600mm/s, 5428913

This electric linear actuator is designed for precise motion control across various automation applications. Highlighting performance and dependability, it employs stepper and servo motor technologies to ensure high-speed operation, making it a crucial component in sectors such as manufacturing and robotics. This actuator is easy to integrate and caters to the requirements of dynamic environments, enabling the handling of heavy loads and adjustable positioning.

• Maximum stroke length of 500mm
• Functions as a high-speed linear actuator with speeds reaching 600mm/s
• 100% duty cycle designed for continuous operation
• IP40 rating provides protection against dust
• Utilises a ball screw drive for effective power transmission

• Utilised in automation systems for precise positioning
• Implemented in robotics for versatile motion control
• Suitable for necessitating high-speed operations
• Employed in facilities producing Li-ion batteries
• Ideal for mechanisms that require reliable torque and acceleration control

The actuator can reach a maximum rotational speed of 3000r/min and an acceleration of up to 15m/s².

This actuator has an IP40 rating, which means it is protected against solid objects but not suitable for outdoor conditions where moisture is present.

Position detection is carried out using a proximity switch, ensuring accurate feedback for operational control.

The housing is made from wrought aluminium alloy, while the piston rod is constructed from high-alloy stainless steel for durability and corrosion resistance.
