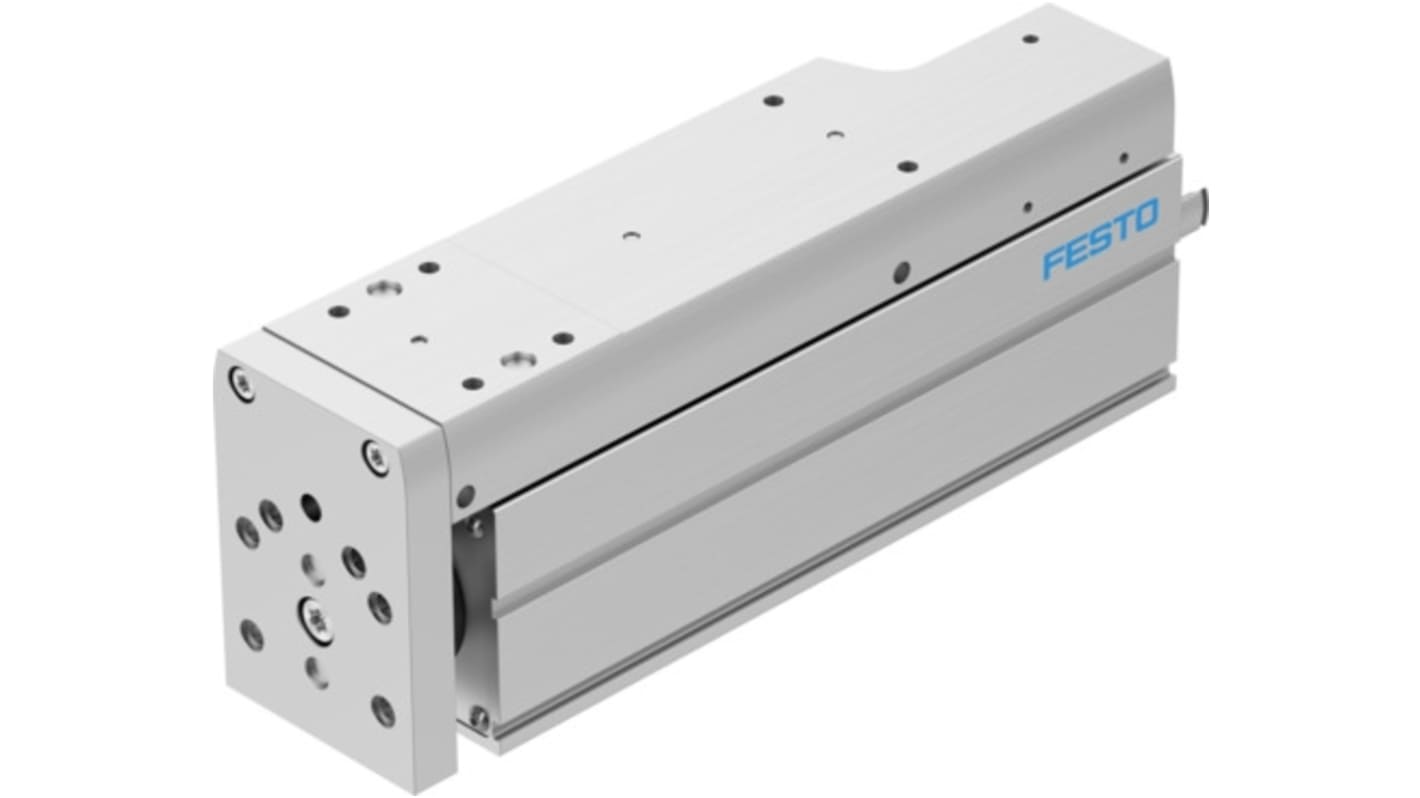

Festo Electrical Linear Actuator 125 mm 25kg 8162083 250mm/s
- RS Stock No.:
- 194-255
- Mfr. Part No.:
- EGSC-BS-KF-60-125-5P
- Brand:
- Festo
Subtotal (1 unit)*
£692.49
(exc. VAT)
£830.99
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £692.49 |
*price indicative
- RS Stock No.:
- 194-255
- Mfr. Part No.:
- EGSC-BS-KF-60-125-5P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 125mm | |
| Maximum Load | 25kg | |
| Maximum Speed | 250mm/s | |
| Series | EGSC | |
| Motor Technology | Stepper Motor, Servo Motor | |
| Duty Cycle | 100% | |
| Maximum Force | 4937N | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw Drive | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | KC, RoHS, ISO 146441, RCM, CE, VDMA464 | |
| Weight | 2.74kg | |
| Model Number | 8162083 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 125mm | ||
Maximum Load 25kg | ||
Maximum Speed 250mm/s | ||
Series EGSC | ||
Motor Technology Stepper Motor, Servo Motor | ||
Duty Cycle 100% | ||
Maximum Force 4937N | ||
IP Rating IP40 | ||
Spindle Type Ball Screw Drive | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals KC, RoHS, ISO 146441, RCM, CE, VDMA464 | ||
Weight 2.74kg | ||
Model Number 8162083 | ||
- COO (Country of Origin):
- CN
The Festo Mini slide is engineered to deliver precision and efficiency in automation applications. Utilising a robust ball screw drive mechanism, this device provides an impressive working stroke of 125 mm, ensuring that it meets the demanding requirements of linear motion systems.
Versatile mounting options simplify installation procedures
Corrosion resistance promotes durability in harsh conditions
Dynamic load ratings cater to diverse operational demands
