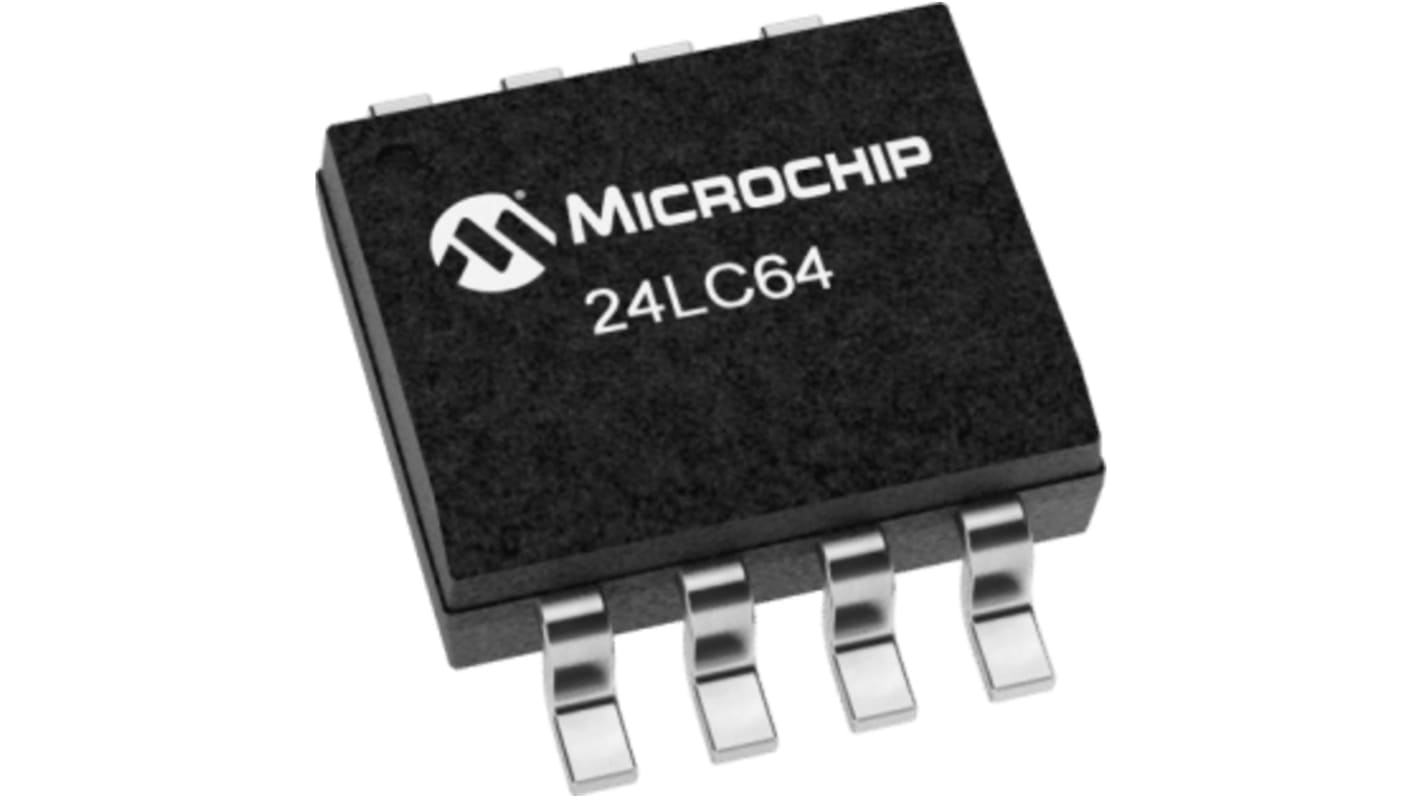

Microchip 24LC64T-I/SN, 64kbit EEPROM Chip, 900ns 8-Pin SOIC Serial-I2C
- RS Stock No.:
- 165-5116
- Mfr. Part No.:
- 24LC64T-I/SN
- Brand:
- Microchip
3300 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3300)
£0.395
(exc. VAT)
£0.474
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3300 + | £0.395 | £1,303.50 |
| *price indicative | ||
- RS Stock No.:
- 165-5116
- Mfr. Part No.:
- 24LC64T-I/SN
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The Microchip Technology Inc. 24LC64 is a 64Kb I2C™ compatible Serial EEPROM. The device is organized as a single block of 8K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 2.5V, with standby and active currents of only 1 μA and 1 mA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition.
Single-Supply with Operation down to 2.5V
Low-Power CMOS Technology
2-Wire Serial Interface, I2C™ Compatible
Cascadable up to 8 Devices
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 5 ms, typical
Self-timed Erase/Write Cycle
32-Byte Page Write Buffer
Hardware Write-protect
ESD Protection > 4,000V
More than 1 Million Erase/Write Cycles
Data Retention > 200 Years
Factory Programming Available
Low-Power CMOS Technology
2-Wire Serial Interface, I2C™ Compatible
Cascadable up to 8 Devices
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 5 ms, typical
Self-timed Erase/Write Cycle
32-Byte Page Write Buffer
Hardware Write-protect
ESD Protection > 4,000V
More than 1 Million Erase/Write Cycles
Data Retention > 200 Years
Factory Programming Available
Specifications
Attribute | Value |
|---|---|
| Memory Size | 64kbit |
| Interface Type | Serial-I2C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 8K x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 2.5 → 5.5V |
| Number of Bits per Word | 8bit |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Data Retention | >200yr |
| Minimum Operating Temperature | -40 °C |
| Maximum Random Access Time | 900ns |
| Maximum Operating Temperature | +85 °C |
| Number of Words | 8k |
