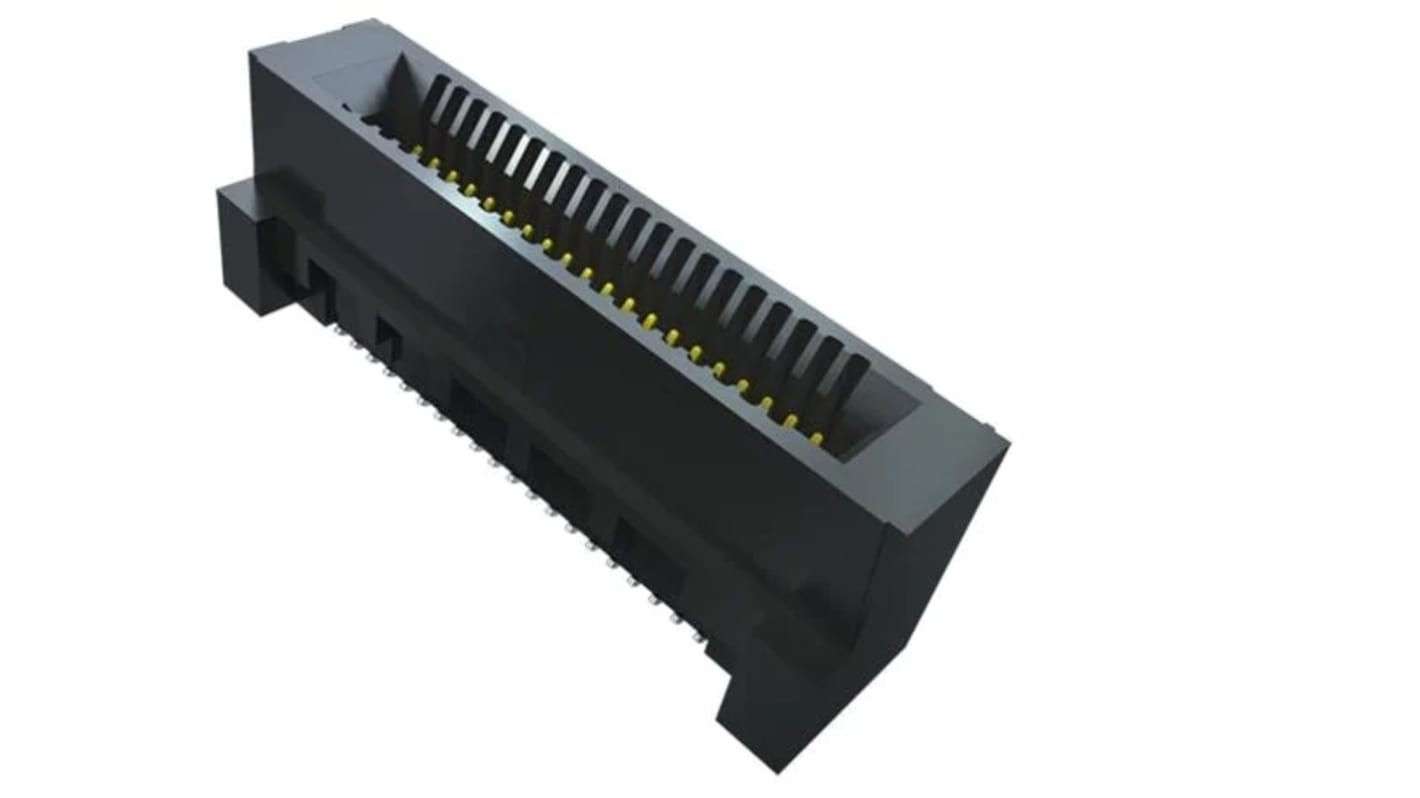

Samtec HSEC8-RA Series Right Angle Female Edge Connector, Surface Mount, 20-Contacts, 0.8mm Pitch, 2-Row
- RS Stock No.:
- 227-1370
- Mfr. Part No.:
- HSEC8-110-01-S-RA-TR
- Brand:
- Samtec
Available to back order for despatch 03/06/2024
Added
Price Each (On a Reel of 325)
£4.194
(exc. VAT)
£5.033
(inc. VAT)
| Units | Per unit | Per Reel* |
| 325 + | £4.194 | £1,363.05 |
| *price indicative | ||
- RS Stock No.:
- 227-1370
- Mfr. Part No.:
- HSEC8-110-01-S-RA-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec HSEC8 series has 10 positions per row and 1 lead style. It has 0.000762mm selective gold on contact area and matte tin on tail.
Right angle row
Tape and reel packaging
Tape and reel packaging
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Right Angle |
| Gender | Female |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Mounting Type | Surface Mount |
| Current Rating | 2.6A |
| Series | HSEC8-RA |
