3M 7E50 Series Straight Edge Connector Female, Surface Mount, 50-Contacts, 0.635 mm Pitch, 1 Row, Solder
- RS Stock No.:
- 455-871
- Mfr. Part No.:
- N7E50-A516PK-20
- Brand:
- 3M
Subtotal (1 pack of 100 units)*
£392.85
(exc. VAT)
£471.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £392.85 | £3.929 |
*price indicative
- RS Stock No.:
- 455-871
- Mfr. Part No.:
- N7E50-A516PK-20
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Edge Connector | |
| Orientation | Straight | |
| Current | 0.5A | |
| Number of Contacts | 50 | |
| Number of Rows | 1 | |
| Connector Gender | Female | |
| Pitch | 0.635mm | |
| Mount Type | Surface Mount | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Voltage | 500Vrms | |
| Contact Gender | Female | |
| Standards/Approvals | CFA, RoHS, UL 94V-0 | |
| Housing Material | Liquid Crystal Polyester | |
| Series | 7E50 | |
| Card Type | Compact Flash Type I | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Edge Connector | ||
Orientation Straight | ||
Current 0.5A | ||
Number of Contacts 50 | ||
Number of Rows 1 | ||
Connector Gender Female | ||
Pitch 0.635mm | ||
Mount Type Surface Mount | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Voltage 500Vrms | ||
Contact Gender Female | ||
Standards/Approvals CFA, RoHS, UL 94V-0 | ||
Housing Material Liquid Crystal Polyester | ||
Series 7E50 | ||
Card Type Compact Flash Type I | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

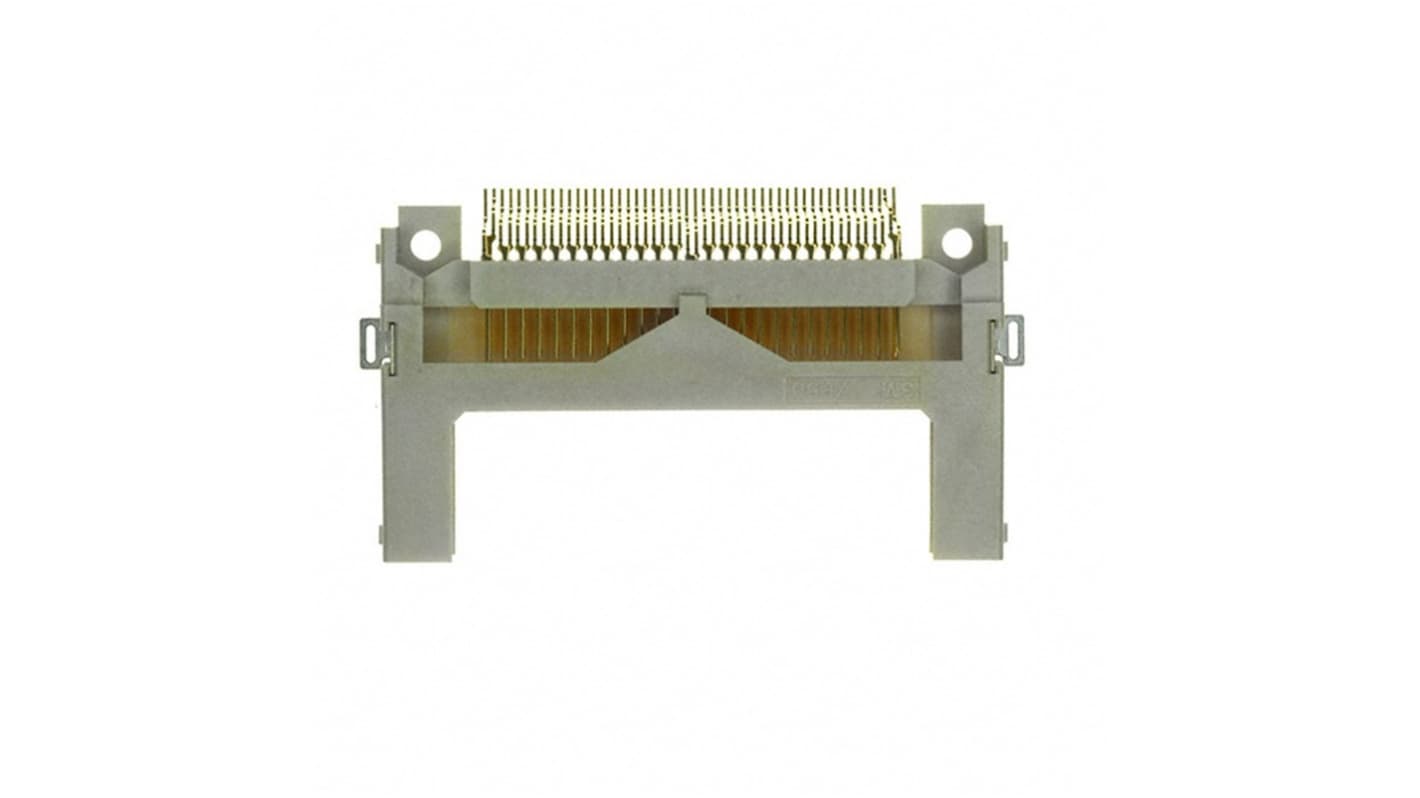

The 3M 50 Position Card Connector is designed for CompactFlash Type I cards, featuring a surface-mount design, right-angle configuration, and gold-plated contacts.
Mounting Type Surface Mount and Right Angle
Features Board Guide and Card Guide
