Fluke 1623-2 Earth Tester Kit, 19.99 kΩ CAT II 300V, RSCAL

View all Earth Testers

Subtotal (1 unit)*

£3,375.00

(exc. VAT)

£4,050.00

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 4 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£3,375.00

*price indicative

RS Stock No.:
797-6822
Mfr. Part No.:
FLUKE-1623-2 KIT
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Product Type

Earth Tester Kit

Maximum Resistance Measurement

19.99kΩ

Accuracy

±2 % rdg + 3 Digits

Measurement Type

Ground Resistance

Display Type

LCD

Battery Life

3000h

Battery Type

AA Alkaline

Power Source

Battery

Weight

1.1kg

Height

133mm

Includes

Batteries, Cable Reel, Carrying Case, User Manual

Length

187mm

Standards/Approvals

IEC61010-1

Maximum Operating Temperature

+50°C

Safety Category Voltage

300V

Safety Category Level

CAT II

Width

250mm

Model Number

1623-2

Minimum Operating Temperature

-10°C

Calibrated

RSCAL

RoHS Status: Exempt

Fluke Earth Tester Kit, 19.99kΩ Maximum Resistance Measurement, ±2% rdg + 3 Digits Accuracy - FLUKE-1623-2 KIT


This earth tester kit is a battery-powered instrument for measuring ground and earth loop resistance in utility, industrial and maintenance settings. It performs 3- and 4-pole fall-of-potential and soil resistivity tests, selective and stakeless clamp-based checks, and stores results for USB download. The unit is designed for outdoor use and portable field work, supplied with accessories for comprehensive site testing.

Features & Benefits


• Measures up to 19.99kΩ for broad resistance range
• LCD display with 1999-digit visibility for clear readings
• Internal memory holds up to 1500 records for data capture
• IP56 protection for use in dusty or wet conditions
• Battery life greater than 3000 measurements with AA alkaline cells
• Stakeless testing with two clamps to save setup time

**Applications**


• Suitable for fault-to-earth impedance assessment in substations
• Ideal for site surveys where stake placement is impractical
• Used for soil resistivity mapping during earthing design
• Can be used for selective testing of individual earthing rods
• Suitable for routine maintenance checks in industrial plants

How does the instrument handle interference from nearby electrical systems?


It includes frequency selection and automatic frequency control to identify and avoid interfering signals and minimise measurement error.

What safety classification applies when working near live equipment?


The instrument meets CAT II 300V limits for external voltage conditions and provides double or reinforced insulation with measurement inhibited above safe thresholds.

What data transfer options are available for job reporting?


Test results are stored in internal memory and can be exported via the USB port for analysis and Record keeping.

How is stakeless measurement performed without disconnecting the earthing system?


One clamp injects a known AC voltage while a second clamp measures current, allowing closed-loop resistance determination without removing bonds.

Supplied with

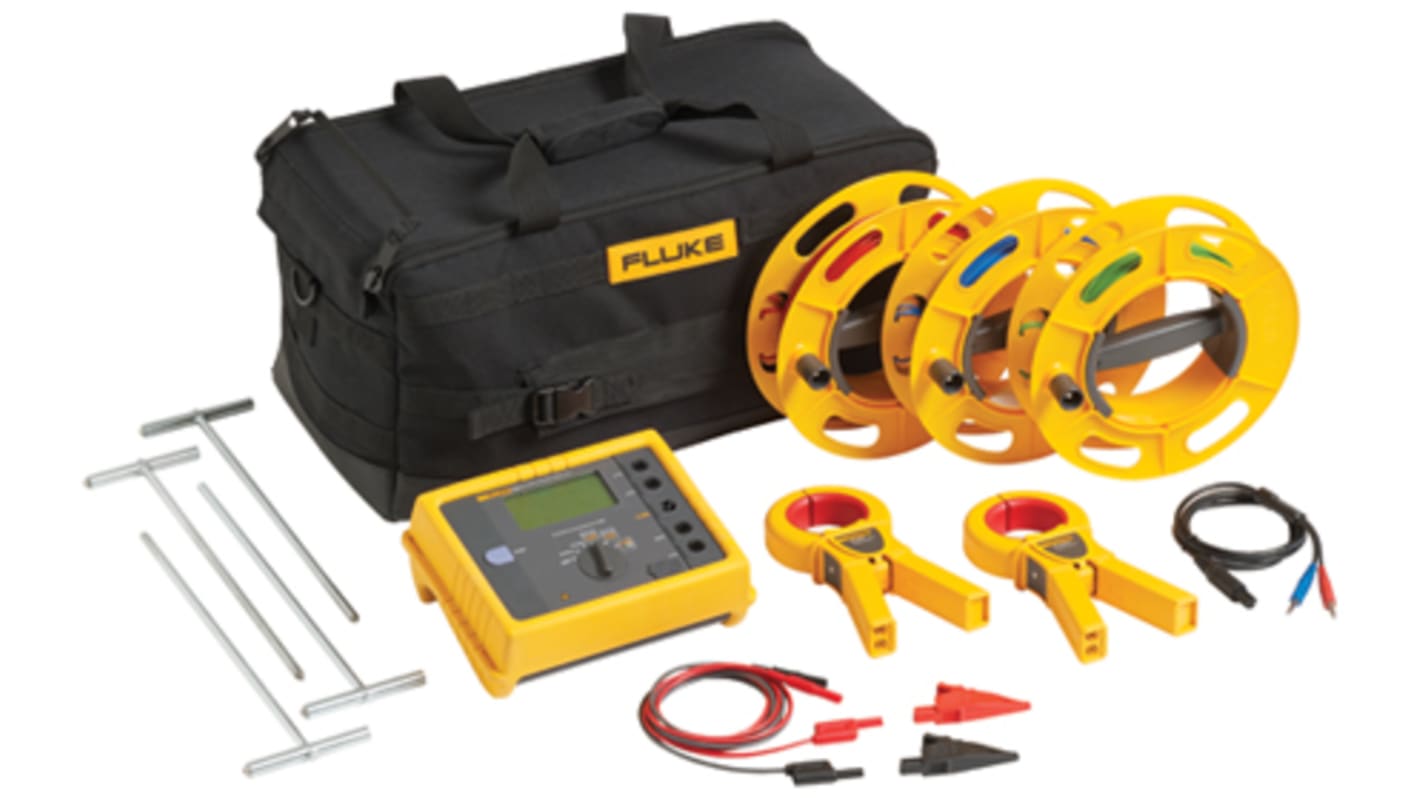

1623-2 GEO Earth Ground Tester, user manual, batteries, quick reference guide, USB cable, 2 clamps, C1620 carrying case, 4 earth ground stakes and 3 cable reels
