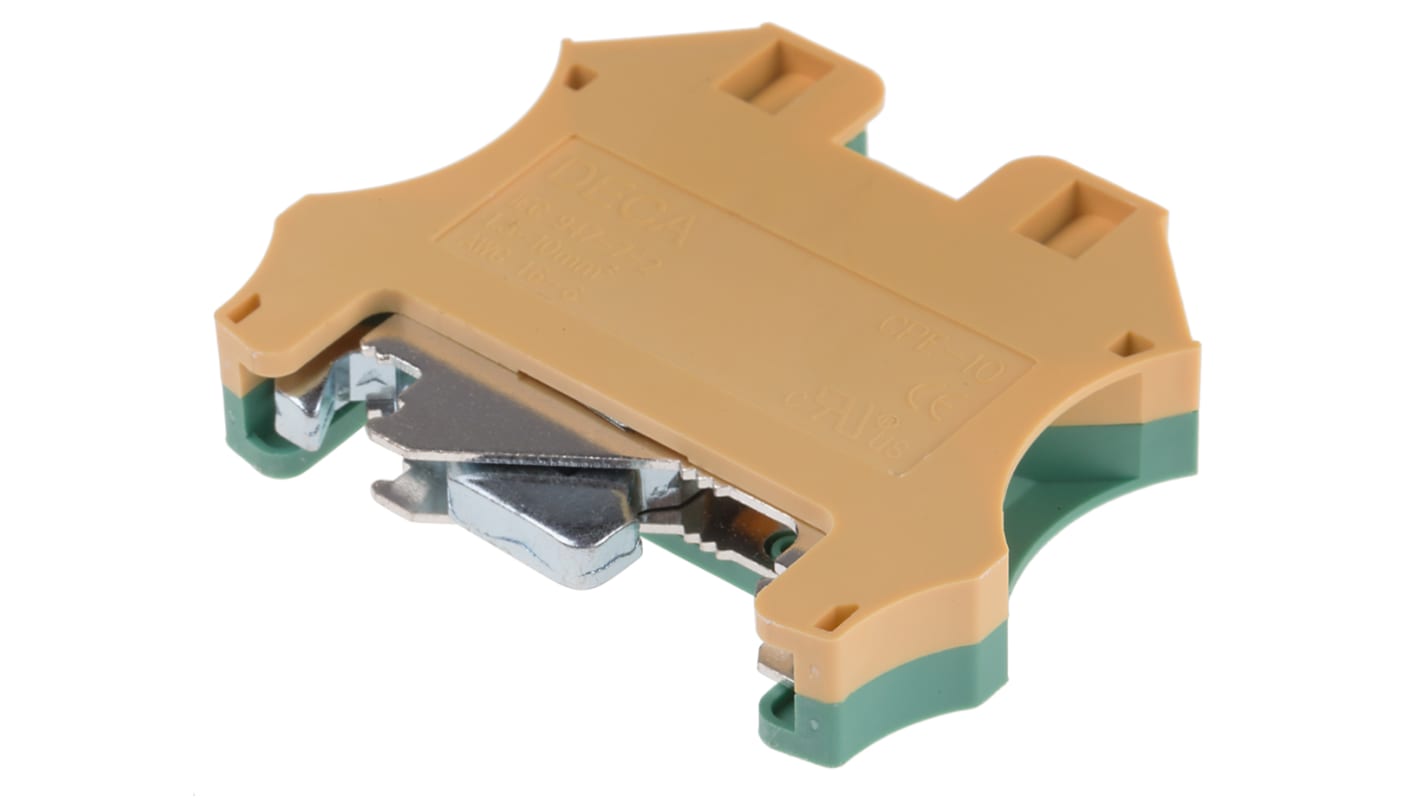

RS PRO 2-Way DIN Rail Earth Block, 10mm², 1.5 mm², 16AWG, 6 AWG Wire, Screw, Polyamide Housing
- RS Stock No.:
- 878-7550
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.54
(exc. VAT)
£4.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,282 unit(s) ready to ship
- Plus 83 unit(s) ready to ship from another location
- Plus 180 unit(s) shipping from 05 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.54 |
*price indicative
- RS Stock No.:
- 878-7550
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Earth Block | |
| Earth Block Type | DIN Rail | |
| Wire Size | 16AWG, 6AWG | |
| Current | 57A | |
| Cable CSA | 10mm², 1.5mm² | |
| Colour | Yellow, Green | |
| Number of Ways | 2 | |
| Housing Material | Polyamide | |
| Voltage | 8kV | |
| Length | 56.7mm | |
| Termination Type | Screw | |
| Width | 46mm | |
| Height | 10.5mm | |
| Standards/Approvals | No | |
| Series | RS PRO | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Earth Block | ||
Earth Block Type DIN Rail | ||
Wire Size 16AWG, 6AWG | ||
Current 57A | ||
Cable CSA 10mm², 1.5mm² | ||
Colour Yellow, Green | ||
Number of Ways 2 | ||
Housing Material Polyamide | ||
Voltage 8kV | ||
Length 56.7mm | ||
Termination Type Screw | ||
Width 46mm | ||
Height 10.5mm | ||
Standards/Approvals No | ||
Series RS PRO | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- TW
Screw Clamp Earth (Ground) Terminal Blocks
Screw connection DIN rail mounted earth terminal blocks
Very low contact resistance
Green/yellow earth colour coding
Suitable for a wide range of cross-section and wire types
Wires can be connected without any special preparation
Vibration proof connection
High reliability and maintenance free
Easy mounting and dismounting from the DIN rail
