RS PRO 2-Way DIN Rail Earth Block, 0.2mm², 4 mm², 10AWG, 26 AWG Wire, Screw, Polyamide Housing
- RS Stock No.:
- 878-7575
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£5.37
(exc. VAT)
£6.445
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5,070 unit(s) shipping from 07 September 2026
- Plus 200 unit(s) shipping from 07 September 2026
- Plus 1,200 unit(s) shipping from 01 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.074 | £5.37 |
*price indicative
- RS Stock No.:
- 878-7575
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Earth Block | |
| Earth Block Type | DIN Rail | |
| Wire Size | 10, 26AWG | |
| Cable CSA | 0.2, 4mm² | |
| Colour | Yellow, Green | |
| Number of Ways | 2 | |
| Housing Material | Polyamide | |
| Voltage | 60V | |
| Length | 42.8mm | |
| Termination Type | Screw | |
| Width | 45.3mm | |
| Height | 6.2mm | |
| Standards/Approvals | No | |
| Series | CP | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Earth Block | ||
Earth Block Type DIN Rail | ||
Wire Size 10, 26AWG | ||
Cable CSA 0.2, 4mm² | ||
Colour Yellow, Green | ||
Number of Ways 2 | ||
Housing Material Polyamide | ||
Voltage 60V | ||
Length 42.8mm | ||
Termination Type Screw | ||
Width 45.3mm | ||
Height 6.2mm | ||
Standards/Approvals No | ||
Series CP | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- TW

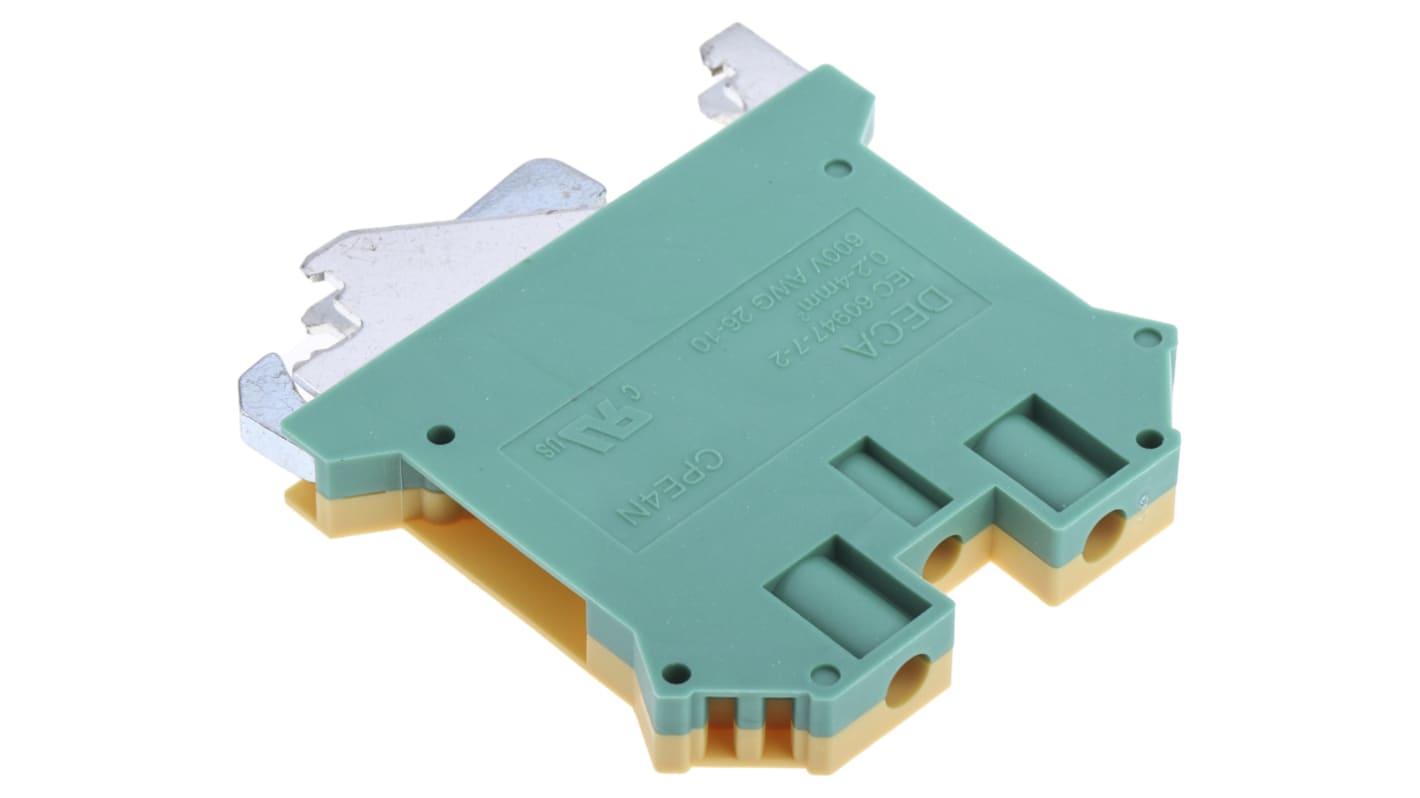

RS PRO 2-Way Screw DIN Rail, 42.8 mm Length, 26 to 10 AWG
Need a way to keep your electrical connections grounded? Use this RS PRO mini DIN rail earth block terminal. It's easy to install and remove, and its small dimensions make it suitable for use in applications where space is limited.
The terminal has screw clamps that let you make secure connections easily and quickly, without the need for any specialised preparation. Its very low contact resistance ensures high-quality transmission for a strong, reliable signal. It also offers excellent resistance to vibration, making it virtually maintenance-free and suitable for use in a variety of industrial applications.
This terminal complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only trace amounts of any harmful materials. You can use this type of terminal block for earthing applications in tight spaces.
Features and Benefits
Mini Screw Clamp Terminal Blocks
Mini DIN rail mounted screw clamp terminal blocks
Suitable for a broad range of cross-section and wire types
Wires can be connected without any special preparations
Easy to handle and safe to connect
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistant
Easy mounting and dismounting from DIN rail
