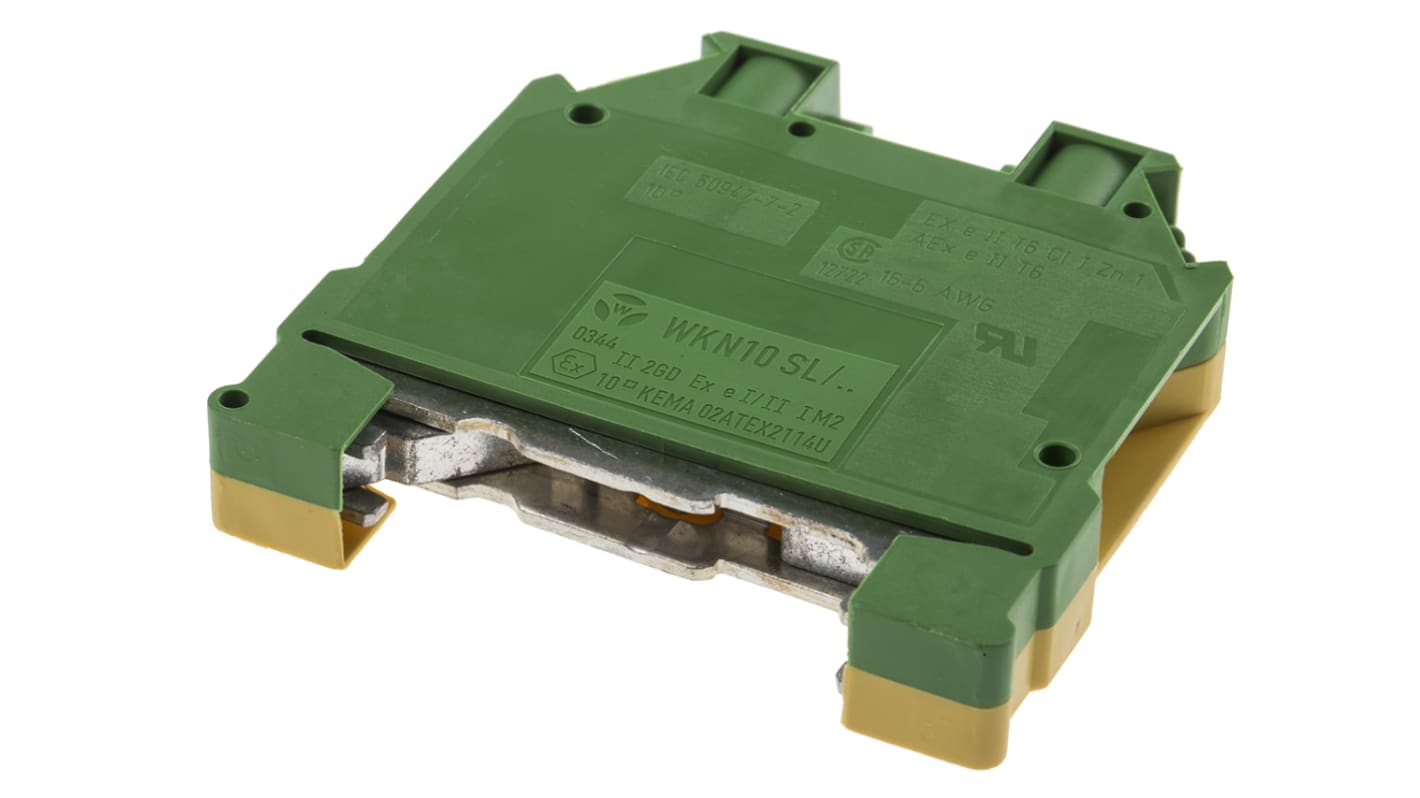

RS PRO 2-Way Earth Terminal Block, 10mm², 16 → 6 AWG Wire, Screw Down, Nylon Housing

View all Earth Terminal Blocks

Subtotal (1 unit)*

£7.69

(exc. VAT)

£9.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 127 unit(s) ready to ship
  • Plus 100 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.69

*price indicative

RS Stock No.:
384-7010
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Wire Size

16 → 6 AWG

Cable CSA

10mm²

Colour

Green/Yellow

Number of Ways

2

Termination Method

Screw Down

Housing Material

Nylon

Current Rating

57A

Voltage Rating

800 V

Length

54mm

Width

10mm

Height

62.5mm

COO (Country of Origin):
DE

High Current Terminals


Fingerproof terminals (to VBG4 requirements)
Flammability rating UL 94-V0
Please note that none of the jumper bars shown in this range are suitable for use with this product
Cable sizes from 6 - 35mm2
Mounting method DIN rail (top hat rail)

Note

End covers (Stock Numbers 384-7054, 384-7060 and 384-7076) are required for the 6, 10 and 18mm2 High Current Terminals (Stock Numbers 384-6972, 384-6988 and 384-6994 respectively)

Approvals

UL, CSA

RS PRO 2-Way Earth Terminal Block, Screw-Down, 16 to 6 AWG, 54 mm


Need a safe way to ground wires in a large electrical system? Use this earth terminal block from RS PRO. For safety, it's fused to protect your component in the event of overcurrent and features a built-in end plate, so no live parts are exposed.


The block body is made from nylon, so it's resistant to corrosion and vibration for a long product life. The bright green and yellow body is flame-retardant and makes the unit immediately identifiable as an earth component, further increasing workplace safety.


This earth block fits a wide range of wire sizes, from 16 to 6 American Wire Gauge (AWG). This means it's a versatile and flexible choice. It can handle the high current and voltage requirements of large-scale electrical wiring, so you can use it in commercial factories, telecommunications exchanges and IT labs.

Features and Benefits



  • Cable cross-sectional area (CSA) of 10 mm²

  • Green/yellow in colour

  • Current rating of 57 A

  • Dimensions of 54 (length) x 10 (width) x 62.5 mm (height)

  • Nylon housing material

  • Two-way

  • Screw-down termination method

  • Voltage rating of 800 V

  • Wire size range of 16 to 6 American Wire Gauge (AWG)


Approvals

UL; CSA
