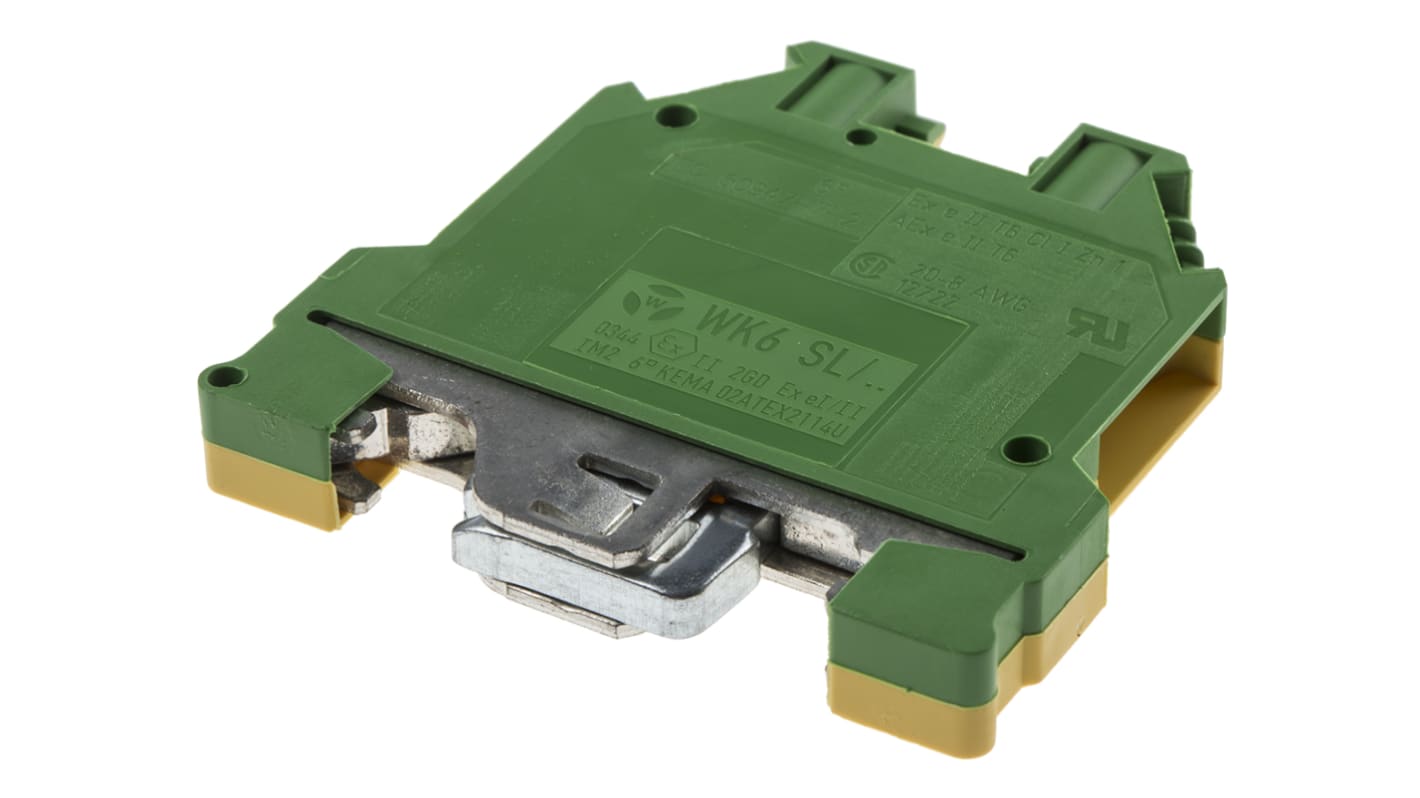

RS PRO 2-Way Earth Terminal Block, 6mm², 20 → 8 AWG Wire, Screw Down, Nylon Housing
- RS Stock No.:
- 384-7004
- Brand:
- RS PRO
414 In stock - FREE next working day delivery available
31 available from Europe for delivery within 1 working day(s).
Added
Price Each
£6.25
(exc. VAT)
£7.50
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £6.25 |
| 15 - 49 | £5.99 |
| 50 + | £5.60 |
- RS Stock No.:
- 384-7004
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
High Current Terminals
Fingerproof terminals (to VBG4 requirements)
Flammability rating UL 94-V0
Please note that none of the jumper bars shown in this range are suitable for use with this product
Cable sizes from 6 - 35mm2
Mounting method DIN rail (top hat rail)
Flammability rating UL 94-V0
Please note that none of the jumper bars shown in this range are suitable for use with this product
Cable sizes from 6 - 35mm2
Mounting method DIN rail (top hat rail)
Note
Approvals
UL, CSA
RS PRO 2-Way Earth Terminal Block, Screw-Down, 20 to 8 AWG, 54 mm
You can use this fused earth terminal block from RS PRO to ground your wires in electrical systems that need fuse protection. It's made from flame-retardant nylon and is green and yellow in colour to clearly mark it as an earth component, increasing workplace safety.
This block features screw-down termination, so you can install it easily without the need for special tools. The screw clamp also fixes wires firmly in place, so they won't come loose. This design ensures safe use and reduces maintenance requirements.
The versatile product fits wires sizes of 20 to 8 AWG (American Wire Gauge), giving you greater flexibility. The high voltage and current ratings mean the block is safe for use in large-scale industrial and commercial electrical set-ups.
This block features screw-down termination, so you can install it easily without the need for special tools. The screw clamp also fixes wires firmly in place, so they won't come loose. This design ensures safe use and reduces maintenance requirements.
The versatile product fits wires sizes of 20 to 8 AWG (American Wire Gauge), giving you greater flexibility. The high voltage and current ratings mean the block is safe for use in large-scale industrial and commercial electrical set-ups.
Features and Benefits
- Cross-sectional area (CSA) of 6 mm²
- Green/yellow in colour
- Current rating of 41 A
- Dimensions of 54 (length) x 8 (width) x 61.5 mm (height)
- Nylon housing material
- Two-way
- Screw-down termination method
- Voltage rating of 800 V
- Wire size range of 20 to 8 American Wire Gauge (AWG)
Approvals
UL; CSA
Specifications
Attribute | Value |
|---|---|
| Wire Size | 20 → 8 AWG |
| Cable CSA | 6mm² |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Nylon |
| Current Rating | 41A |
| Voltage Rating | 800 V |
| Length | 54mm |
| Width | 8mm |
| Height | 61.5mm |
