Phoenix Contact 2-Way DIN Rail Ground Terminal Block, 10mm², 10AWG, 20 AWG Wire, Push-in, Polyamide Housing
- RS Stock No.:
- 204-7762
- Mfr. Part No.:
- 3212196
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£700.80
(exc. VAT)
£840.95
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £14.016 | £700.80 |
*price indicative
- RS Stock No.:
- 204-7762
- Mfr. Part No.:
- 3212196
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ground Terminal Block | |
| Earth Block Type | DIN Rail | |
| Wire Size | 10AWG, 20AWG | |
| Cable CSA | 10mm² | |
| Colour | Yellow, Green | |
| Number of Ways | 2 | |
| Housing Material | Polyamide | |
| Voltage | 6kV | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Length | 100.8mm | |
| Maximum Operating Temperature | 105°C | |
| Width | 8.2mm | |
| Standards/Approvals | No | |
| Series | PTMED | |
| Height | 57.1mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ground Terminal Block | ||
Earth Block Type DIN Rail | ||
Wire Size 10AWG, 20AWG | ||
Cable CSA 10mm² | ||
Colour Yellow, Green | ||
Number of Ways 2 | ||
Housing Material Polyamide | ||
Voltage 6kV | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Length 100.8mm | ||
Maximum Operating Temperature 105°C | ||
Width 8.2mm | ||
Standards/Approvals No | ||
Series PTMED | ||
Height 57.1mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- PL

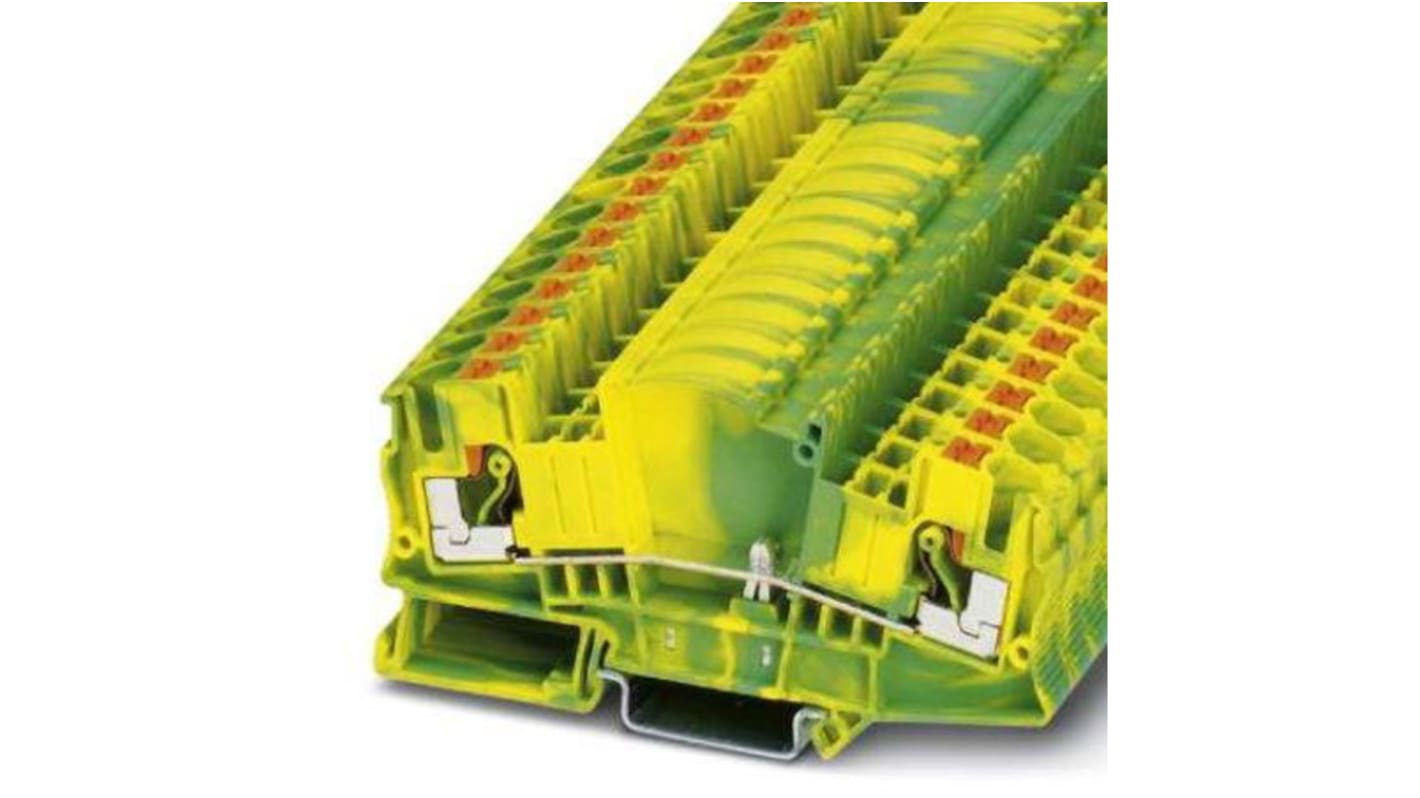

The Phoenix contact ground modular terminal block has a push-in connection and wire size 20 - 10.
Push-in connection method
Mounting type NS 35/7,5, NS 35/15
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
