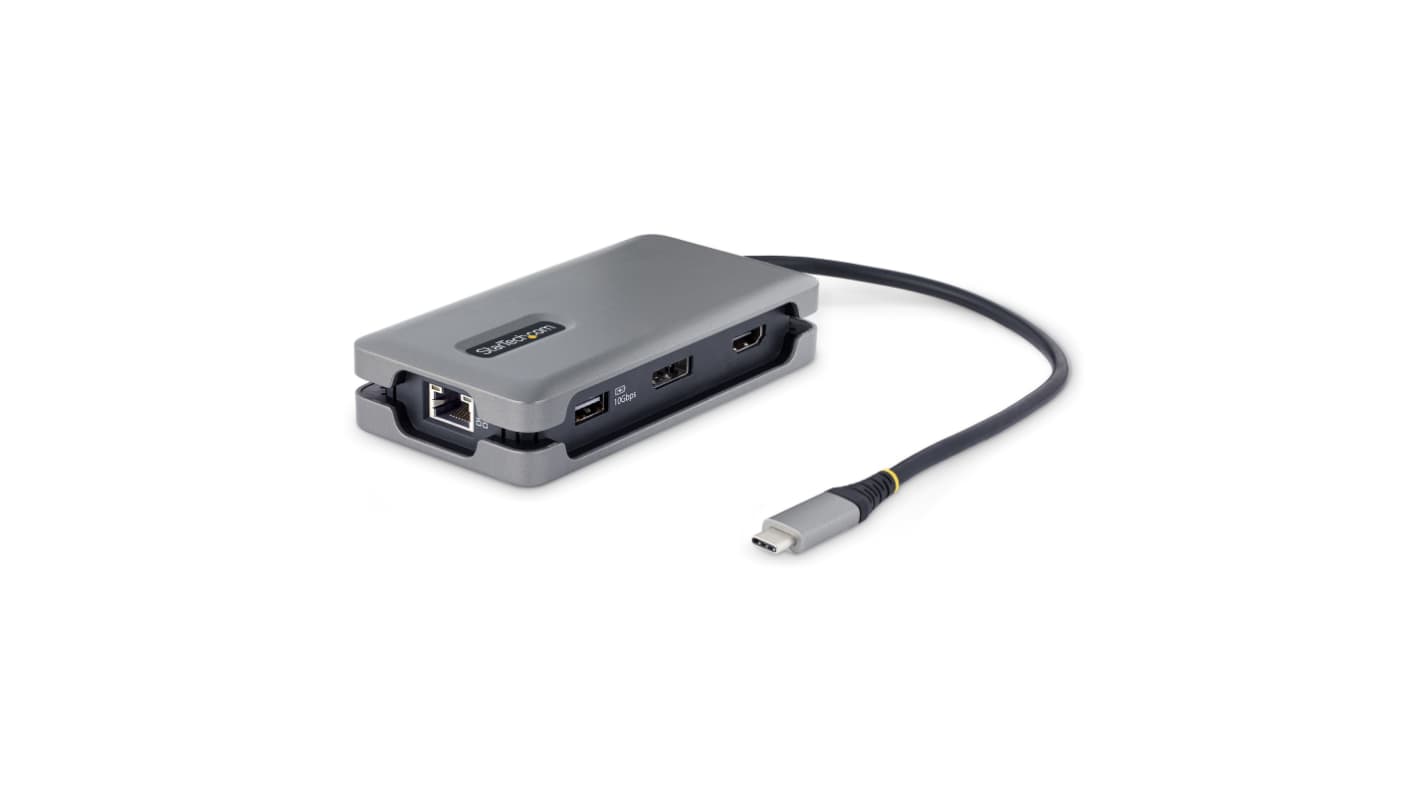

The StarTech.com USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display HDMI 2.0b or DisplayPort 1.4 video output via DP Alt Mode, supporting resolutions up to 4K 60Hz. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 Hub, and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery 3.0 port, to charge the laptop. Extra-Long Cable with Built-in Cable Manager The Multiport Adapter features an extra-long attached 12.6in. USB-C host cable. The Thermoplastic Elastomer cable jacket is softer and more flexible than PVC jacketed cables.

In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.USB 3.2 Gen 2 Hub Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 ports. A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter for laptop charging.USB PD 3.0 features Fast Role Swap to prevent USB data disruption when disconnecting the power source. Wired Gigabit Network Connectivity The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security.

USB-C MINI DOCKING STATION: USBC to HDMI 2.0b or DisplayPort for connectivity to a UHD monitor or display, 100W Power Delivery Pass Through, 3 Port USB 3.2 hub

Ideal for travel between the home and office
Connect a USB-C power adapter to charge a laptop while using the multiport adapter

1 USB-C Multiport Adapter
1 Quick-Start Guide

Why are my USB peripherals disconnecting on high power draw? This product features Overcurrent Protection on the downstream USB ports and the device may cut power to peripherals connected to the ports if they exceed the maximum allotted current. The USB ports support the respective rated current in Table A below, however the overall device power output is limited by the host or (if included) power connection.
Table A. USB port voltage and current ratings.
Specification
Connector
Output Voltage (VDC)
Rated Current (mA)
USB 1.1

USB-A

4.40 - 5.25
500



USB 2.0

USB-A
4.40 - 5.25
500


USB 3.2 (1 lane)
USB-A

USB-C spec supersedes the USB 3.2 spec for current limitations.
If Overcurrent Protection is activated but then the current draw on the downstream device drops back below an acceptable level, the USB device will reconnect. This may result in a continuous connection/disconnection cycle. To stop the cycle, disconnect the device from the product for 15-20 seconds and then reconnect it to a different USB port. If the connection/disconnection cycle occurs again, even when device is connected to a different or higher powered USB port on the product, then the USB device is not compatible with this product.
