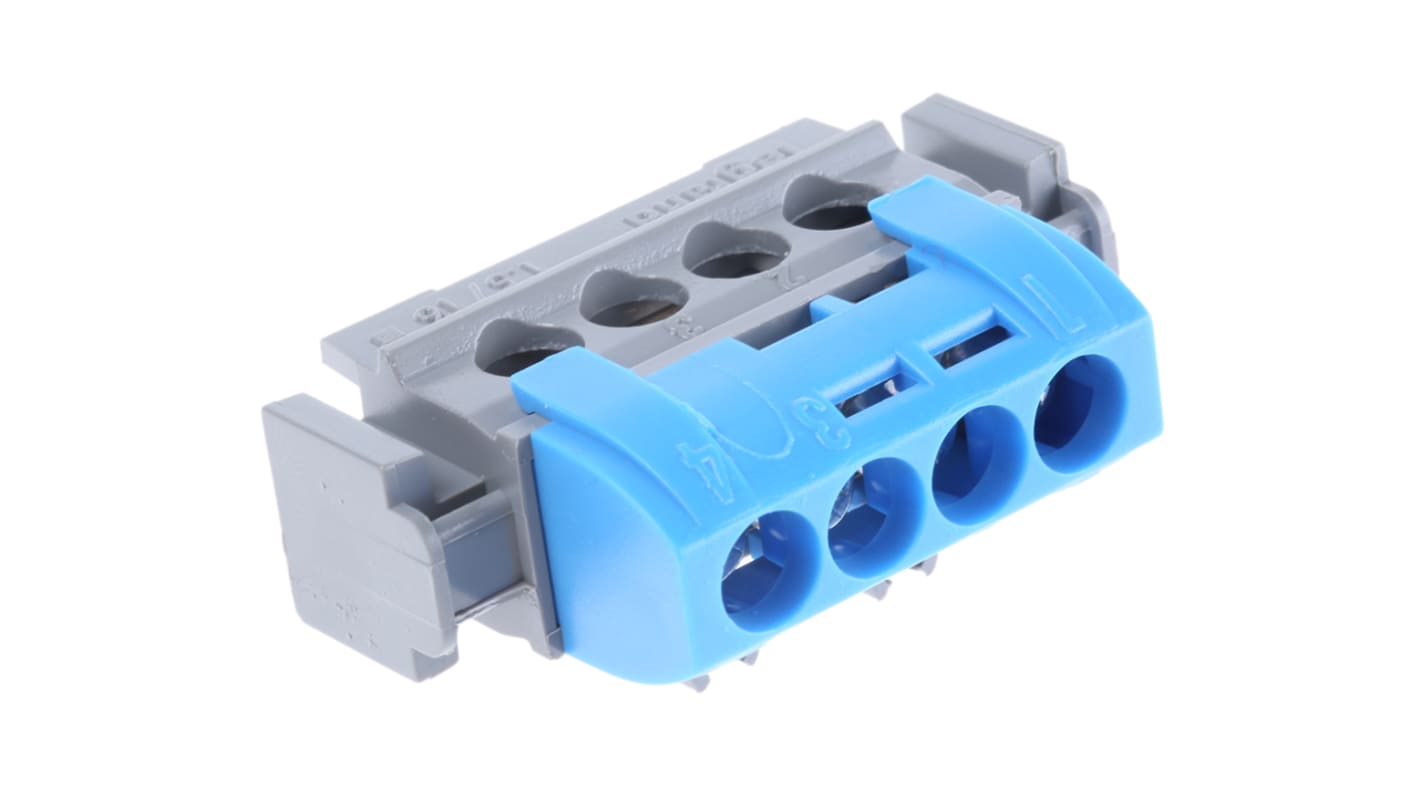

Legrand Distribution Block, 4 Way, 400V ac, 80A, Blue
- RS Stock No.:
- 705-5533
- Mfr. Part No.:
- 0 048 40
- Brand:
- Legrand
Subtotal (1 unit)*
£10.26
(exc. VAT)
£12.31
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 18 unit(s) shipping from 11 May 2026
- Plus 68 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.26 |
*price indicative
- RS Stock No.:
- 705-5533
- Mfr. Part No.:
- 0 048 40
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Number of Ways | 4 | |
| Product Type | Distribution Block | |
| Current | 80A | |
| Housing Material | Polycarbonate | |
| IP Rating | IP20 | |
| Voltage | 400V ac | |
| Minimum Operating Temperature | -5°C | |
| Termination Type - Load Side | Screw | |
| Wire Size - Load Side | 16 mm² | |
| Connections Per Pole - Load Side | 33 | |
| Connections Per Pole - Line Side | 1 | |
| Termination Type - Line Side | Screw | |
| Wire Size - Line Side | 25 mm² | |
| Colour | Blue | |
| Standards/Approvals | No | |
| Length | 47mm | |
| Maximum Operating Temperature | 40°C | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Number of Ways 4 | ||
Product Type Distribution Block | ||
Current 80A | ||
Housing Material Polycarbonate | ||
IP Rating IP20 | ||
Voltage 400V ac | ||
Minimum Operating Temperature -5°C | ||
Termination Type - Load Side Screw | ||
Wire Size - Load Side 16 mm² | ||
Connections Per Pole - Load Side 33 | ||
Connections Per Pole - Line Side 1 | ||
Termination Type - Line Side Screw | ||
Wire Size - Line Side 25 mm² | ||
Colour Blue | ||
Standards/Approvals No | ||
Length 47mm | ||
Maximum Operating Temperature 40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Commoning terminals - IP 2X
Commoning terminals equipped with plastic housing to provide IP 2X protection.
These terminals are supplied with captive screws that have been loosened to facilitate mounting.
May be mounted on DIN rail, support or 12 x 2 flat bar
Standards
IEC 998-2-1
