nVent ERIFLEX Distribution Block, 4 Way, 500 V, 100A, Blue
- RS Stock No.:
- 277-6171
- Mfr. Part No.:
- 563930
- Brand:
- nVent ERIFLEX
Subtotal (1 unit)*
£31.85
(exc. VAT)
£38.22
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- 2 unit(s) shipping from 16 March 2026
- Plus 4 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.85 |
*price indicative
- RS Stock No.:
- 277-6171
- Mfr. Part No.:
- 563930
- Brand:
- nVent ERIFLEX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent ERIFLEX | |
| Number of Ways | 4 | |
| Product Type | Distribution Block | |
| Current | 100A | |
| Housing Material | Thermoplastic | |
| Voltage | 500 V | |
| Termination Type - Line Side | Screw | |
| Connections Per Pole - Line Side | 2 | |
| Minimum Operating Temperature | 30°C | |
| Wire Size - Line Side | 8/4 AWG | |
| Connections Per Pole - Load Side | 9 | |
| Colour | Blue | |
| Standards/Approvals | IEC 60947-7-1 | |
| Width | 100 mm | |
| Length | 90mm | |
| Height | 90mm | |
| Maximum Operating Temperature | 75°C | |
| Select all | ||
|---|---|---|
Brand nVent ERIFLEX | ||
Number of Ways 4 | ||
Product Type Distribution Block | ||
Current 100A | ||
Housing Material Thermoplastic | ||
Voltage 500 V | ||
Termination Type - Line Side Screw | ||
Connections Per Pole - Line Side 2 | ||
Minimum Operating Temperature 30°C | ||
Wire Size - Line Side 8/4 AWG | ||
Connections Per Pole - Load Side 9 | ||
Colour Blue | ||
Standards/Approvals IEC 60947-7-1 | ||
Width 100 mm | ||
Length 90mm | ||
Height 90mm | ||
Maximum Operating Temperature 75°C | ||
- COO (Country of Origin):
- CN

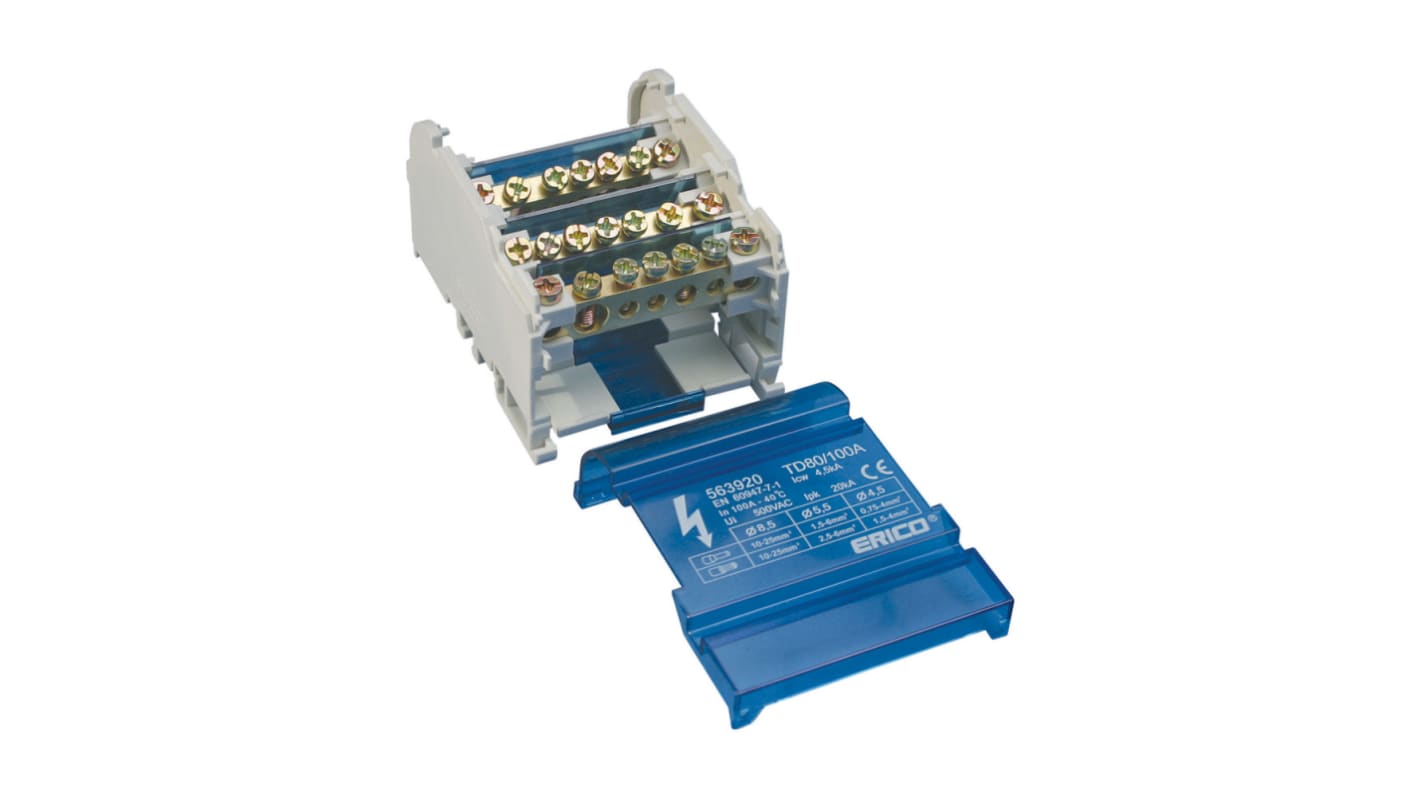

The nVent ERIFLEX Four pole Distribution Block can be easily clipped onto DIN rail or mounts to panel with screws. It has protection cover and insulating screens which are transparent. It allows easy and safe connections.
Minimum space for maximum power
RoHS compliant
Halogen free
Solid bars provide reliability
