Socomec Distribution Block, 4 Way, 1000 V, 630A, White
- RS Stock No.:
- 252-3615
- Mfr. Part No.:
- 54114063
- Brand:
- Socomec
Subtotal (1 unit)*
£273.08
(exc. VAT)
£327.70
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £273.08 |
*price indicative
- RS Stock No.:
- 252-3615
- Mfr. Part No.:
- 54114063
- Brand:
- Socomec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Socomec | |
| Number of Ways | 4 | |
| Product Type | Distribution Block | |
| Current | 630A | |
| Voltage | 1000 V | |
| Connections Per Pole - Load Side | 8 | |
| Termination Type - Load Side | Lug | |
| Termination Type - Line Side | Lug | |
| Connections Per Pole - Line Side | 1 | |
| Wire Size - Line Side | 240 mm² | |
| Colour | White | |
| Length | 346mm | |
| Standards/Approvals | IEC, UL | |
| Width | 117 mm | |
| Height | 528mm | |
| Select all | ||
|---|---|---|
Brand Socomec | ||
Number of Ways 4 | ||
Product Type Distribution Block | ||
Current 630A | ||
Voltage 1000 V | ||
Connections Per Pole - Load Side 8 | ||
Termination Type - Load Side Lug | ||
Termination Type - Line Side Lug | ||
Connections Per Pole - Line Side 1 | ||
Wire Size - Line Side 240 mm² | ||
Colour White | ||
Length 346mm | ||
Standards/Approvals IEC, UL | ||
Width 117 mm | ||
Height 528mm | ||
- COO (Country of Origin):
- FR

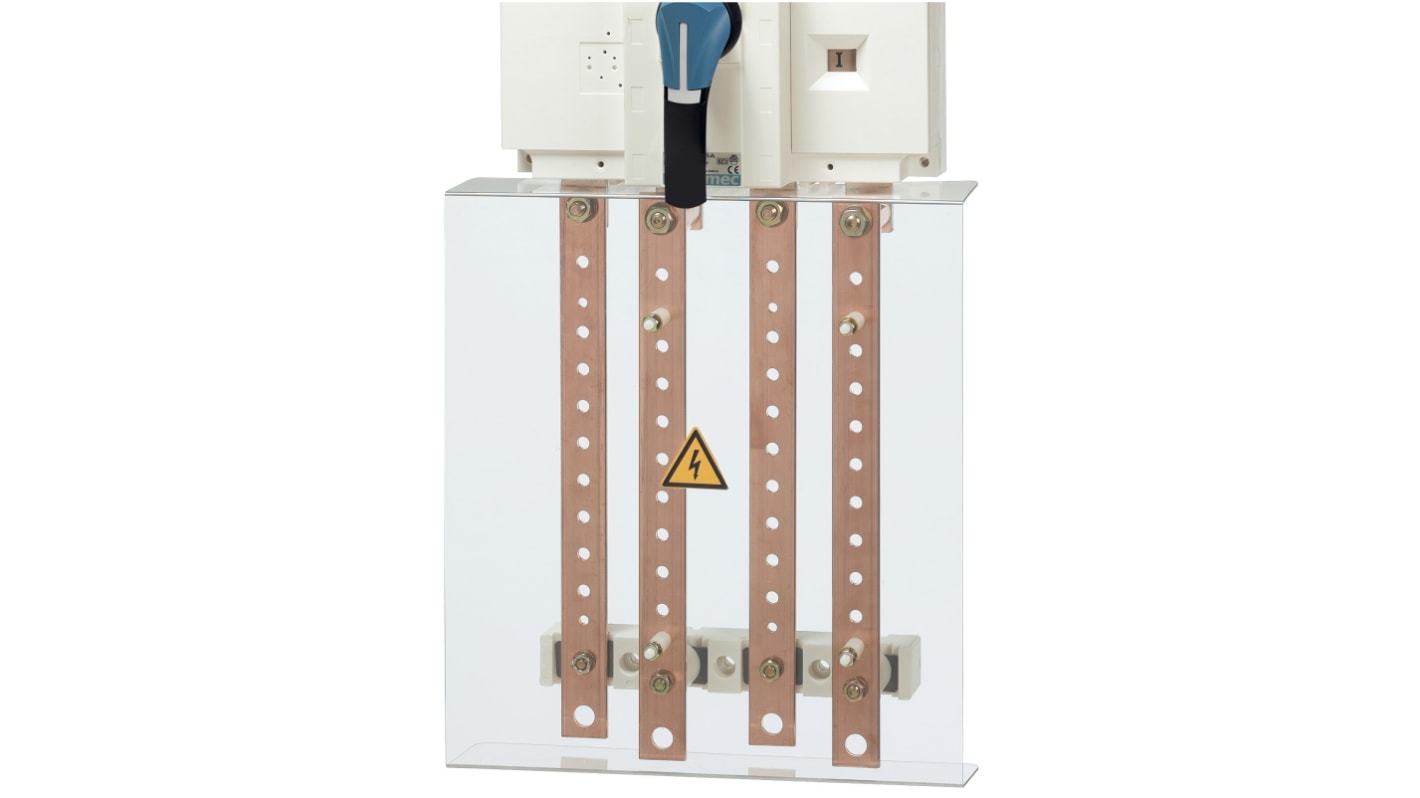

The Socomec multi pole distribution block for SIRCO series devices . It makes it easy to connect conductors. It is mounted downstream of a load break switch, a changeover switch, a fuse switch or any protection device on the market.
Conforms to IEC and UL standards
Easy integration into the equipment
Current rating of 630 A
