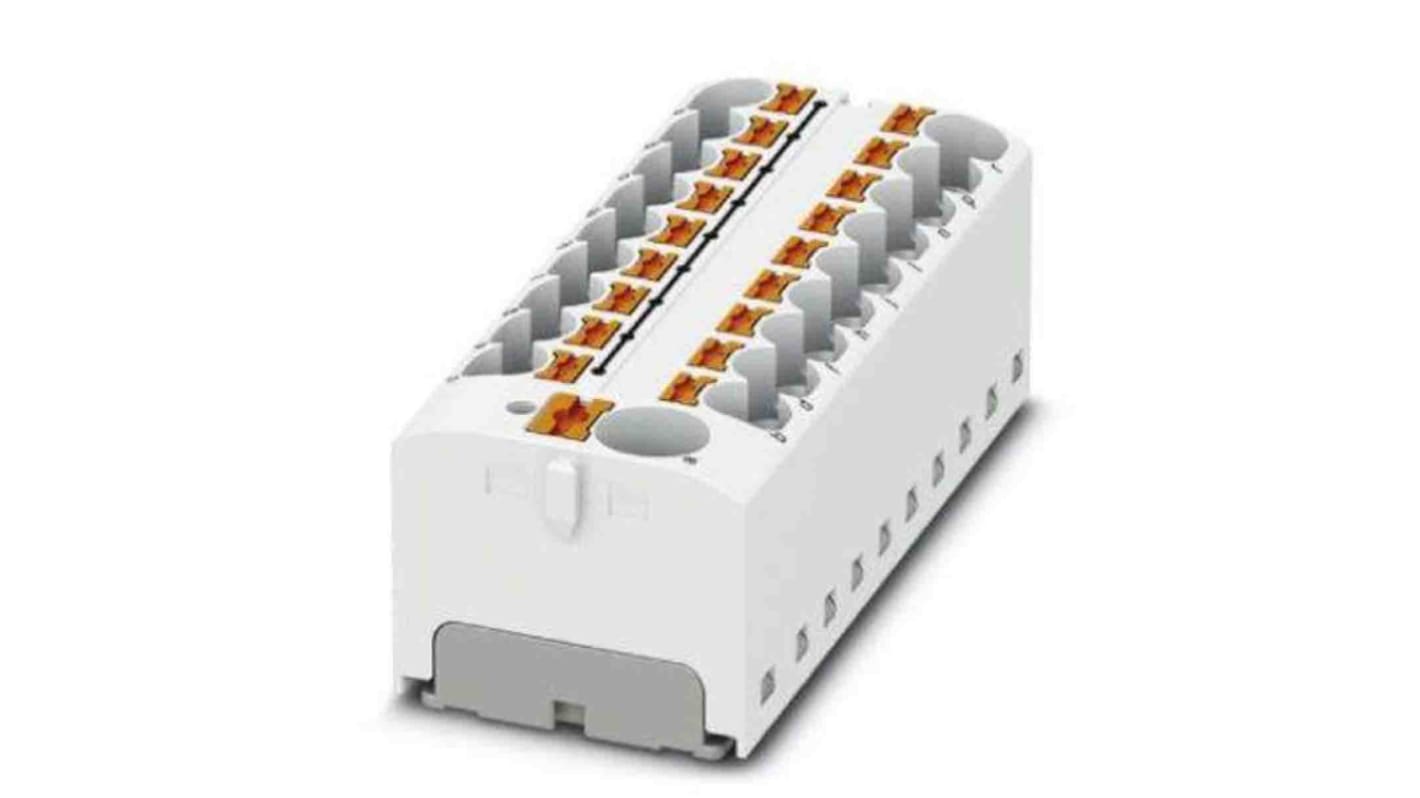

Phoenix Contact Distribution Block, 19 Way, 6mm², 32A, 450 V, White
- RS Stock No.:
- 201-6798
- Mfr. Part No.:
- 3273912
- Brand:
- Phoenix Contact
Available to back order for despatch 07/08/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each (In a Pack of 8)
£9.738
(exc. VAT)
£11.686
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 8 + | £9.738 | £77.904 |
*price indicative
- RS Stock No.:
- 201-6798
- Mfr. Part No.:
- 3273912
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used DIN rail adapter mounting type. It can be used straight away and expanded as needed. It has 19 way of connection and its width is 64.8mm. It can be bridged internally and its colour is white.
Ambient temperature is -60 °C to 85 °C
Number of level is 1
Rated surge voltage is 6kV
Number of level is 1
Rated surge voltage is 6kV
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
Specifications
Attribute | Value |
|---|---|
| Number of Ways | 19 |
| Termination Method | Push In |
| Wire Size | 10 AWG |
| Housing Material | Polyamide |
| IP Rating | IP20 |
| Current Rating | 32A |
| Voltage Rating | 450 V |
| Cable CSA | 6mm² |
| Colour | White |
