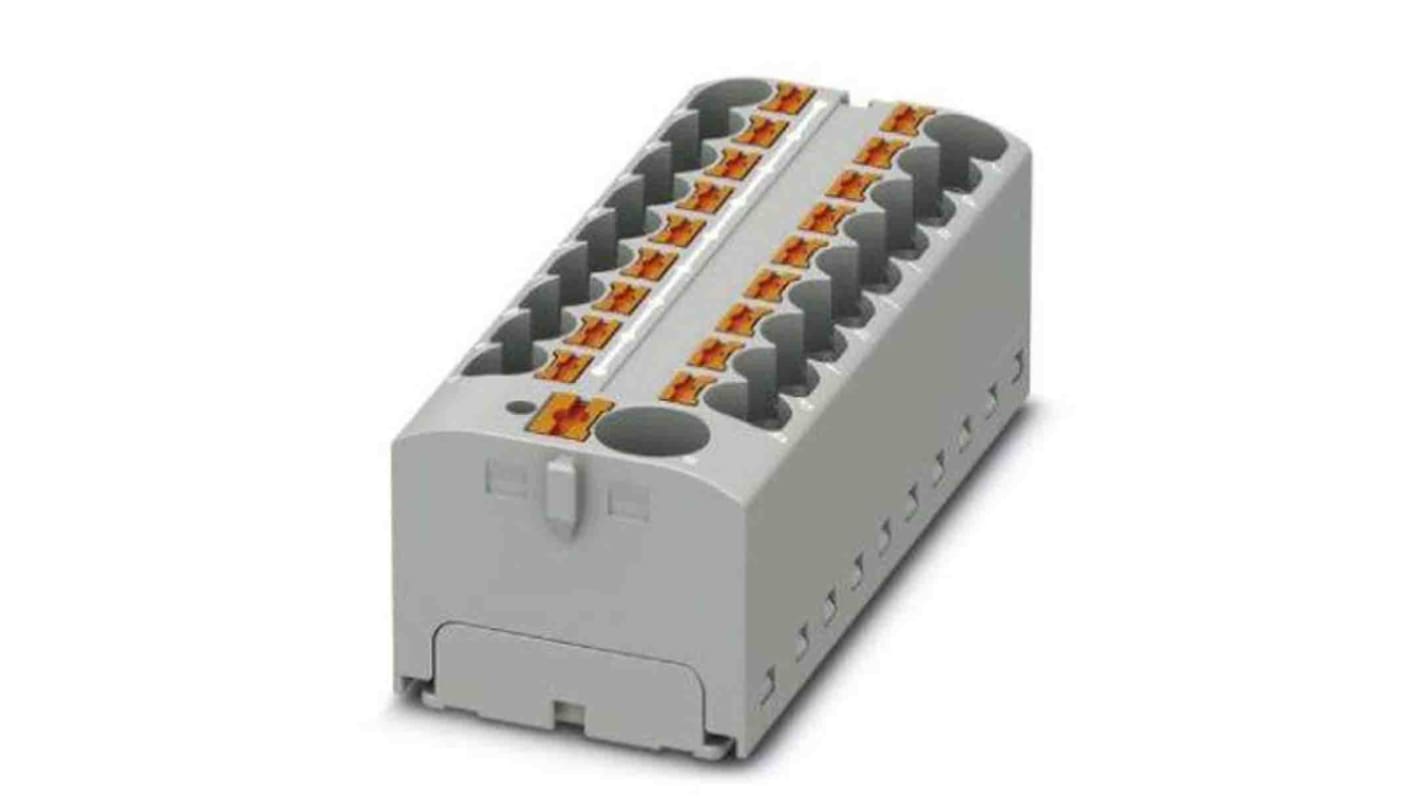

Phoenix Contact Distribution Block, 19 Way, 450 V, 32A, Grey
- RS Stock No.:
- 201-6154
- Mfr. Part No.:
- 3273900
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£68.08
(exc. VAT)
£81.68
(inc. VAT)
Add 8 units to get free delivery
In Stock
- Plus 24 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 8 + | £8.51 | £68.08 |
*price indicative
- RS Stock No.:
- 201-6154
- Mfr. Part No.:
- 3273900
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 19 | |
| Product Type | Distribution Block | |
| Current | 32A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 450 V | |
| Termination Type - Line Side | Push-in | |
| Wire Size - Line Side | 10 AWG | |
| Wire Size - Load Side | 10 AWG | |
| Termination Type - Load Side | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Colour | Grey | |
| Length | 28.6mm | |
| Height | 30.9mm | |
| Width | 28.6 mm | |
| Maximum Operating Temperature | 105°C | |
| Series | PTFIX | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 19 | ||
Product Type Distribution Block | ||
Current 32A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 450 V | ||
Termination Type - Line Side Push-in | ||
Wire Size - Line Side 10 AWG | ||
Wire Size - Load Side 10 AWG | ||
Termination Type - Load Side Push-in | ||
Minimum Operating Temperature -60°C | ||
Colour Grey | ||
Length 28.6mm | ||
Height 30.9mm | ||
Width 28.6 mm | ||
Maximum Operating Temperature 105°C | ||
Series PTFIX | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used DIN rail adapter mounting type. It can be used straight away and expanded as needed. It has 19 way of connection and its width is 64.8mm. It can be bridged internally and its colour is grey.
Ambient temperature is -60 °C to 85 °C
Number of level is 1
Rated surge voltage is 6kV
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
