Phoenix Contact Distribution Block, 12 Way, 450 V, 32A, Green
- RS Stock No.:
- 201-5839
- Mfr. Part No.:
- 3273952
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£50.792
(exc. VAT)
£60.952
(inc. VAT)
Add 8 units to get free delivery
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 8 + | £6.349 | £50.79 |
*price indicative
- RS Stock No.:
- 201-5839
- Mfr. Part No.:
- 3273952
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Distribution Block | |
| Number of Ways | 12 | |
| Current | 32A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 450 V | |
| Wire Size - Load Side | 10 AWG | |
| Termination Type - Load Side | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Wire Size - Line Side | 10 AWG | |
| Termination Type - Line Side | Push-in | |
| Colour | Green | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 105°C | |
| Height | 30.9mm | |
| Length | 28.6mm | |
| Width | 28.6 mm | |
| Series | PTFIX | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Distribution Block | ||
Number of Ways 12 | ||
Current 32A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 450 V | ||
Wire Size - Load Side 10 AWG | ||
Termination Type - Load Side Push-in | ||
Minimum Operating Temperature -60°C | ||
Wire Size - Line Side 10 AWG | ||
Termination Type - Line Side Push-in | ||
Colour Green | ||
Standards/Approvals No | ||
Maximum Operating Temperature 105°C | ||
Height 30.9mm | ||
Length 28.6mm | ||
Width 28.6 mm | ||
Series PTFIX | ||

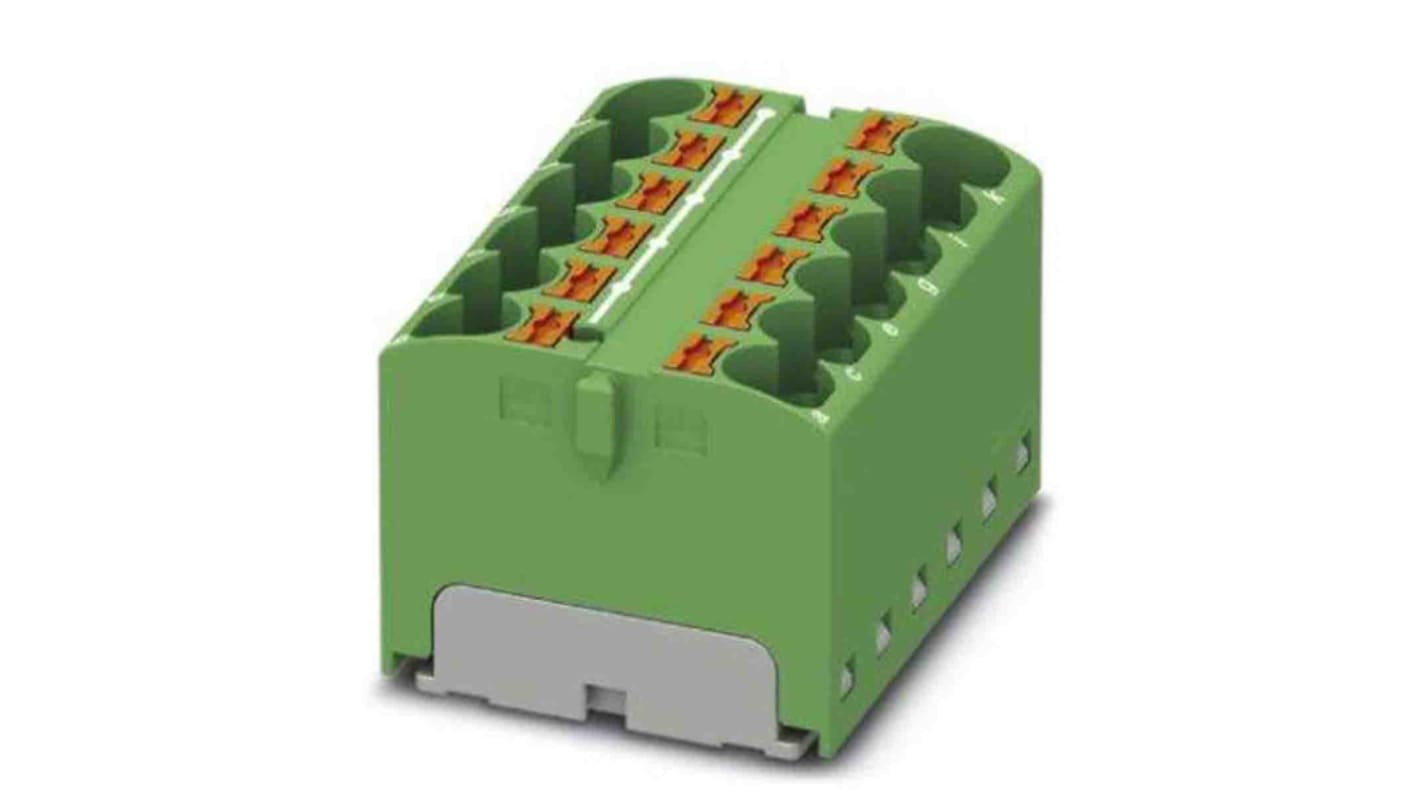

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used adhesive mounting type. It can be used straight away and expanded as needed. It has 12 way of connection and its width is 36.9mm. The block can be bridged with one another via the conductor shaft and aligned with standard plug-in bridge.
Number of level is 1
Rated surge voltage is 6kV
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
