Phoenix Contact Distribution Block, 12 Way, 450 V, 32A, Blue
- RS Stock No.:
- 201-5856
- Mfr. Part No.:
- 3273814
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£42.344
(exc. VAT)
£50.816
(inc. VAT)
Add 16 units to get free delivery
In Stock
- 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 8 + | £5.293 | £42.34 |
*price indicative
- RS Stock No.:
- 201-5856
- Mfr. Part No.:
- 3273814
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 12 | |
| Product Type | Distribution Block | |
| Current | 32A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 450 V | |
| Connections Per Pole - Load Side | 12 | |
| Termination Type - Load Side | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Termination Type - Line Side | Push-in | |
| Connections Per Pole - Line Side | 12 | |
| Wire Size - Line Side | 24 to 10 AWG | |
| Wire Size - Load Side | 24 to 10 AWG | |
| Colour | Blue | |
| Length | 28.6mm | |
| Maximum Operating Temperature | 105°C | |
| Height | 22.7mm | |
| Series | PTFIX | |
| Standards/Approvals | No | |
| Width | 28.6 mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 12 | ||
Product Type Distribution Block | ||
Current 32A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 450 V | ||
Connections Per Pole - Load Side 12 | ||
Termination Type - Load Side Push-in | ||
Minimum Operating Temperature -60°C | ||
Termination Type - Line Side Push-in | ||
Connections Per Pole - Line Side 12 | ||
Wire Size - Line Side 24 to 10 AWG | ||
Wire Size - Load Side 24 to 10 AWG | ||
Colour Blue | ||
Length 28.6mm | ||
Maximum Operating Temperature 105°C | ||
Height 22.7mm | ||
Series PTFIX | ||
Standards/Approvals No | ||
Width 28.6 mm | ||
- COO (Country of Origin):
- PL

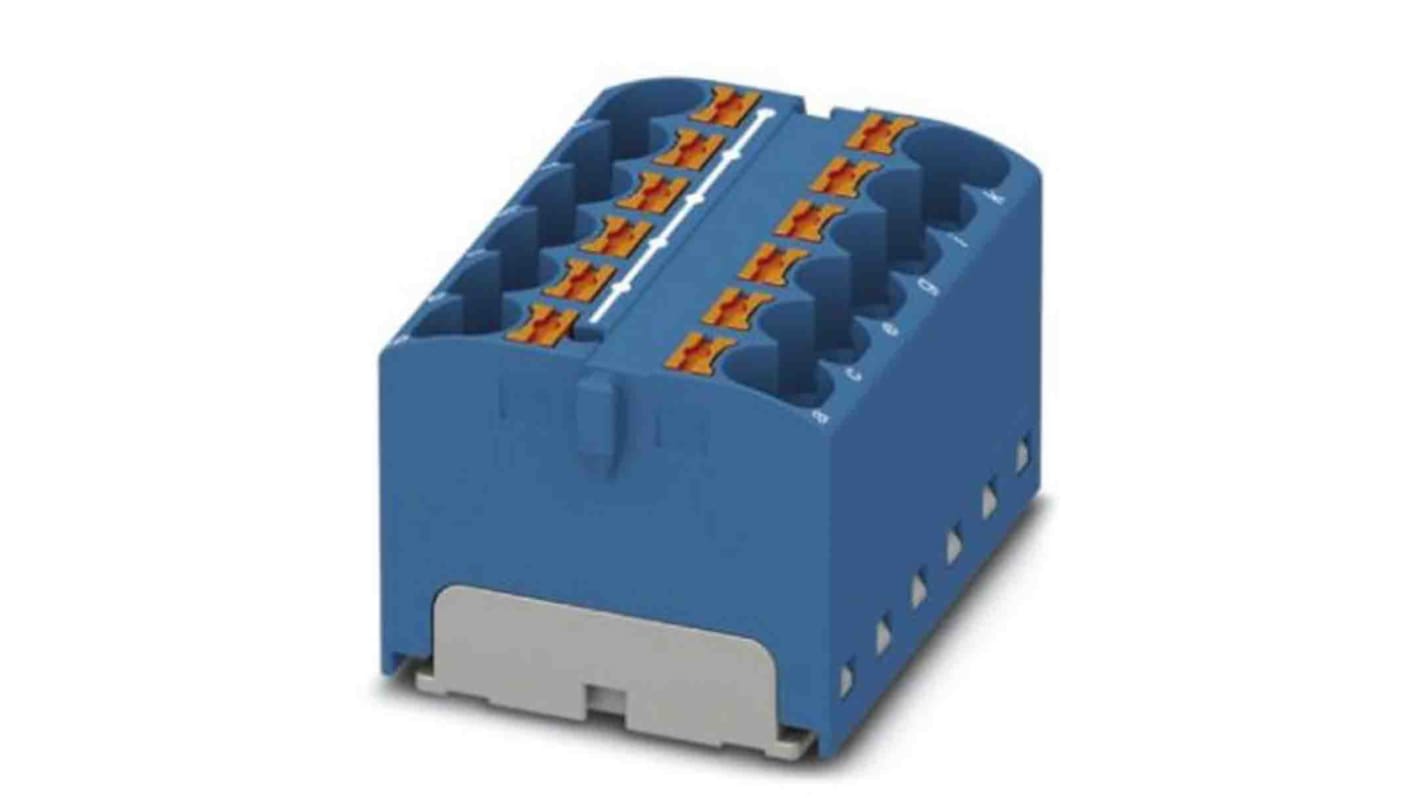

The Phoenix 450V distribution block has flexible use and clear wiring. It is basic terminal block with supply that can be bridged with one another via the conductor shaft with corresponding plug-in bridges.
Degree of pollution 3
Overvoltage category III
Time saving
Space saving
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
