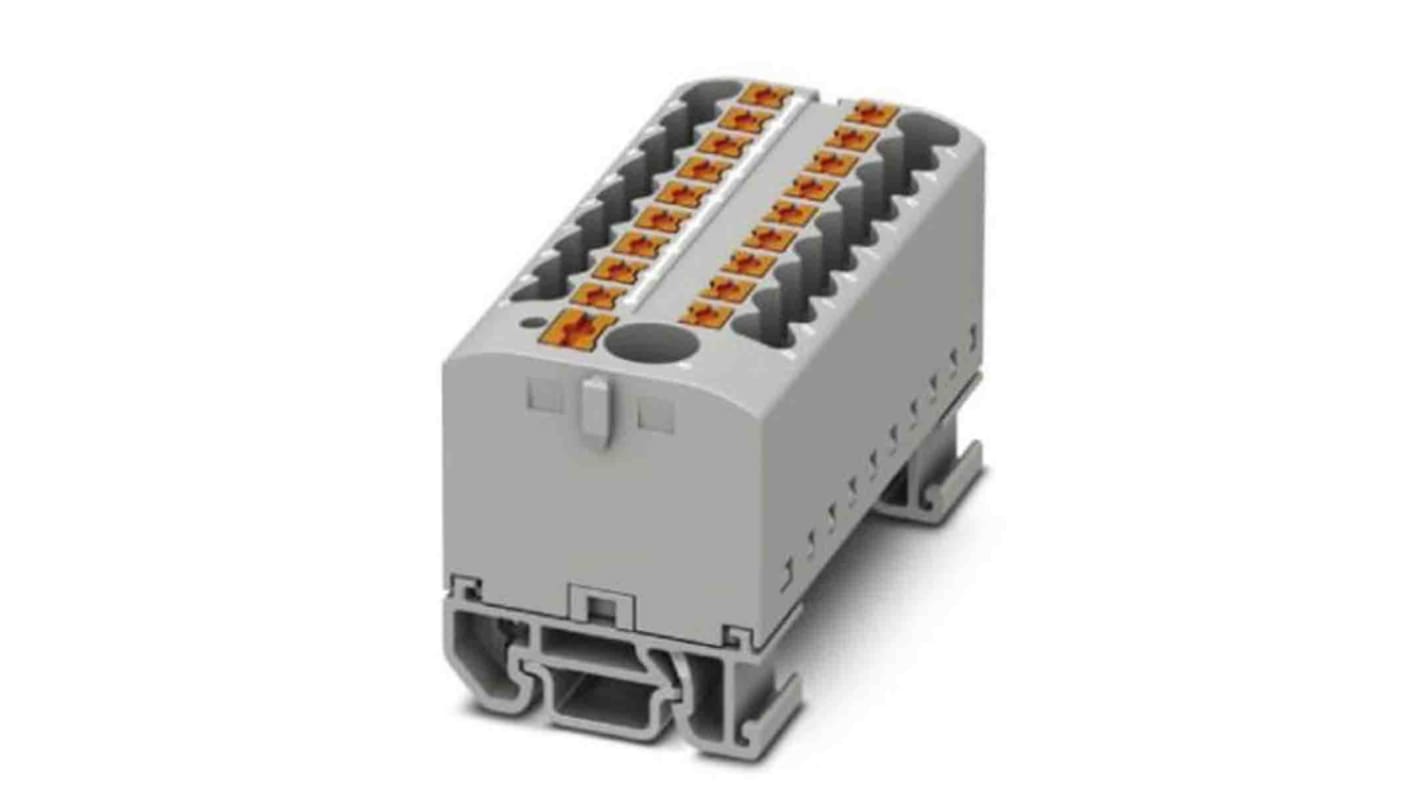

Phoenix Contact Distribution Block, 19 Way, 690 V, 24A, Grey

View all Distribution Blocks

Subtotal (1 pack of 8 units)*

£57.712

(exc. VAT)

£69.256

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
8 +£7.214£57.71

*price indicative

RS Stock No.:
201-5430
Mfr. Part No.:
3274210
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Ways

19

Product Type

Distribution Block

Current

24A

Housing Material

Polyamide

IP Rating

IP20

Voltage

690 V

Connections Per Pole - Load Side

19

Connections Per Pole - Line Side

19

Wire Size - Line Side

12 AWG

Minimum Operating Temperature

-60°C

Termination Type - Line Side

Push-in

Wire Size - Load Side

12 AWG

Termination Type - Load Side

Push-in

Colour

Grey

Standards/Approvals

No

Length

28.6mm

Series

PTFIX

Height

30.9mm

Maximum Operating Temperature

105°C

Width

28.6 mm

COO (Country of Origin):
PL
The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used NS 15 mounting type. It can be used straight away and expanded as needed. It has 19 way of connection and its width is 56.5mm. The block can be bridged with one another via the conductor shaft and horizontal aligned with standard plug-in bridge.

Ambient temperature is -60 °C to 85 °C

Number of level is 1

Rated surge voltage is 8kV

This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
