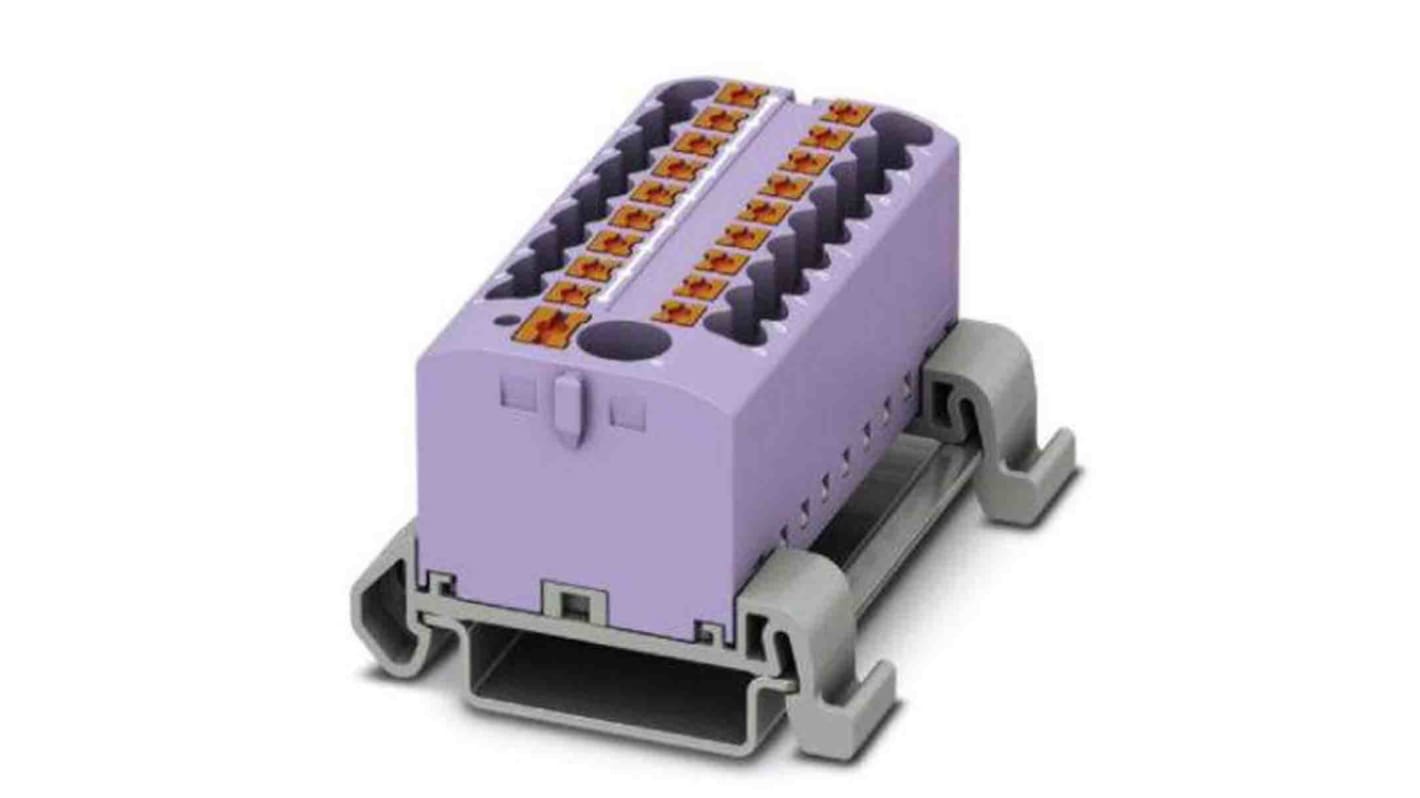

Phoenix Contact Distribution Block, 19 Way, 690 V, 24A, Violet
- RS Stock No.:
- 201-4380
- Mfr. Part No.:
- 3273258
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£61.264
(exc. VAT)
£73.52
(inc. VAT)
Add 8 units to get free delivery
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 8 + | £7.658 | £61.26 |
*price indicative
- RS Stock No.:
- 201-4380
- Mfr. Part No.:
- 3273258
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 19 | |
| Product Type | Distribution Block | |
| Current | 24A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 690 V | |
| Minimum Operating Temperature | -60°C | |
| Wire Size - Load Side | 12 AWG | |
| Connections Per Pole - Line Side | 19 | |
| Wire Size - Line Side | 12 AWG | |
| Connections Per Pole - Load Side | 19 | |
| Termination Type - Line Side | Push-in | |
| Termination Type - Load Side | Push-in | |
| Colour | Violet | |
| Standards/Approvals | No | |
| Series | PTFIX | |
| Width | 16 mm | |
| Height | 22.7mm | |
| Length | 28.6mm | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 19 | ||
Product Type Distribution Block | ||
Current 24A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 690 V | ||
Minimum Operating Temperature -60°C | ||
Wire Size - Load Side 12 AWG | ||
Connections Per Pole - Line Side 19 | ||
Wire Size - Line Side 12 AWG | ||
Connections Per Pole - Load Side 19 | ||
Termination Type - Line Side Push-in | ||
Termination Type - Load Side Push-in | ||
Colour Violet | ||
Standards/Approvals No | ||
Series PTFIX | ||
Width 16 mm | ||
Height 22.7mm | ||
Length 28.6mm | ||
Maximum Operating Temperature 105°C | ||
The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used NS 35/7,5 mounting type. It can be used straight away and expanded as needed. It has 19 way of connection and width is 56.5mm. The block can be bridged with one another via the conductor shaft and horizontal aligned with standard plug-in bridge.
Ambient temperature is -60 °C to 85 °C
Number of level is 1
Rated surge voltage is 8kV
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
