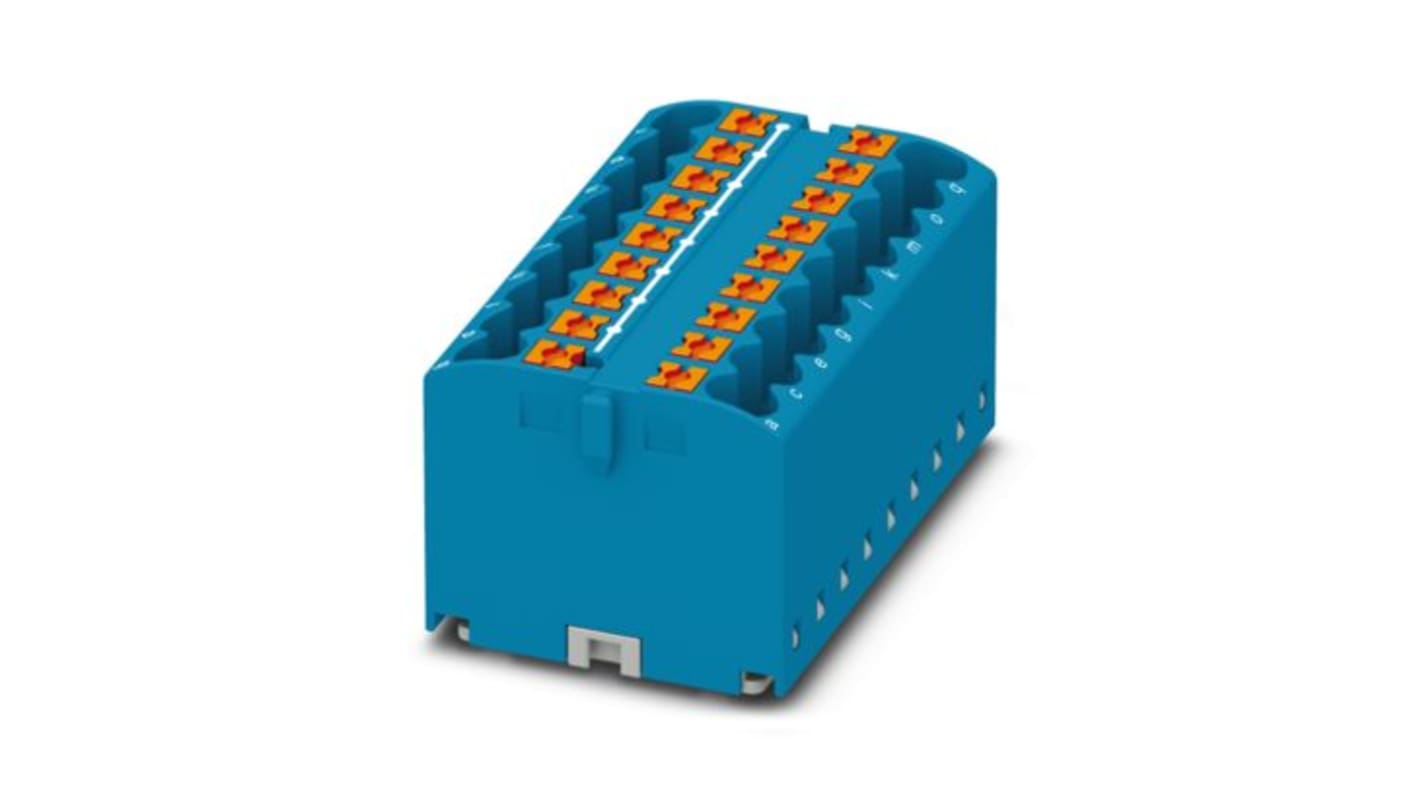

Phoenix Contact Distribution Block, 18 Way, 440 V, 22.5A, Blue
- RS Stock No.:
- 520-846
- Mfr. Part No.:
- 1221422
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£68.75
(exc. VAT)
£82.50
(inc. VAT)
Add 1 pack to get free delivery
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £68.75 | £8.594 |
*price indicative
- RS Stock No.:
- 520-846
- Mfr. Part No.:
- 1221422
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 18 | |
| Product Type | Distribution Block | |
| Current | 22.5A | |
| Housing Material | Polyamide | |
| Voltage | 440 V | |
| Minimum Operating Temperature | 60°C | |
| Wire Size - Line Side | 26/12 AWG | |
| Termination Type - Line Side | Snap-In | |
| Colour | Blue | |
| Height | 28.6mm | |
| Width | 46.9 mm | |
| Standards/Approvals | UKCA-EX: CML 22UKEX3672U, ATEX: SEV21ATEX0557U, CCC: 2022122313115884, IECEx: IECExSEV21.0023U | |
| Maximum Operating Temperature | 110°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 18 | ||
Product Type Distribution Block | ||
Current 22.5A | ||
Housing Material Polyamide | ||
Voltage 440 V | ||
Minimum Operating Temperature 60°C | ||
Wire Size - Line Side 26/12 AWG | ||
Termination Type - Line Side Snap-In | ||
Colour Blue | ||
Height 28.6mm | ||
Width 46.9 mm | ||
Standards/Approvals UKCA-EX: CML 22UKEX3672U, ATEX: SEV21ATEX0557U, CCC: 2022122313115884, IECEx: IECExSEV21.0023U | ||
Maximum Operating Temperature 110°C | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Distribution Block represents a synergy of robust engineering and practical functionality, specifically designed for versatile mounting options. Well suited for demanding environments, its Ex e certification ensures safety and reliability. The block features a distinct blue finish and is engineered for seamless integration onto DIN rail setups, direct mounting, or even free hanging applications. Offering superior performance within an extended temperature range, it ensures operations remain unaffected by environmental variations. Its innovative push in direct connection technology promotes effortless wiring, which significantly reduces installation time while enhancing reliability across diverse applications.
Flexible installation with options for DIN rail flange or free hanging mounts
Distinctive blue colour for easy identification in installations
Compact design helps save space on DIN rails by up to 50%
Time efficient assembly with ready to mount blocks requiring no manual bridging
