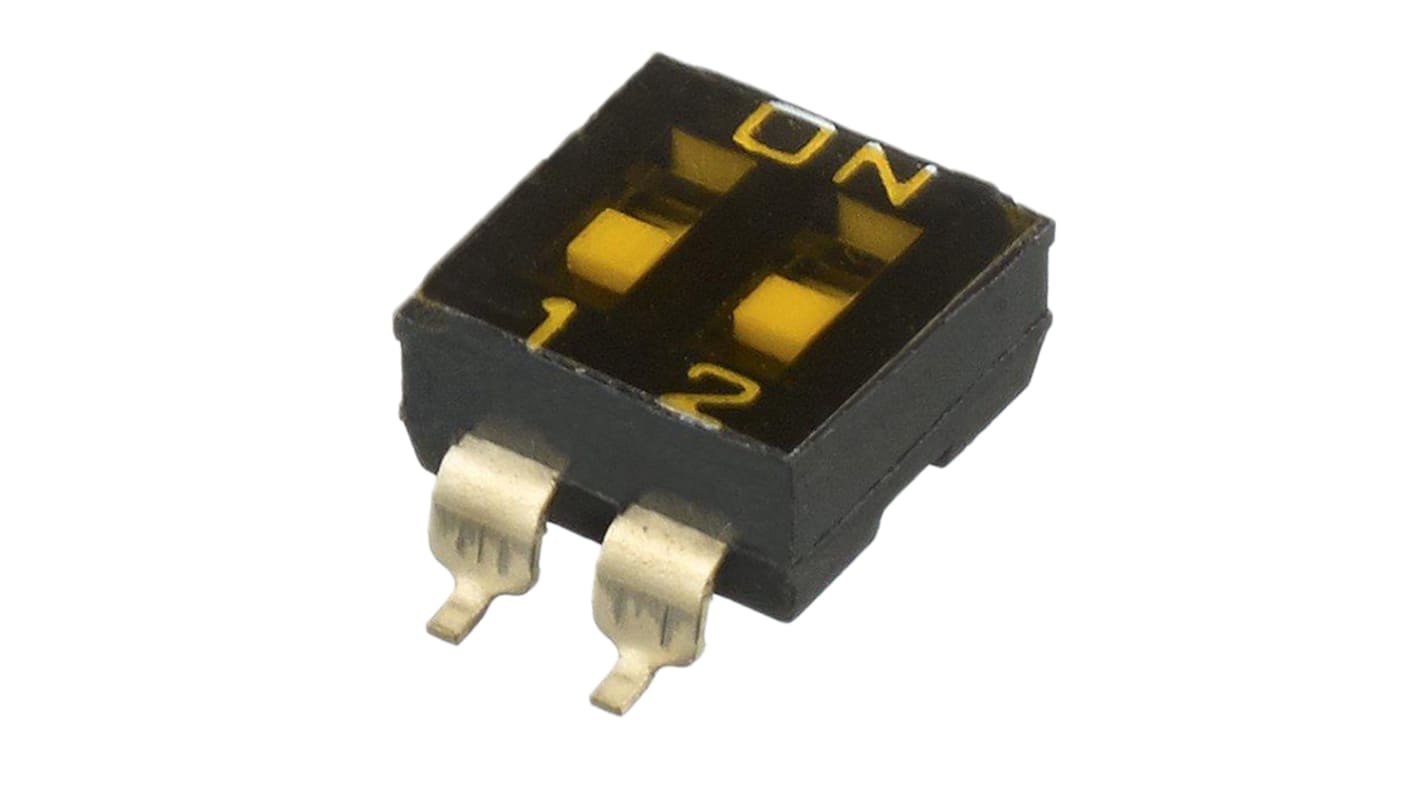

Apem 2 Way Surface Mount DIP Switch SPST, Recessed Actuator Slide Actuator
- RS Stock No.:
- 877-2292
- Mfr. Part No.:
- IKD0203000
- Brand:
- APEM
912 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 76)
£0.759
(exc. VAT)
£0.911
(inc. VAT)
| Units | Per unit | Per Tube* |
| 76 - 304 | £0.759 | £57.684 |
| 380 - 684 | £0.69 | £52.44 |
| 760 - 1444 | £0.632 | £48.032 |
| 1520 - 2204 | £0.584 | £44.384 |
| 2280 + | £0.561 | £42.636 |
| *price indicative | ||
- RS Stock No.:
- 877-2292
- Mfr. Part No.:
- IKD0203000
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem DIP Switch - IKD Series
The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting
Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze (Moving Contact) |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Recessed Actuator Slide |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24 V dc, 50V dc |
| Dielectric Strength | 500V ac |
