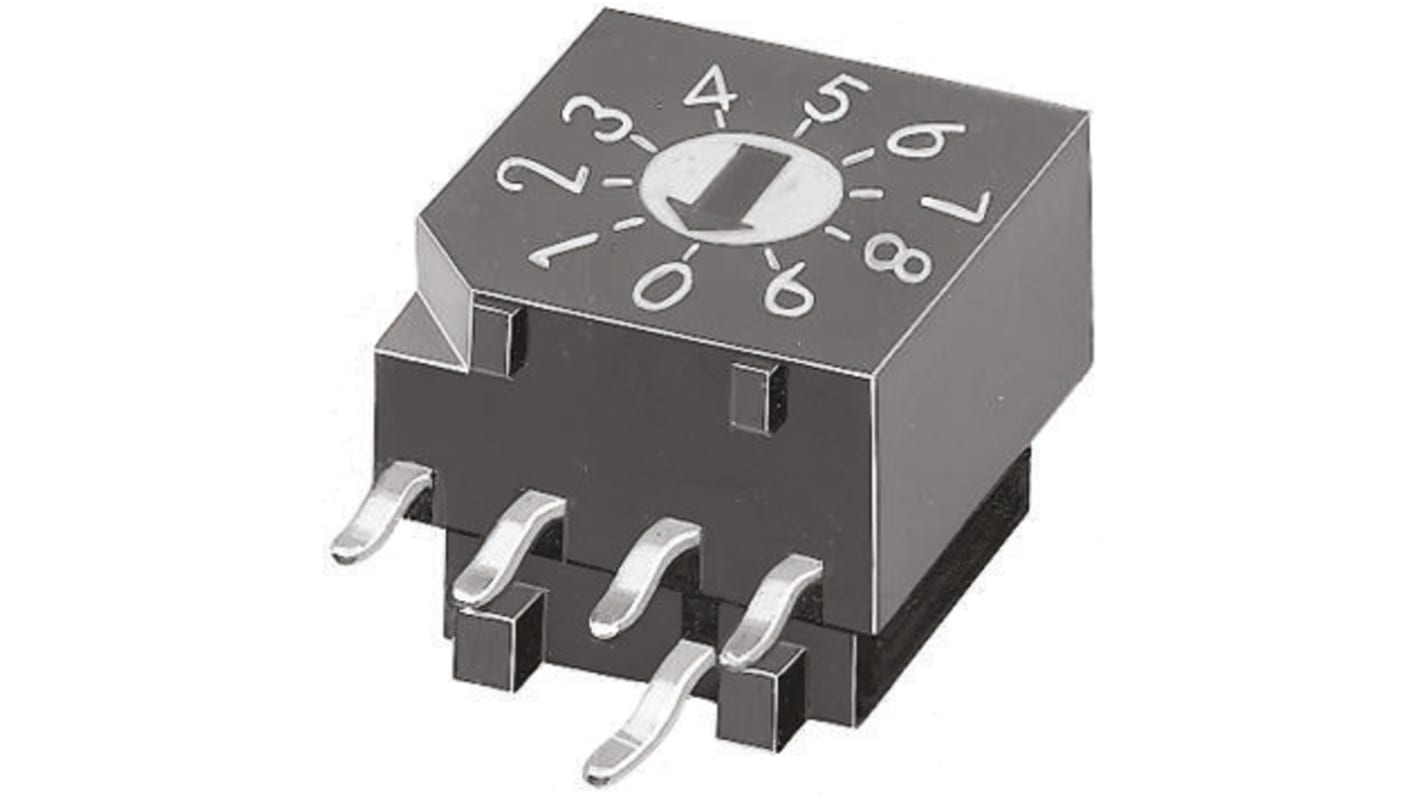

KNITTER-SWITCH 10 Way Through Hole DIP Switch, Rotary Flush Actuator
- RS Stock No.:
- 708-3241
- Mfr. Part No.:
- DRR3010
- Brand:
- KNITTER-SWITCH
45 In stock - FREE next working day delivery available
Added
Price Each
£2.99
(exc. VAT)
£3.59
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.99 |
| 10 - 49 | £2.88 |
| 50 - 99 | £1.83 |
| 100 - 249 | £1.79 |
| 250 + | £1.68 |
- RS Stock No.:
- 708-3241
- Mfr. Part No.:
- DRR3010
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Subminiature Rotary Coded Switches - DRR and DRS 3000 & 4000 Series
Through hole mount
Contact resistance: < 100 mΩ
Insulation resistance: > 1000 MΩ at 250 V DC
Mechanical life: minimum 20 000 operations
Contact resistance: < 100 mΩ
Insulation resistance: > 1000 MΩ at 250 V DC
Mechanical life: minimum 20 000 operations
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Contact Material | Gold Plated |
| Package Style | DIP |
| Actuator Type | Rotary Flush |
| Contact Current Rating | 30 mA@ 15 V dc |
| Mechanical Life | 20000Operations |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 15V dc |
| Dielectric Strength | 250V ac |
- RS Stock No.:
- 708-3241
- Mfr. Part No.:
- DRR3010
- Brand:
- KNITTER-SWITCH
