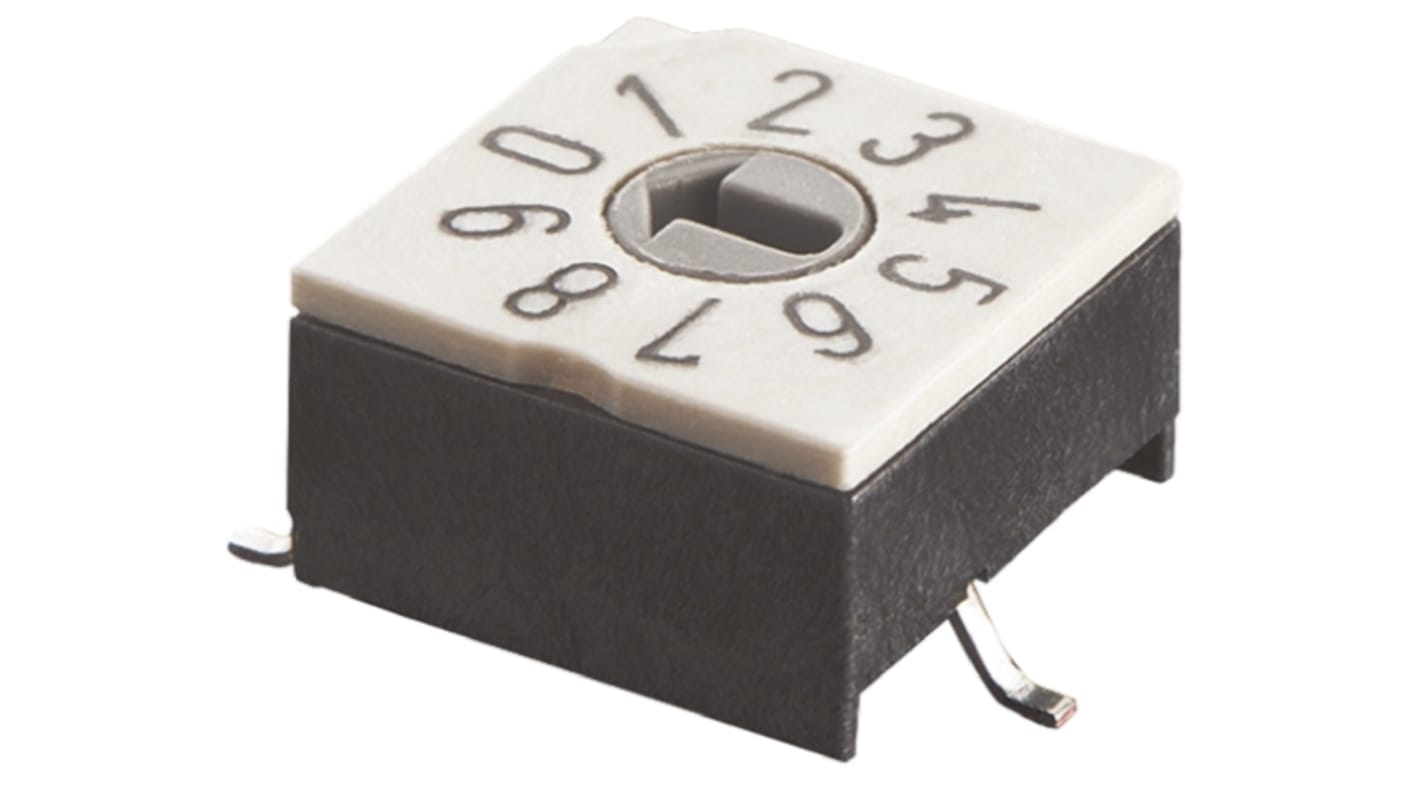

APEM 10 Way Surface Mount DIP Switch SPST, Rotary Flush Actuator
- RS Stock No.:
- 693-1228
- Mfr. Part No.:
- P60AS701
- Brand:
- APEM
23 In stock - FREE next working day delivery available
Added
Price Each
£5.01
(exc. VAT)
£6.01
(inc. VAT)
| Units | Per unit |
| 1 + | £5.01 |
- RS Stock No.:
- 693-1228
- Mfr. Part No.:
- P60AS701
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Cross-head Rotary Encoder
Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent action
Gold plated contacts
Through hole and Surface mount versions
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent action
Gold plated contacts
Through hole and Surface mount versions
Note
Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Surface Mount |
| Contact Material | Gold over Nickel Plated Stainless Steel |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Rotary Flush |
| Contact Current Rating | 150 mA@ 24 V dc |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24V dc |
