Omron 2 Way Through Hole DIP Switch SPST, Flat Actuator, IP40
- RS Stock No.:
- 254-3066
- Mfr. Part No.:
- A6E-2101-N
- Brand:
- Omron
Bulk discount available
Subtotal (1 pack of 2 units)*
£1.67
(exc. VAT)
£2.004
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £0.835 | £1.67 |
10 - 18 | £0.81 | £1.62 |
20 + | £0.795 | £1.59 |
*price indicative
- RS Stock No.:
- 254-3066
- Mfr. Part No.:
- A6E-2101-N
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Number of Positions | 2 | |
Mounting Type | Through Hole | |
Contact Material | Au plated | |
Contact Configuration | SPST | |
Actuator Type | Flat | |
Contact Current Rating | 25 mA | |
IP Rating | IP40 | |
Select all | ||
---|---|---|
Brand Omron | ||
Number of Positions 2 | ||
Mounting Type Through Hole | ||
Contact Material Au plated | ||
Contact Configuration SPST | ||
Actuator Type Flat | ||
Contact Current Rating 25 mA | ||
IP Rating IP40 | ||
- COO (Country of Origin):
- CN

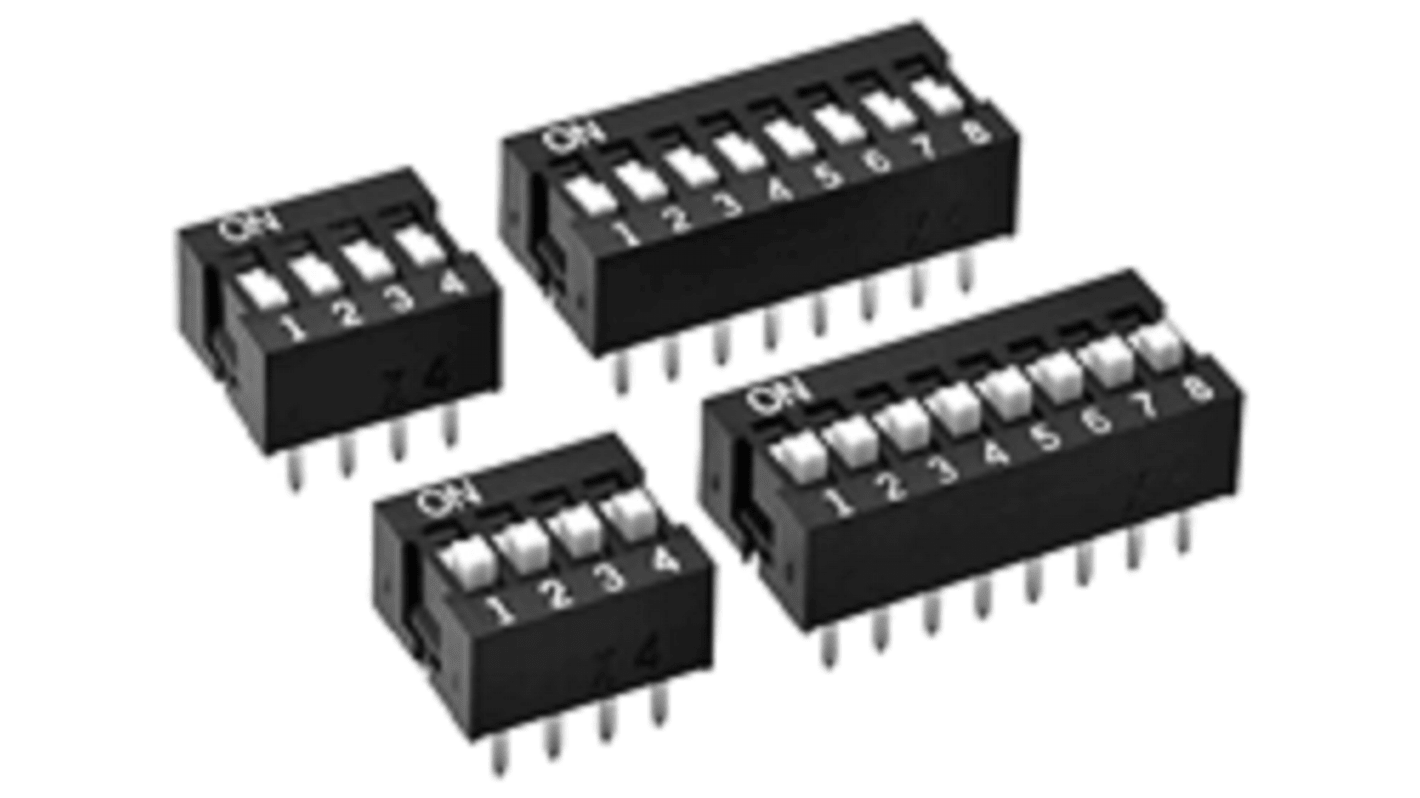

The Omron slide dip switch is box type through-hole mounting dip switch. It has gold-plated twin contacts ensure high reliabilIty. It available both on and off-set soldering.
Ambient operating temperature –20 to +70°C at 60% maximum (with no icing or condensation)
Ambient operating humidity 35% to 95% (at +5 to +35°C)
Insulation resistance 100 MΩ min (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ maximum (initial value)
Dielectric strength between terminals 500 VAC for 1 min
Ambient operating humidity 35% to 95% (at +5 to +35°C)
Insulation resistance 100 MΩ min (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ maximum (initial value)
Dielectric strength between terminals 500 VAC for 1 min
