Omron 2 Way Through Hole DIP Switch SPST, Flat Actuator, IP40
- RS Stock No.:
- 254-3065
- Mfr. Part No.:
- A6E-2101-N
- Brand:
- Omron
Available to back order for despatch 12/06/2024
Added
Price Each (In a Tube of 72)
£0.767
(exc. VAT)
£0.92
(inc. VAT)
| Units | Per unit | Per Tube* |
| 72 - 72 | £0.767 | £55.224 |
| 144 - 216 | £0.732 | £52.704 |
| 288 + | £0.698 | £50.256 |
| *price indicative | ||
- RS Stock No.:
- 254-3065
- Mfr. Part No.:
- A6E-2101-N
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

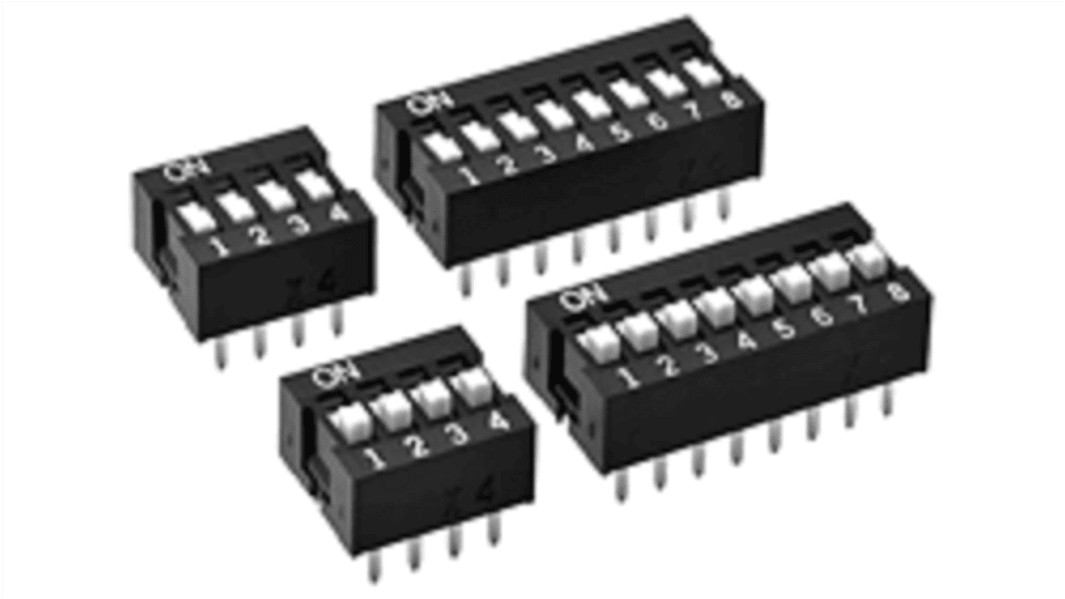

The Omron slide dip switch is box type through-hole mounting dip switch. It has gold-plated twin contacts ensure high reliabilIty. It available both on and off-set soldering.
Ambient operating temperature –20 to +70°C at 60% maximum (with no icing or condensation)
Ambient operating humidity 35% to 95% (at +5 to +35°C)
Insulation resistance 100 MΩ min (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ maximum (initial value)
Dielectric strength between terminals 500 VAC for 1 min
Ambient operating humidity 35% to 95% (at +5 to +35°C)
Insulation resistance 100 MΩ min (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ maximum (initial value)
Dielectric strength between terminals 500 VAC for 1 min
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Mounting Type | Through Hole |
| Contact Configuration | SPST |
| Contact Material | Au plated |
| Actuator Type | Flat |
| Contact Current Rating | 25 mA |
| IP Rating | IP40 |
