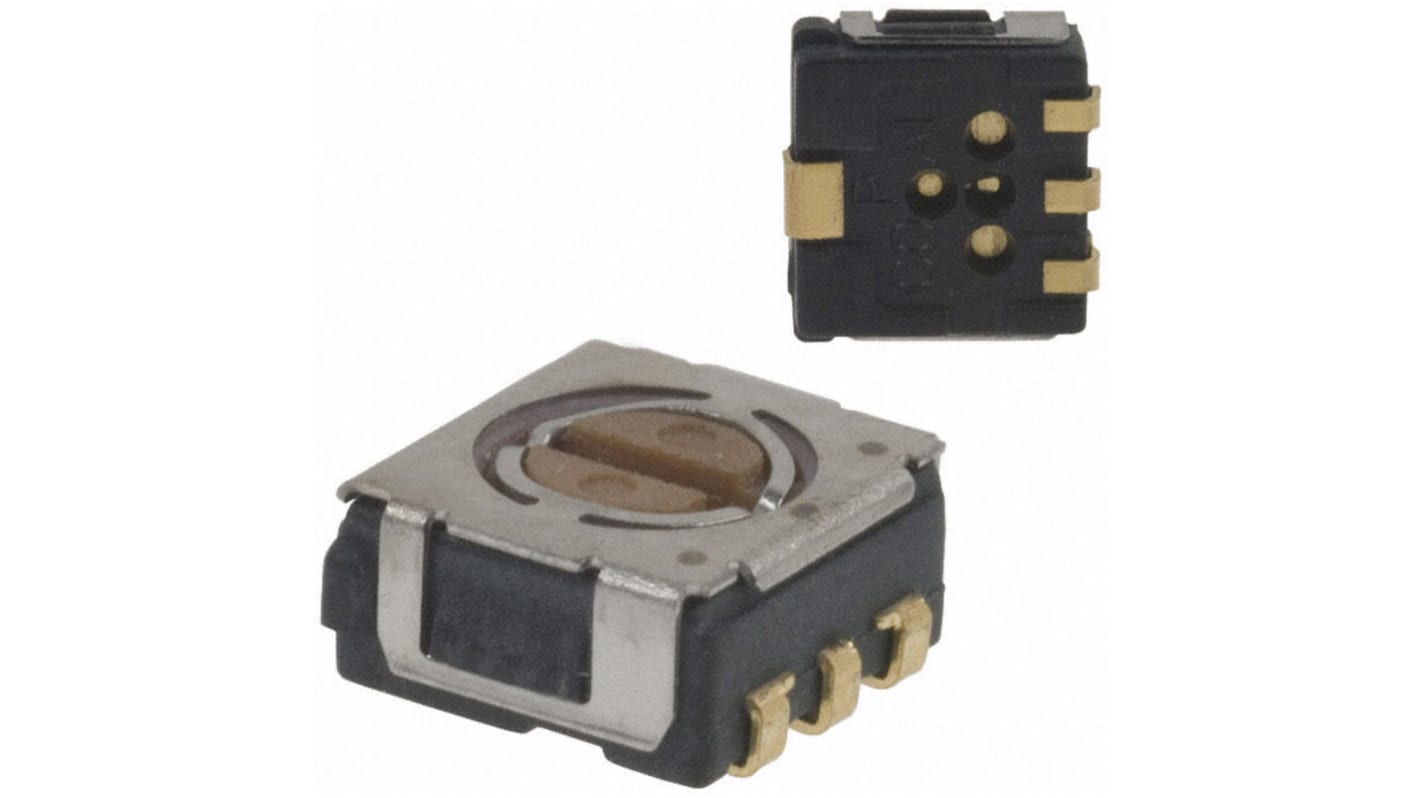

Nidec Components 3 Way Surface Mount Rotary Switch, Rotary Actuator
- RS Stock No.:
- 196-8149
- Mfr. Part No.:
- CS-4-13NA
- Brand:
- Nidec Components
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 196-8149
- Mfr. Part No.:
- CS-4-13NA
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nidec Components | |
Number of Positions | 3 | |
Mounting Type | Surface Mount | |
Contact Material | Copper Alloy | |
Package Style | DIP | |
Actuator Type | Rotary | |
Contact Current Rating | 100mA | |
Mechanical Life | 200 Op. | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -25°C | |
Operating Temperature Range | -25 → +70°C | |
Voltage Rating | 16V | |
Select all | ||
---|---|---|
Brand Nidec Components | ||
Number of Positions 3 | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Package Style DIP | ||
Actuator Type Rotary | ||
Contact Current Rating 100mA | ||
Mechanical Life 200 Op. | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +70°C | ||
Voltage Rating 16V | ||
- COO (Country of Origin):
- CN
Copal Electronics CS-4-13NA is a SP3T 3-position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Epoxy. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CS-4-13NA SP3T DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. CS-4-13NA SP3T DIP switches consists of 50 pieces per pack.
200 electrical life cycles
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Flushed, Recessed actuator level
Excellent contact stability by twin Gold-plated contact
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Flushed, Recessed actuator level
Excellent contact stability by twin Gold-plated contact
