Murrelektronik Limited 100 VA Safety Transformer, 400 V ac Primary, 24 V ac Secondary, EN 61558-2-4, EN 61558-2-6, EN
- RS Stock No.:
- 284-8050
- Mfr. Part No.:
- 86342
- Brand:
- Murrelektronik Limited
Subtotal (1 unit)*
£45.66
(exc. VAT)
£54.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.66 |
*price indicative
- RS Stock No.:
- 284-8050
- Mfr. Part No.:
- 86342
- Brand:
- Murrelektronik Limited
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murrelektronik Limited | |
| Primary Voltage | 400 V ac | |
| Product Type | Safety Transformer | |
| Secondary Voltage | 24 V ac | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Width | 84mm | |
| Power | 100VA | |
| Depth | 98mm | |
| Termination Type | Screw | |
| Minimum Operating Frequency | 50Hz | |
| Minimum Operating Temperature | -20°C | |
| Modular Transformer Type | Safety Isolating | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | EN 61558-2-4, EN 61558-2-6, EN 62041 Category 0 | |
| Maximum Operating Temperature | 40°C | |
| Select all | ||
|---|---|---|
Brand Murrelektronik Limited | ||
Primary Voltage 400 V ac | ||
Product Type Safety Transformer | ||
Secondary Voltage 24 V ac | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Width 84mm | ||
Power 100VA | ||
Depth 98mm | ||
Termination Type Screw | ||
Minimum Operating Frequency 50Hz | ||
Minimum Operating Temperature -20°C | ||
Modular Transformer Type Safety Isolating | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals EN 61558-2-4, EN 61558-2-6, EN 62041 Category 0 | ||
Maximum Operating Temperature 40°C | ||
- COO (Country of Origin):
- CZ

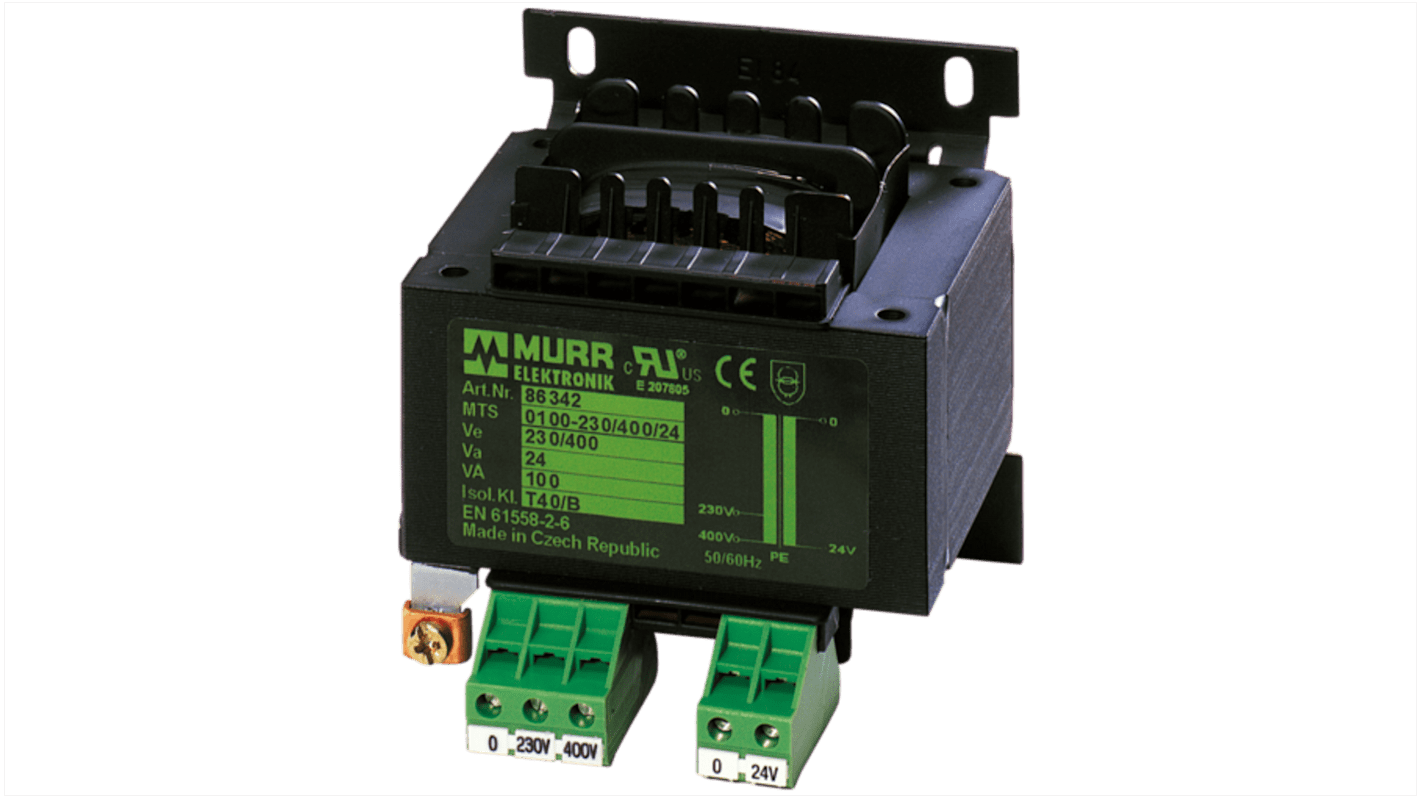

The Murrelektronik Limited Single phase Safety Transformer is designed to provide electrical isolation and voltage transformation for single phase applications. With a power rating of 100 VA, it is capable of handling loads up to 100 volt amperes. The input voltage can be either 230VAC or 400VAC, while the output voltage is fixed at 24VAC.
EN 62041 category 0
CE and UKCA compliance
