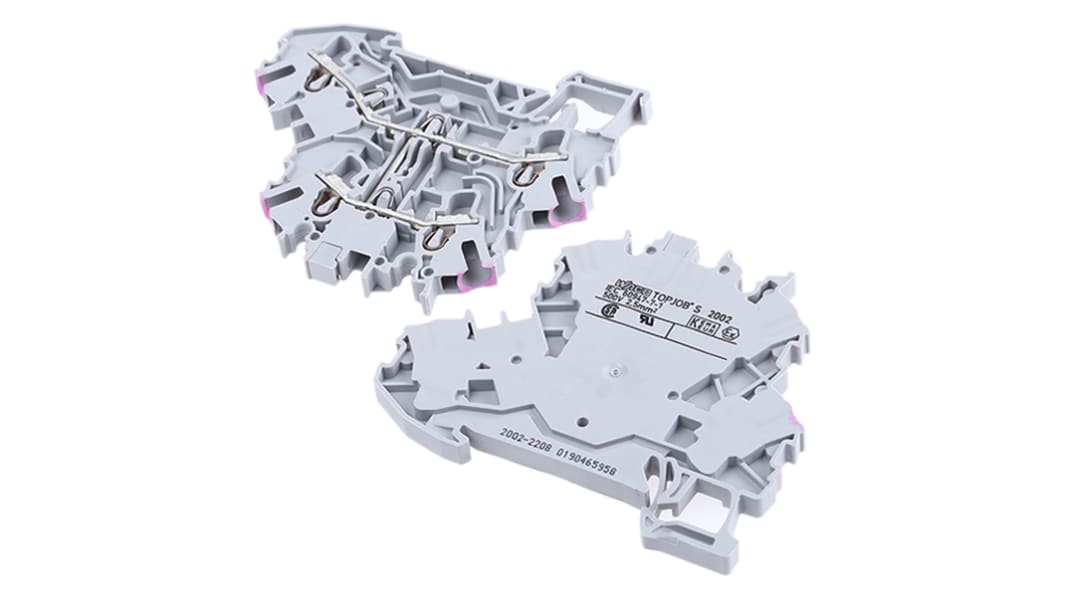

WAGO 2002-2208 Feed Through Terminal Block Grey, 2.5mm², 2-Level, Cage Clamp, IECEx/ATEX

View all DIN Rail Terminal Blocks
Temporarily out of stock
RS Stock No.:
803-6710
Distrelec Article No.:
304-46-039
Mfr. Part No.:
2002-2208
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Grey

Product Type

Feed Through Terminal Block

Number of Levels

2

Voltage

500V

Minimum Wire Size AWG

22AWG

Cable CSA

2.5mm²

Fused

No

Maximum Wire Size AWG

12AWG

Terminal Block Current

28A

Termination Type

Cage Clamp

Hazardous Area Certification

IECEx/ATEX

Standards/Approvals

No

COO (Country of Origin):
DE

Double Deck Terminals


Double-deck terminal blocks without marker carrier. The DIN Rail connector from the TOPJOB S Range comes in grey housing.

Features and Benefits


• 4 Conductor-through terminal block L

• Cage Clamp® Connection

• Front entry wiring

• DIN Rail mounting on TS 35 rail

870 Series


Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire

Front cabling enables further space saving

Rated at: 500V/6kV/24A

Jumper bar rated current: 18A

Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)
