WAGO 2002-1201 TOPJOB S, 2002 Series Grey, 2.5mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 247-5828
- Mfr. Part No.:
- 2002-1201
- Brand:
- WAGO
Subtotal (1 pack of 100 units)*
£72.70
(exc. VAT)
£87.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,200 unit(s) ready to ship
- Plus 1,200 unit(s) ready to ship from another location
- Plus 1,600 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.727 | £72.70 |
*price indicative
- RS Stock No.:
- 247-5828
- Mfr. Part No.:
- 2002-1201
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | Single | |
| Series | TOPJOB S, 2002 | |
| American Wire Gauge | 22 → 12AWG | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Current Rating | 24A | |
| Hazardous Area Certification | ATEX, IECEx | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels Single | ||
Series TOPJOB S, 2002 | ||
American Wire Gauge 22 → 12AWG | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Current Rating 24A | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- DE

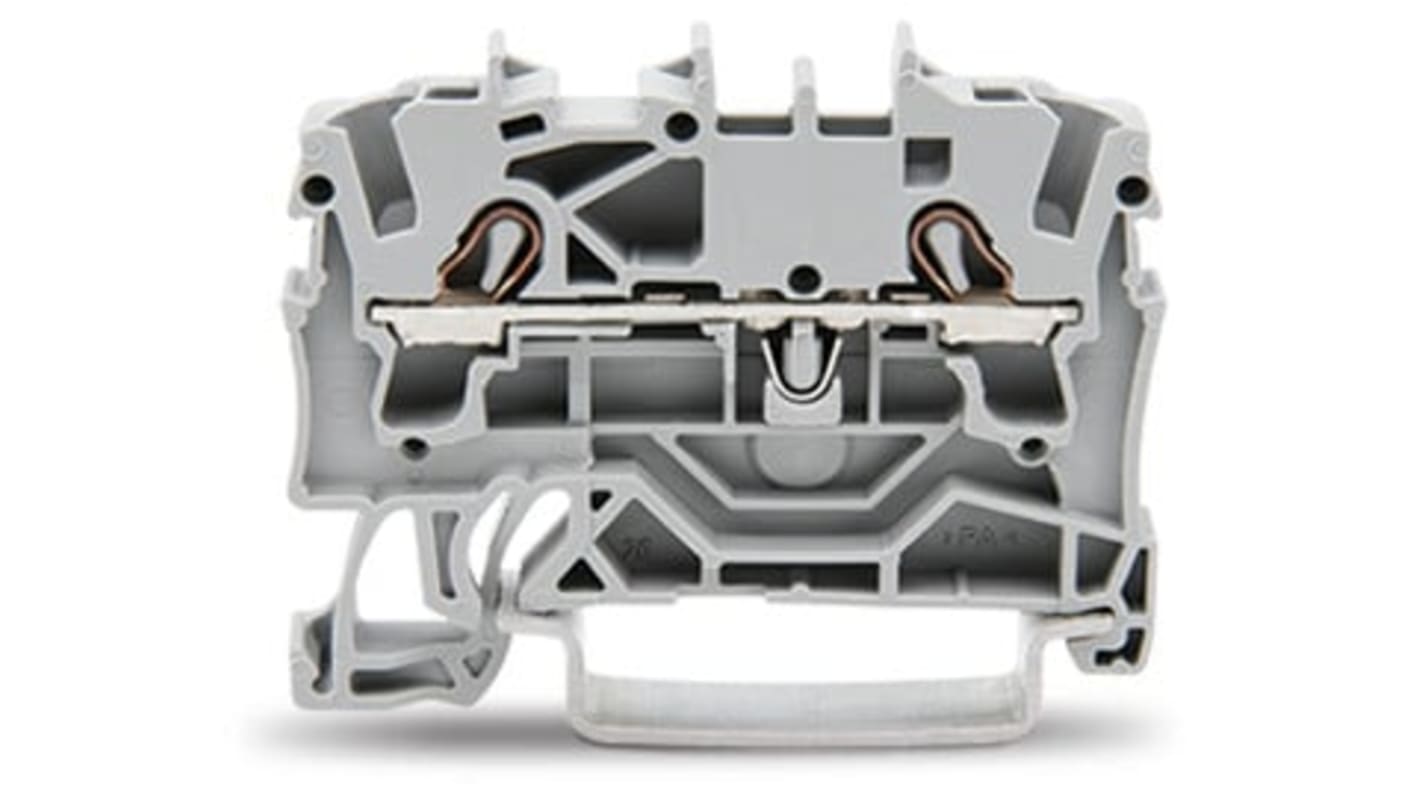

WAGO Terminal Block, Push-In Termination, Front-Entry Wiring - 2002 Series - 2002-1201
Keep your electrical systems out of harm's way with this terminal block from WAGO. It offers a safe way to couple wires to your DIN rail-connected equipment, preventing contact with live parts. The unit's copper connectors are highly conductive for reliable signal transmission. Thanks to its contact rating of 32A, it fits the bill for high-current applications. It has clamp terminals, so it's a snap to link wires by simply pushing them in. As it accepts conductor sizes between 22 and 12AWG, this component is a versatile solution for different circuit types.
Features & Benefits
• Rated surge voltage of 8kV to handle hefty power spikes without damage
• Light weight of 5.1g puts minimal strain on your DIN rail
• DIN rail mounting is simple and tool-free, saving time and hassle
• Plastic housing offers impact resistance and insulation for safe use in harsh environments
• Light weight of 5.1g puts minimal strain on your DIN rail
• DIN rail mounting is simple and tool-free, saving time and hassle
• Plastic housing offers impact resistance and insulation for safe use in harsh environments
Applications
• Automotive manufacturing
• Process and packaging plants
• Industrial lighting systems
• Process and packaging plants
• Industrial lighting systems
How do I disconnect a terminated cable from this terminal block?
To disconnect a cable, release it by simply pressing down on its clamp using a punch tool.
