WAGO 2002-1671/401-000 TOPJOB S, 2002 Series Grey, 2.5mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£26.16

(exc. VAT)

£31.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 130 unit(s) ready to ship
  • Plus 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£2.616£26.16

*price indicative

RS Stock No.:
758-1714
Distrelec Article No.:
304-02-284
Mfr. Part No.:
2002-1671/401-000
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Grey

Number of Levels

Single

American Wire Gauge

22 → 12AWG

Voltage Rating

400 V

Series

TOPJOB S, 2002

Termination Method

Push-In Cage Clamp

Cable CSA

2.5mm²

Fused

No

Current Rating

16A

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+105°C

Hazardous Area Certification

ATEX, IECEx

Standards Met

ATEX, CCA, CE, CSA, DNV GL, UKCA, UL

Model Number

2002

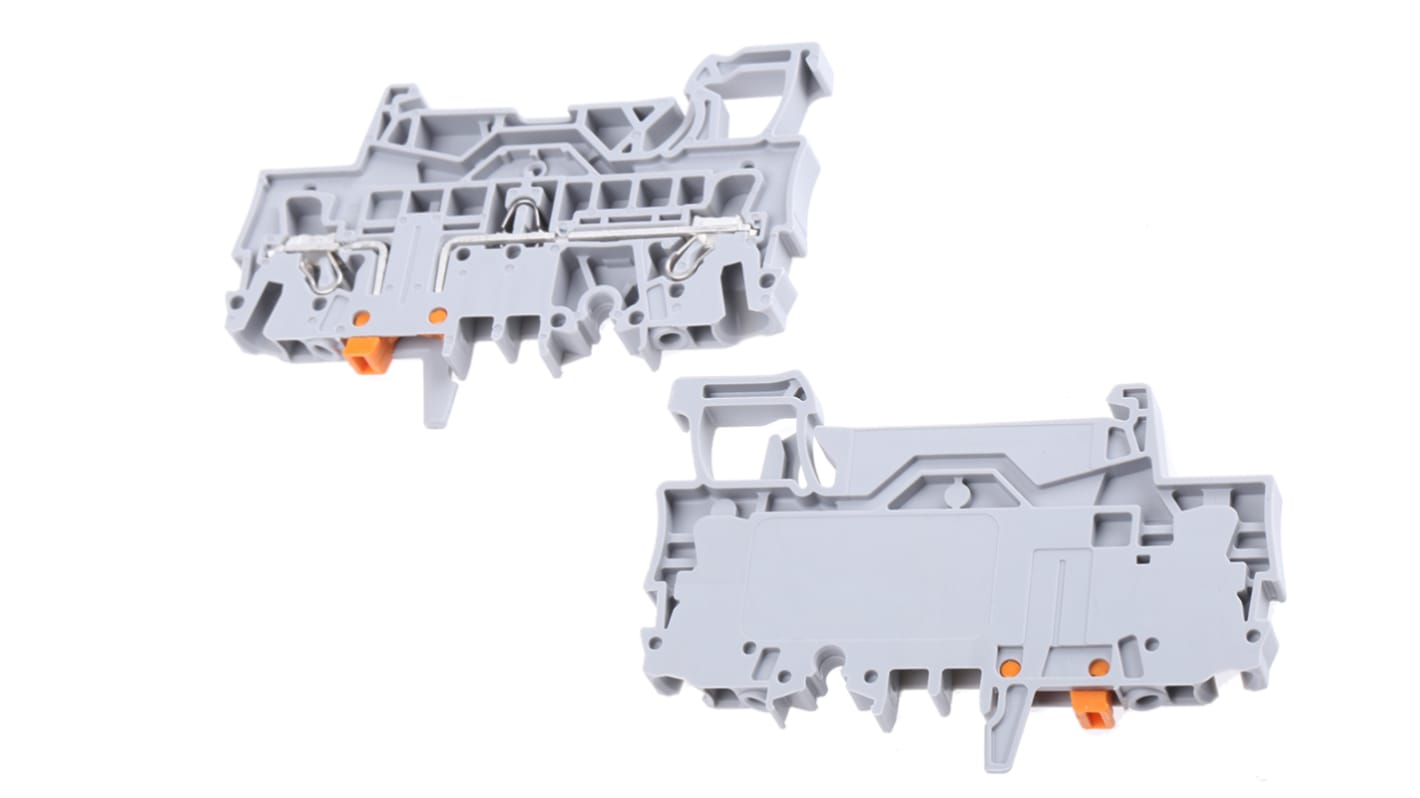

WAGO Disconnect Terminal Block, 16A Current Rating, 5.2mm Width - TOPJOB S Series - 2002-1671/401-000


Save time and effort when setting up your electrical installations with this terminal block from WAGO. A handy lever means you can disconnect a circuit without removing the block from the rail, making testing and servicing a cinch. Integrated test points for plugs (507-6923) let you breeze through troubleshooting. The push-in cage clamp terminals make wiring a doddle. For convenience, the unit accepts solid and stranded conductors with or without ferrules. The wires feed into the front of the block, making it easier to hook up in tight spaces.

Features & Benefits


• Clips onto a DIN rail for speedy mounting
• Space for jumpers to simplify power distribution
• PA housing provides effective insulation and resistance to abrasion
• Suitable for use at temperatures between -60°C and +105°C, so it beats the heat in harsh environments

Applications


• Industrial automation
• Control panels
• Automotive manufacturing
• Marine and offshore engineering

Can I use this disconnect terminal block in explosive atmospheres?


Yes, you can. This terminal block is suitable for use in explosive atmospheres, so it's a safe bet for volatile environments.


TOPJOB S Series


A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
