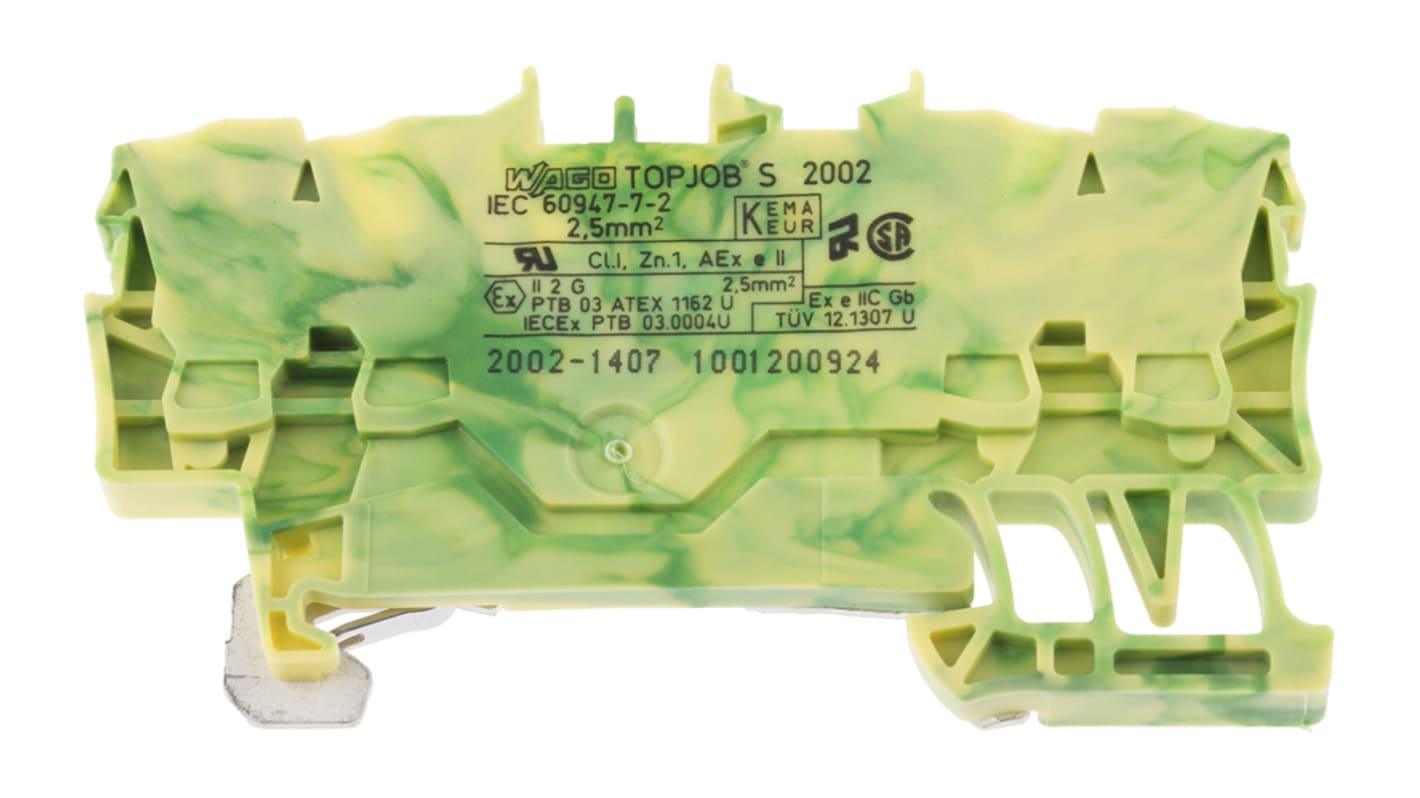

WAGO 2002-1407 TOPJOB S, 2002 Series Earth Terminal Block Green, Yellow, 2.5mm², 1-Level, Cage Clamp, IECEx/ATEX
- RS Stock No.:
- 758-1698
- Distrelec Article No.:
- 304-46-037
- Mfr. Part No.:
- 2002-1407
- Brand:
- WAGO
Subtotal (1 pack of 10 units)*
£36.97
(exc. VAT)
£44.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 65 unit(s) shipping from 19 October 2026
- Plus 52 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £36.97 | £3.697 |
*price indicative
- RS Stock No.:
- 758-1698
- Distrelec Article No.:
- 304-46-037
- Mfr. Part No.:
- 2002-1407
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Earth Terminal Block | |
| Colour | Green, Yellow | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Series | TOPJOB S, 2002 | |
| Cable CSA | 2.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 5.2mm | |
| Termination Type | Cage Clamp | |
| Terminal Block Current | 22A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | CSA, CE, cURus | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Earth Terminal Block | ||
Colour Green, Yellow | ||
Number of Levels 1 | ||
Voltage 800V | ||
Series TOPJOB S, 2002 | ||
Cable CSA 2.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 5.2mm | ||
Termination Type Cage Clamp | ||
Terminal Block Current 22A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals CSA, CE, cURus | ||
- COO (Country of Origin):
- DE
WAGO Earth Terminal Block, 22A Current Rating, 800V Voltage Rating - TOPJOB S 2002 Series - 2002-1407
Be on safe ground with this earth terminal block from WAGO. It discharges excess electricity to protect people and equipment. The unit works with up to four conductors to streamline the layout of your installations. It's a cinch to access the front-facing terminals, so you can get wiring done in a jiffy. You can spot it easily in a network during maintenance, thanks to the signature yellow and green colour. At just 5.2mm wide, this single-level component is a sure fit on crowded DIN rails.
Features & Benefits
• Takes 22 to 12AWG wires for versatility
• 800V rating means it's tough enough to handle high-voltage applications
• Weighs just 10.4g, putting minimal strain on enclosures and DIN rails
Applications
• Medical equipment
• Power stations
• Telecommunications networks
• Automation systems
How do I terminate wires when using this earth terminal block?
Terminating wires is a piece of cake, thanks to the push-in cage clamp. Just insert the conductor and the clamp secures it and prevents accidental disconnections.
What wire types can I use with this earth terminal block?
You can use stranded, solid or ferruled conductors with this versatile component.
