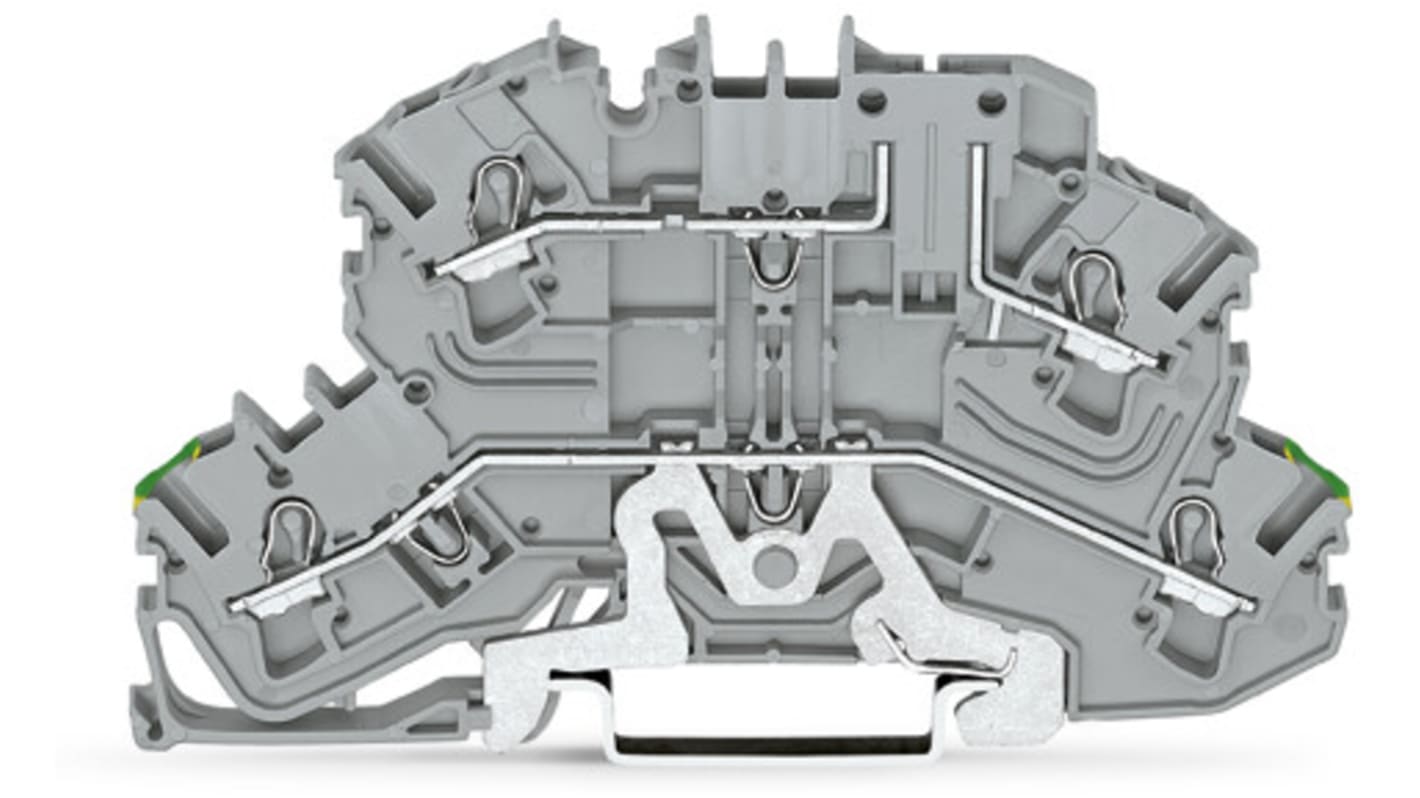

WAGO 2002-2667 Carrier Terminal Block Grey, 2.5mm², 2-Level, Cage Clamp, IECEx, ATEX
- RS Stock No.:
- 253-2936
- Mfr. Part No.:
- 2002-2667
- Brand:
- WAGO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 253-2936
- Mfr. Part No.:
- 2002-2667
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Product Type | Carrier Terminal Block | |
| Sub Type | Terminal Block | |
| Number of Levels | 2 | |
| Voltage | 400V | |
| Cable CSA | 2.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Termination Type | Cage Clamp | |
| Hazardous Area Certification | IECEx, ATEX | |
| Standards/Approvals | UR, CSA, CCA | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Product Type Carrier Terminal Block | ||
Sub Type Terminal Block | ||
Number of Levels 2 | ||
Voltage 400V | ||
Cable CSA 2.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Termination Type Cage Clamp | ||
Hazardous Area Certification IECEx, ATEX | ||
Standards/Approvals UR, CSA, CCA | ||
- COO (Country of Origin):
- CN
The WAGO 20 series is a rail mount terminal block with nominal voltage of 400V, rated impulse voltage of 6kV and rated current of 16A.
Connection technology push-in cage clamp
Number of connection points 4
Actuation type operating tool
