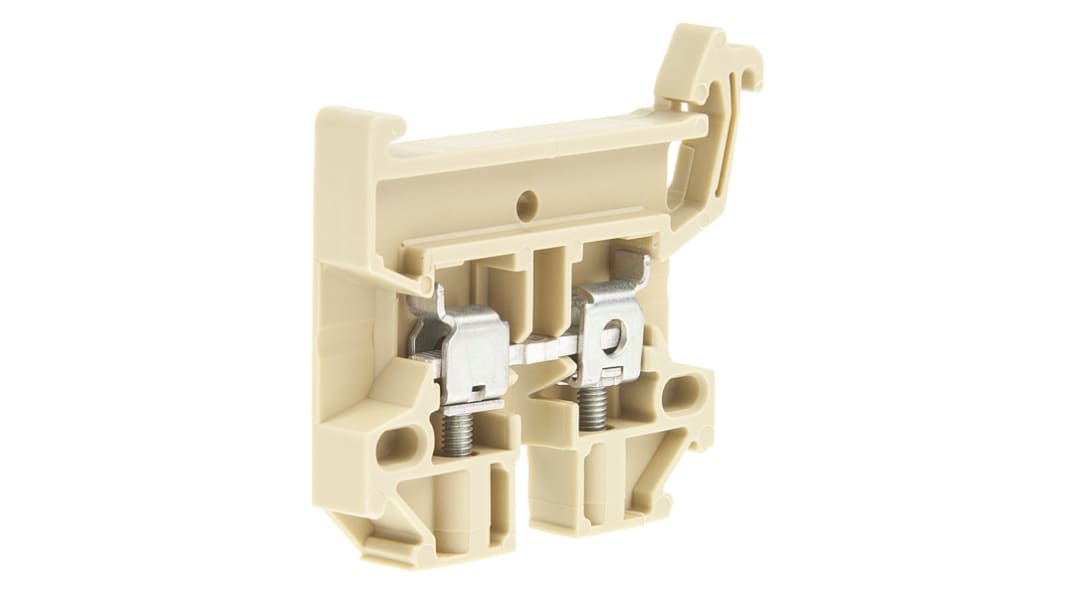

Weidmüller 0380460000 SAK Series Feed Through Terminal Block Beige, 2.5mm², 1-Level Fused, Screw, IECEx/ATEX

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£20.15

(exc. VAT)

£24.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 230 unit(s) ready to ship
  • Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£20.15£2.015

*price indicative

Sponsored
Weidmuller Jumper Bars
Weidmuller Jumper Bars
Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications
Explore Weidmuller Jumper Bars
RS Stock No.:
718-1005
Mfr. Part No.:
0380460000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Colour

Beige

Product Type

Feed Through Terminal Block

Sub Type

Feed Through

Number of Levels

1

Series

SAK

Voltage

800V

Minimum Wire Size AWG

26AWG

Cable CSA

2.5mm²

Fused

Yes

Maximum Wire Size AWG

10AWG

Termination Type

Screw

Minimum Operating Temperature

-50°C

Terminal Block Current

41A

Hazardous Area Certification

IECEx/ATEX

Maximum Operating Temperature

100°C

Standards/Approvals

CCC, CE, CSA, DNV, EAC, UKCA

COO (Country of Origin):
RO

Weidmuller Feed-Through Terminal Block, 24A Current Rating, 26 to 10AWG Wire Size - SAK Series - 0380460000


Need to add components to your rail-mounted circuits? This Weidmuller terminal block is the right fit for your system. It forms a temporary connection between two conductors, making swapping wires a walk in the park. Thanks to its current rating of 24A, you can trust it to withstand the shock of large electrical loads. When it comes to mounting this device, it's snap-happy as it clips quickly to your rails with no tools for hassle-free installation. Screw terminals mean your connections are secure, even when operating conditions get shaky.

• Works with wires sized between 26 and 10AWG, making it suitable for many standard connectors

• Insulating PA66 housing helps minimise the risk of electrical hazards

• Compact dimensions of 44.5 (H) x 6.1 (W) x 40mm (D) mean it's a sure fit for busy rails

• Open side panel provides convenient view of connections for ease of inspection

Applications


• Printing industry

• Food production

• Automotive manufacturing

Can I use this terminal block at extreme temperatures?


Yes, this unit has a wide operating temperature range of -50°C to +100°C, so you can use it in demanding conditions.

SAK TS35 Range


High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.

Features and Benefits


• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals;• Partitions available in blue (RS 718-0923, RS 718-0926);• Flammability class UL 94V-2;• Clamping yoke technology

SAK Series


Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Approvals

CSA certified, UL listed, NEMKO, ATEX, and IECEx
