Weidmuller 1616400000 ZSI Series Beige, 2.5mm², Single-Level, Clamp Termination, Fused
- RS Stock No.:
- 226-0052
- Mfr. Part No.:
- 1616400000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£20.04
(exc. VAT)
£24.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 58 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 98 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £20.04 | £4.008 |
*price indicative
- RS Stock No.:
- 226-0052
- Mfr. Part No.:
- 1616400000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige | |
| Number of Levels | Single | |
| American Wire Gauge | 26 → 12AWG | |
| Series | ZSI | |
| Voltage Rating | 500 V | |
| Termination Method | Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | Yes | |
| Current Rating | 6.3A | |
| Pitch | 12mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +120°C | |
| Standards Met | CSA | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige | ||
Number of Levels Single | ||
American Wire Gauge 26 → 12AWG | ||
Series ZSI | ||
Voltage Rating 500 V | ||
Termination Method Clamp | ||
Cable CSA 2.5mm² | ||
Fused Yes | ||
Current Rating 6.3A | ||
Pitch 12mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Standards Met CSA | ||
- COO (Country of Origin):
- CZ

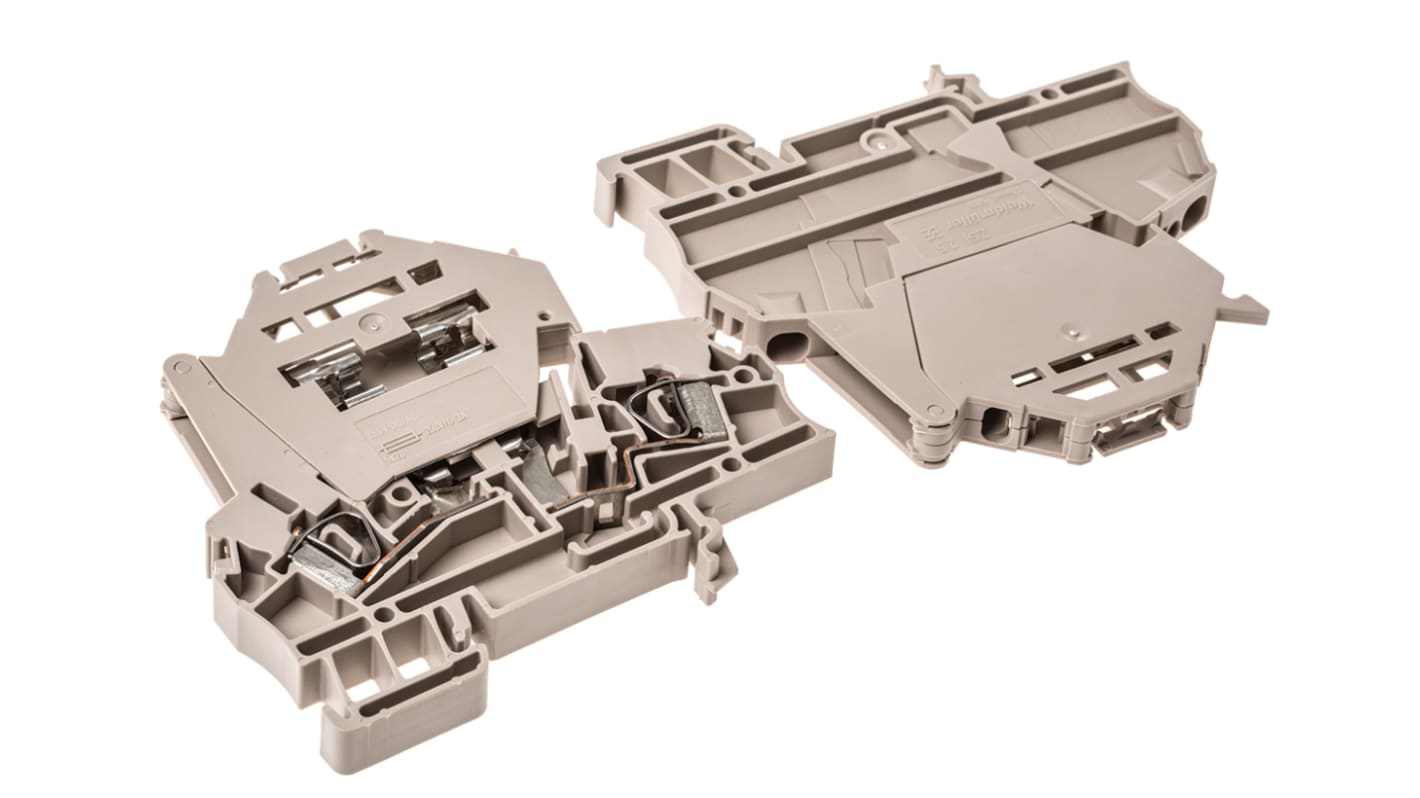

Weidmuller Fused DIN Rail Terminal, Tension Clamp Connection, 26 to 12AWG Wire Size - Z Series - 1616400000
Double duty is a doddle for this fused DIN rail terminal from Weidmuller. The unit's tension clamp connection is designed to resist vibrations, so your wires will stay securely in place. At the same time, its built-in fuse gives your system extra protection against electrical hazards for increased safety. If you need to check or change the fuse, it's in a pivoting holder that flips up for quick access. This robust product has a wide operating temperature range between -50°C and +120°C, so it stands up to challenging settings.
Features & Benefits
• Compact size of 79.5 (H) x 7.9 (W) x 73mm (D) to save space
• Open side on the right enables easy access to wires
• Accommodates wire sizes between 26 and 12AWG for versatility
• Open side on the right enables easy access to wires
• Accommodates wire sizes between 26 and 12AWG for versatility
Applications
• Transport industry
• Lighting controllers
• Electrical engineering
• Lighting controllers
• Electrical engineering
How do I mount this terminal?
You can mount this terminal in a snap by simply clipping it onto a DIN rail.
What's this terminal made from?
This terminal is made from Wemid, which provides insulation and resistance to wear for long-lasting performance.
