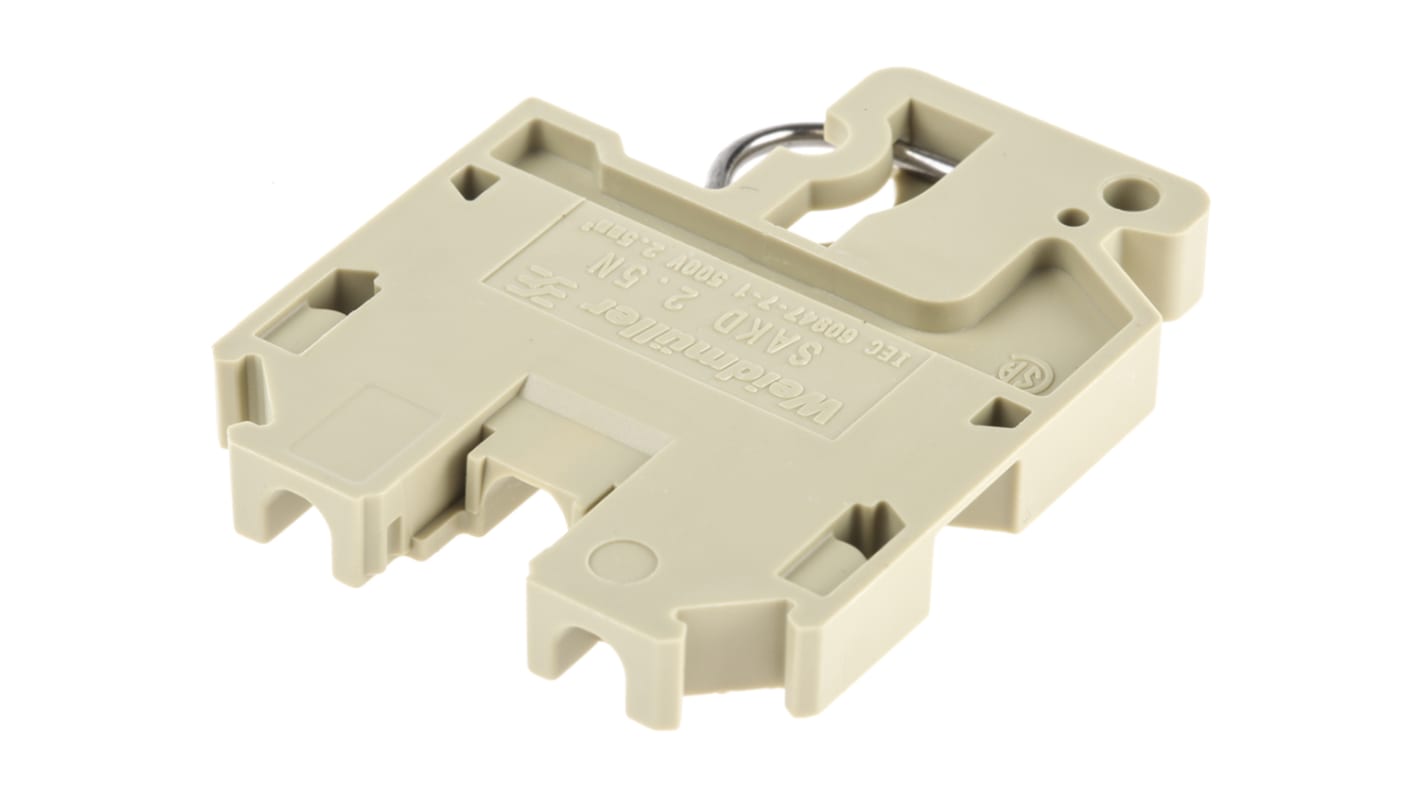

Weidmüller 0215560000 SAK Series Feed Through Terminal Block Beige, 2.5mm², 1-Level, Screw
- RS Stock No.:
- 829-6690
- Mfr. Part No.:
- 0215560000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£11.41
(exc. VAT)
£13.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 370 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.141 | £11.41 |
*price indicative
- RS Stock No.:
- 829-6690
- Mfr. Part No.:
- 0215560000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige | |
| Product Type | Feed Through Terminal Block | |
| Number of Levels | 1 | |
| Series | SAK | |
| Voltage | 500V | |
| Cable CSA | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -50°C | |
| Terminal Block Current | 24A | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige | ||
Product Type Feed Through Terminal Block | ||
Number of Levels 1 | ||
Series SAK | ||
Voltage 500V | ||
Cable CSA 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Termination Type Screw | ||
Minimum Operating Temperature -50°C | ||
Terminal Block Current 24A | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
SAK Series Modular Feed Through Terminals
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• Steel clamping yoke for mechanical function;• Copper current bar for electrical function;• No maintenance, vibration-proof screw connection;• Low voltage drop and gas-tight contact point;• Clamping point suitable for a wide range of cross-sections;• Three different locking feet available: for TS32, TS35 or a combination of the two;• Different isolation materials: PA6.6, KrG, KrS;• Large selection of special terminals with various connection systems
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
